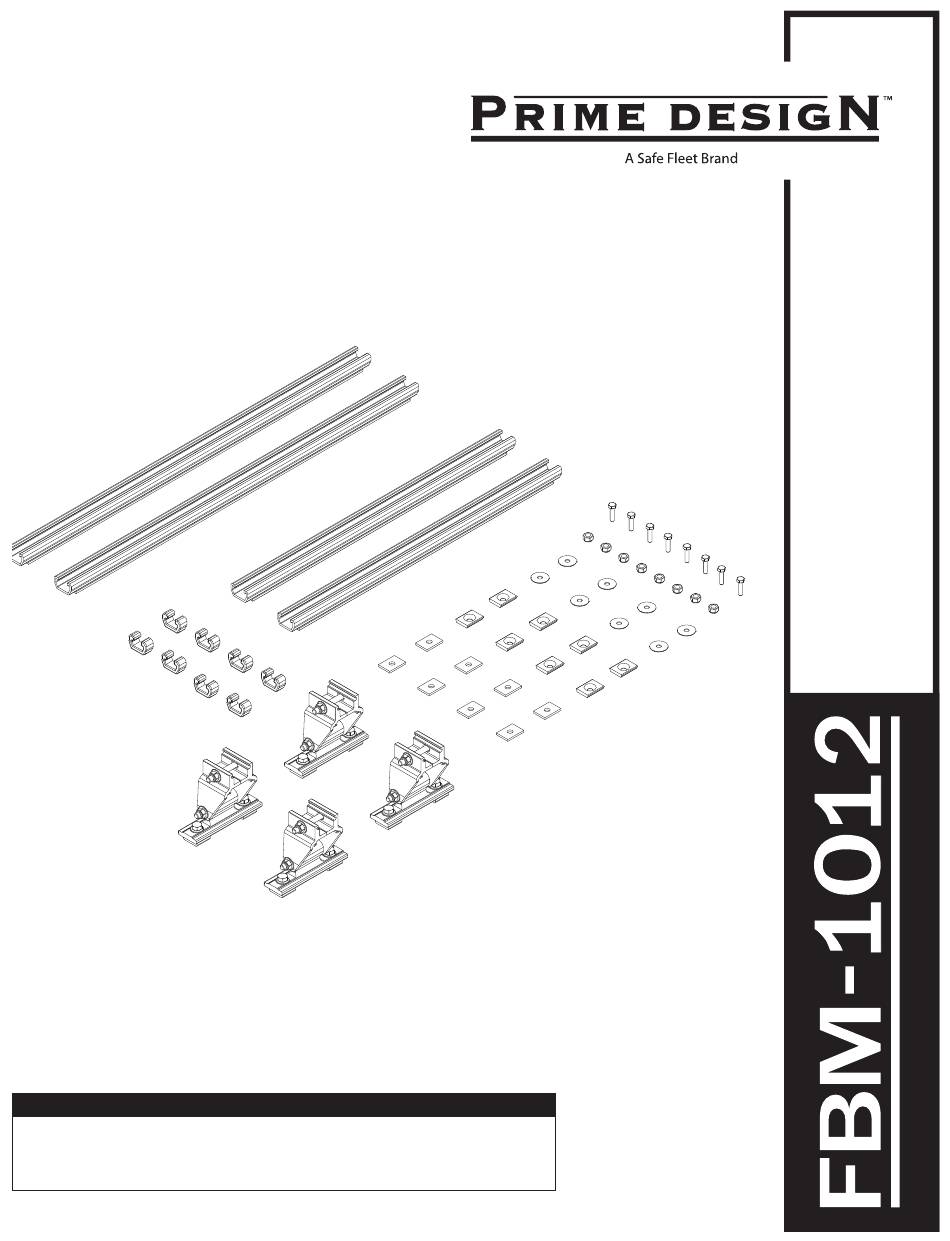

2014+ Ford Transit Connect L1/L2 Universal Base Mounting Kit
Page 2
Packaging Contents
Pages 3-7
Short Wheelbase (L1H1)
Pages 7-10
Medium Wheelbase (L2H1)
PRIME DESIGN, A SAFE FLEET BRAND ▪ Address: 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118
Toll Free: 1.8.PRIME.RACK ▪ Fax: 651-552-1799 ▪ Email: info@primedesign.net ▪ Website: www.primedesign.net
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Safe Fleet Prime Design FBM-1012
Summary of Contents for Safe Fleet Prime Design FBM-1012
- Page 1 Packaging Contents Pages 3-7 Short Wheelbase (L1H1) Pages 7-10 Medium Wheelbase (L2H1) PRIME DESIGN, A SAFE FLEET BRAND ▪ Address: 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 Toll Free: 1.8.PRIME.RACK ▪ Fax: 651-552-1799 ▪ Email: info@primedesign.net ▪ Website: www.primedesign.net...
-
Page 2: Contents Overview
CONTENTS OVERVIEW TWO CROSSBAR CONFIGURATION 1—FBM-1012 ............(Qty 1) Channel Pairs, w/Hardware Kit 20” Channels (2X) 26” Channels (2X) M6 Locknut (8X) M6 x 30MM Bolt (8X) End Caps (8X) Brackets (4X) M6 Sealing Washer (8X) ” Flat Washer (8X) ”... - Page 3 L1 FBM ASSEMBLY SEQUENCE ERGORACK CONFIGURATION ALURACK CONFIGURATION NOTE: Base, Rotation, Crossbar, and Side Rail features are shown for illustrative purposes only. These features are not included with this Base Mounting Kit, and must be purchased separately. L1 FBM-1012 Slide the Bracket Nuts from Step 1.1 into the Front Channels as shown.
- Page 4 Install fastening hardware through the Channels as shown Install Channel Hardware as shown below. then torque the nuts to 60 in-lbs. F r o R i g R e a M6 x 30MM Bolt Flat Washer Loosen Bolt Mounting Sealing Washer Bracket Channel Mounting Plate...
- Page 5 Do not mount the Crossbars to this FBM system at this time. Refer to the respective FEA or AR Assembly Manual(s) included with your chosen rack configuration features. Depending upon the features chosen, you may need to perform a complete feature assembly onto the Crossbars or Side Rails as noted in that feature’s Assembly Manual.
- Page 6 2E.3 Verify the specified distance from the ends of both Mounting Bracket to the ends of both Channels. 2.25” 2E.4 Torque only the Rear Crossbar Mounting Bracket bolts to 90 in-lbs at this time. The Front Crossbar Mounting Brackets will be torqued to specification when designated in the respective Feature (FEA or AR) Assembly Manual.
- Page 7 2A.3 Verify the specified distance from the ends of both Mounting Bracket to the ends of both Channels. 2.25” 2A.4 Torque all Crossbar Mounting Bracket bolts to 90 in-lbs at this time. L2 FBM ASSEMBLY SEQUENCE ERGORACK CONFIGURATION ALURACK CONFIGURATION NOTE: Rotation, Crossbar, and Side Rail features are shown for illustrative purposes only.
- Page 8 L2 FBM-1012 Install fastening hardware through the Channels as shown then torque the nuts to 60 in-lbs. Install Channel Hardware as shown below. F r o R i g R e a Loosen Bolt Mounting Bracket M6 x 30MM Bolt Mounting Plate Flat Washer Foam pad...
- Page 9 L2 CROSSBARS (ERGORACK) CROSSBAR ADJUSTMENT Shown with LH Base, and RH Rotation for illustrative purposes only 2E.1 Front h i c F r o Even Even h i c Rear Even Even Torque all of these 2E.2 Crossbar Clamp nuts to 90 in-lbs 2E.3 Verify the specified distance from the...
- Page 10 L2 CROSSBARS (ALURACK) CROSSBAR ADJUSTMENT Shown with L2 AluRack for illustrative purposes only h i c F r o Center Torque all of these h i c 2A.2 2A.1 Crossbar Clamp nuts to 90 in-lbs. 2A.3 Verify the specified distance from the ends of both Mounting Bracket to the ends of both Channels.
- Page 11 Page Intentionally Left Blank...
- Page 12 USAM-FBM1012-US01 Rev-C 0720...
