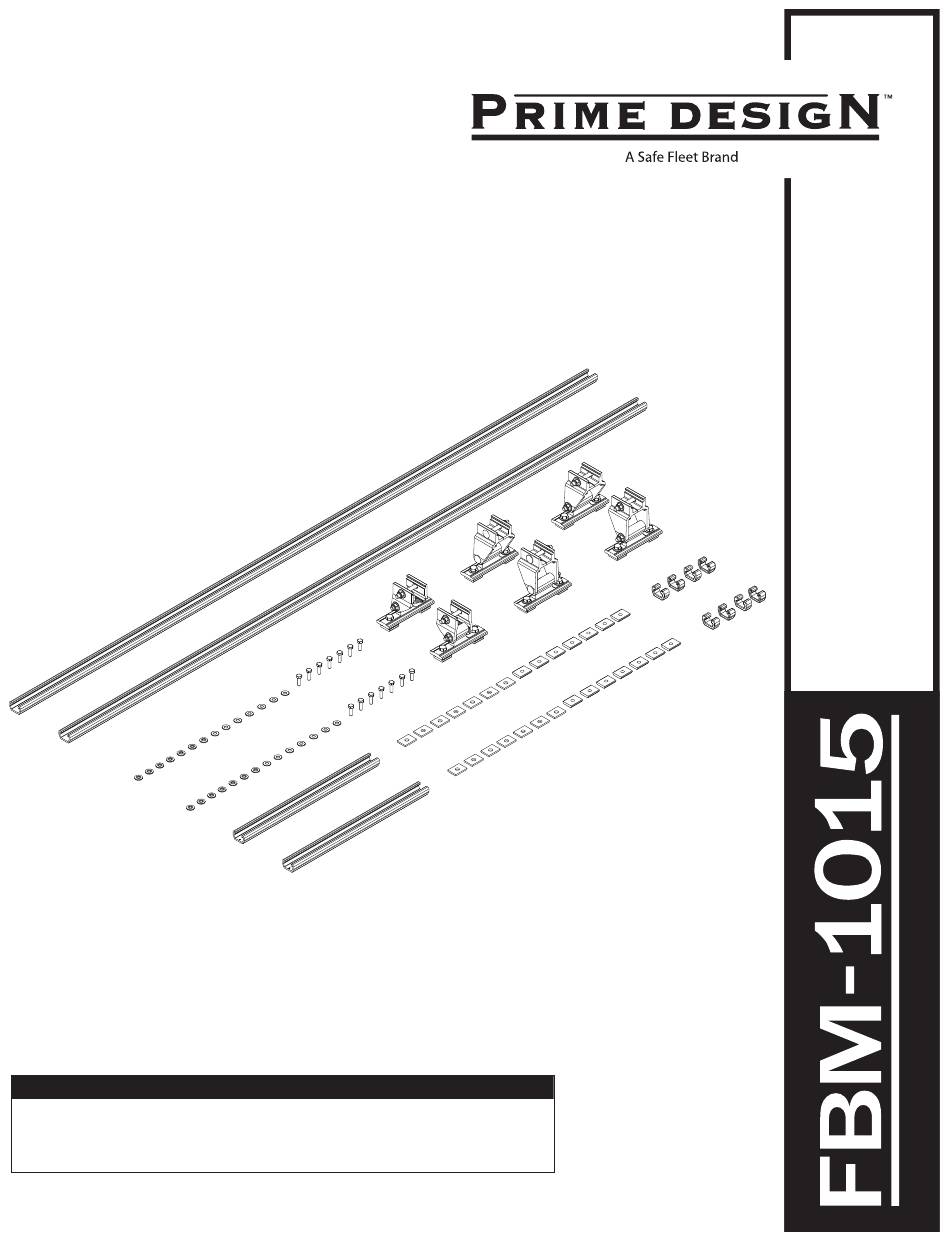

CONTENTS OVERVIEW TWO & THREE CROSSBAR CONFIGURATIONS NOTE: This Manual contains information covering two and three Crossbar configurations. If your model is a two Crossbar configuration (ErgoRack only), disregard all Center Crossbar installation information. 1—FBM-1015 ............(Qty 1) Channels, with Hardware Kit Channels, 15.00”...
Page 3
2—Crossbars (shown for illustrative purposes only) Ordered separately ErgoRack, Gen4 AluRack Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”).
LOW ROOF MEDIUM WHEEL BASE (126.00”) FBM ASSEMBLY SEQUENCE NOTE: Base, Rotation, Crossbar, and Side Rail features are shown for illustrative purposes only. These features are not included with this Base Mounting Kit, and must be purchased separately. MOUNTING BRACKETS CHANNELS Loosen the bolts on the Channel Mounting Brackets.
Page 5
Align the channel with the hole pattern on the roof. Install the Set to distances shown below: Use Dimensions A for 2 Crossbar models. fasteners through the factory roof holes as shown then torque Use Dimensions B for 3 Crossbar models. to 60 in-lbs.
Page 6
CROSSBAR ADJUSTMENT 3E.3 Verify the specified distance from the Front ends of both Rear 6.75” Crossbar Mounting Brackets to the ends of both Channels. 9.00” Center (if equipped) 6.75” h i c 3E.4 Rear 6.00” 3E.4 F r o h i c Torque only the Rear Crossbar Mounting Bracket bolts to 90 in-lbs at this time.
Page 7
CROSSBAR CROSSBARS (ALURACK) ADJUSTMENT Shown with L2 AluRack for illustrative purposes only h i c F r o 3A.1 Center Torque all of these 3A.2 h i c Crossbar Clamp nuts to 90 in-lbs. 3A.3 Verify the specified distance from the ends of both Mounting Bracket to the ends of both Channels.
Page 8
LOW ROOF LONG WHEEL BASE (135.00”) FBM ASSEMBLY SEQUENCE NOTE: Base, Rotation, Crossbar, and Side Rail features are shown for illustrative purposes only. These features are not included with this Base Mounting Kit, and must be purchased separately. MOUNTING BRACKETS CHANNELS Install the Connector Plates, Foam Pads, Mounting Foot Remove the hardware on all Channel Mounting Brackets.
Page 9
Align the channel with the hole pattern on the roof. Install the Install the Connector Plates, Foam Pads, Mounting Foot Brackets, and End Caps in the sequences shown below. fasteners through the factory roof holes as shown then torque to 60 in-lbs. NOTE: If installing the optional Center Crossbar, insert the two Mid Mounting Foot Brackets into each Recommended: install the fasteners in the Front of the...
Page 10
CROSSBARS CROSSBAR ADJUSTMENT Shown with LH/RH Rotation for illustrative purposes only h i c Front F r o 6.75” 3E.1 Center (if equipped) 6.75” h i c Rear 6.00” Torque all of these 3E.2 Crossbar Clamp nuts to 90 in-lbs 3E.3 Verify the specified distance from the...
Page 11
CROSSBAR CROSSBARS (ALURACK) ADJUSTMENT Shown with L3 AluRack for illustrative purposes only h i c F r o Center 3A.1 Torque all of these h i c 3A.2 Crossbar Clamp nuts to 90 in-lbs. 3A.3 Verify the specified distance from the ends of both Mounting Bracket to the ends of both Channels.
Page 12
CENTER CROSSBAR MOUNTS FOR 2 CROSSBAR ERGORACK MODELS ONLY Place the center Crossbar Mounts into the vehicle’s glove box for Where applicable, remove the remaining center future use. Crossbar Mount Hardware if desired. Center Crossbar Mounting Foot Brackets should remain installed for future use or upgrades.
