Communication Ports
The RUGGEDCOM M2200 can be equipped with various types of communication
ports to enhance its abilities and performance. With five available slots, the
RUGGEDCOM M2200 supports a variety of one- or two-port fiber or copper Ethernet
module of various speeds with up to nine Gigabit Ethernet (1 Gbps) ports.

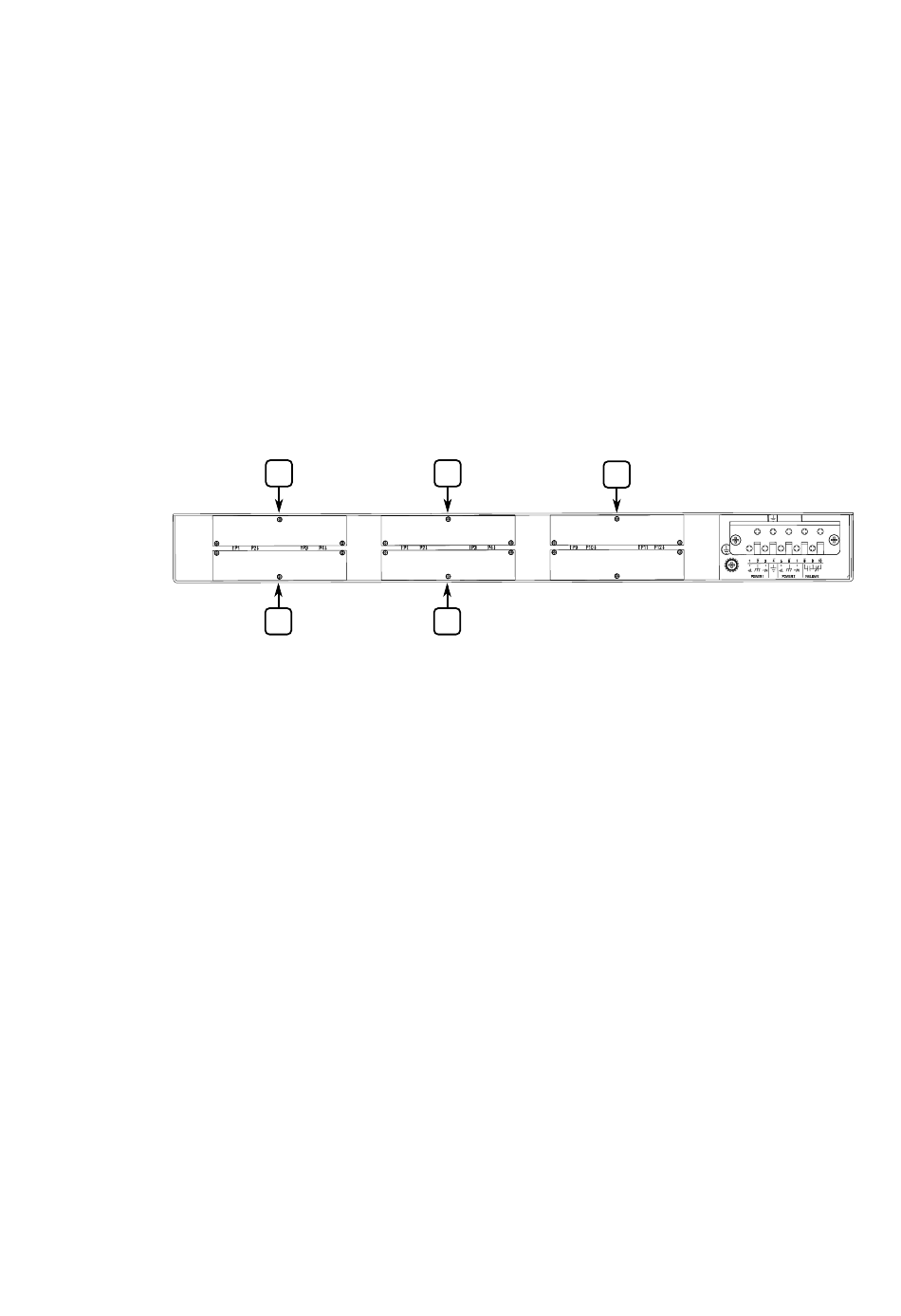

Module Assignment
Figure 4.1
Each type of module has a specific location in the RUGGEDCOM M2200 chassis:
•
•
The exact configuration of the device can be determined by reading the factory
data file through the RUGGEDCOM M2200 user interface. For more information
about how to read the factory data file, refer to the "RUGGEDCOM ROS Configuration
Manual" for the RUGGEDCOM M2200.
Port LEDs
Each communication port is equipped with an LED that indicates the link/activity
state of the port.
RUGGEDCOM M2200
Installation Manual, 11/2022, C79000-G8976-1044-19
1
2
Module Assignment
Slot 5 supports a one-port fiber or copper Ethernet module up to 1 Gbps
All other ports support any combination of fiber or copper Ethernet connectors
up to 1 Gbps
3
5
4
4
21
