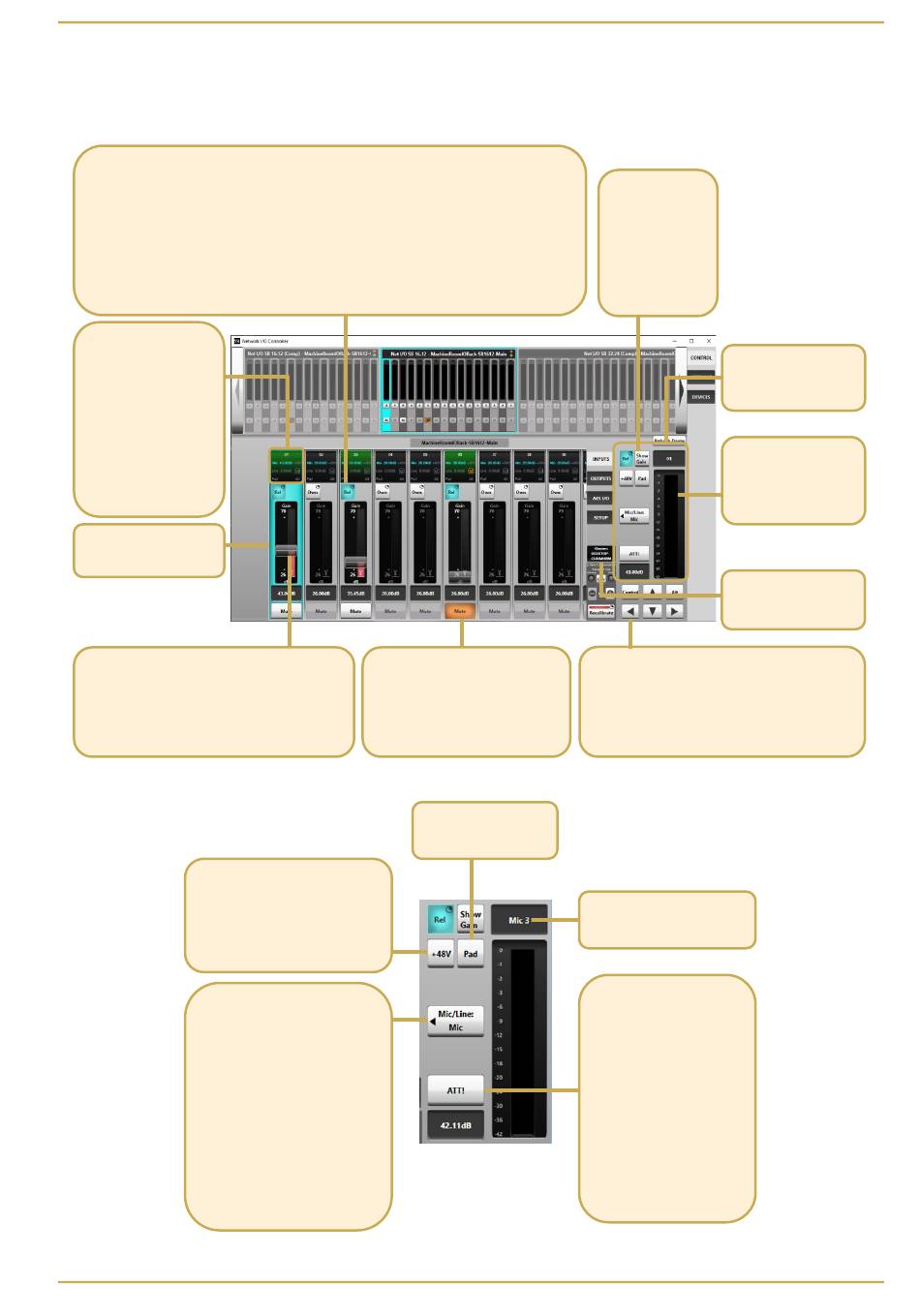

Inputs/Outputs

Select the Inputs, Outputs or AES I/O tab in the Page Select area to view I/O available on the
network.

Inputs

Control Status shows whether the viewer has control of the input's parameters.
individual channel has independent ownership.
Rel in cyan indicates that this input is under the control of the viewer. Press and hold to
relinquish control.
Take indicates that this input is NOT under the control of the viewer. Press and hold to take
control from the owner.
Own indicates that this input is not owned by any controller. Press and hold to take
ownership of this input.
Channel Info shows all
parameters of the
channel at a glance.
The background colour
indicates ownership
status: green for
owned inputs, purple
for inputs owned by
another controller and
black for unowned
inputs.
Selected Channel is
highlighted in cyan.
Fader allows for manual level control via the
slider, keyboard arrow keys, or numeric entry by
clicking the text Gain Value box.
Fader Level Bar is coloured red on microphone
input channels and cyan on line level inputs.

Focus Window

+48V toggles the mic preamp
phantom power.
Selecting Line input will turn off
phantom power.
Mic/Line toggles the appropriate
input gain range and impedance
for mic or line level sources.
Mic inputs have a gain range of
74 dB including the pad. The
available range values are
dependent on the operating level.
Line level inputs have a gain range
of 34 dB. The available range
values are dependent on the
operating level.
Each
Mute mutes the input or output
channel. The mute state is stored in
volatile memory on the unit and all
channels will reset to unmuted if the
unit is repowered.
Pad toggles the
-30 dB mic preamp pad.
Show Gain toggles
the fader into the
Focus Window.
Gain can be
controlled via
mouse, keyboard,
or numeric entry.
Focus Window displays
the available parameters
for the selected channel.
Level Meter shows the
signal level for the
selected channel. A red
clipping indicator is also
provided.
Ownership window
displays the owner of the
selected channel.
Left and Right arrows switch the selected channel.
Up and Down arrows adjust the gain for the
selected channel in discrete 1dB steps.
toggles fine (0.1 dB) gain adjustment and Alt coarse
(3 dB) gain adjustment. These controls are mapped
to the computer keyboard.
Channel Label as entered in
Dante Controller.
ATT! (Attention) toggles the
hardware front panel LED for
swift identification of inputs
or outputs.
Multiple channels can have
Attention active.
Attention can be cancelled by
pressing the ATT! button
again on the selected
channel.
Control
