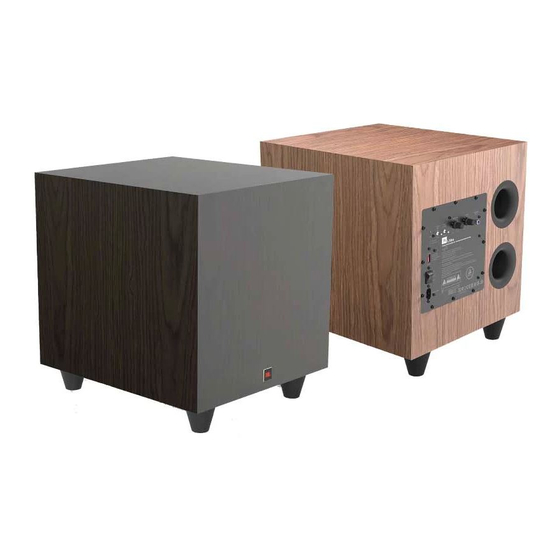

L10CS 10-inch (250mm) 250W RMS Powered
Quick Start Guide
Overview
For more information on the set-up and operation of this product refer to the
product page on the
jbl.com/specialty-audio/
be required feel free to contact customer support at the numbers below.
Inside the US and Canada:
Outside the US and Canada:

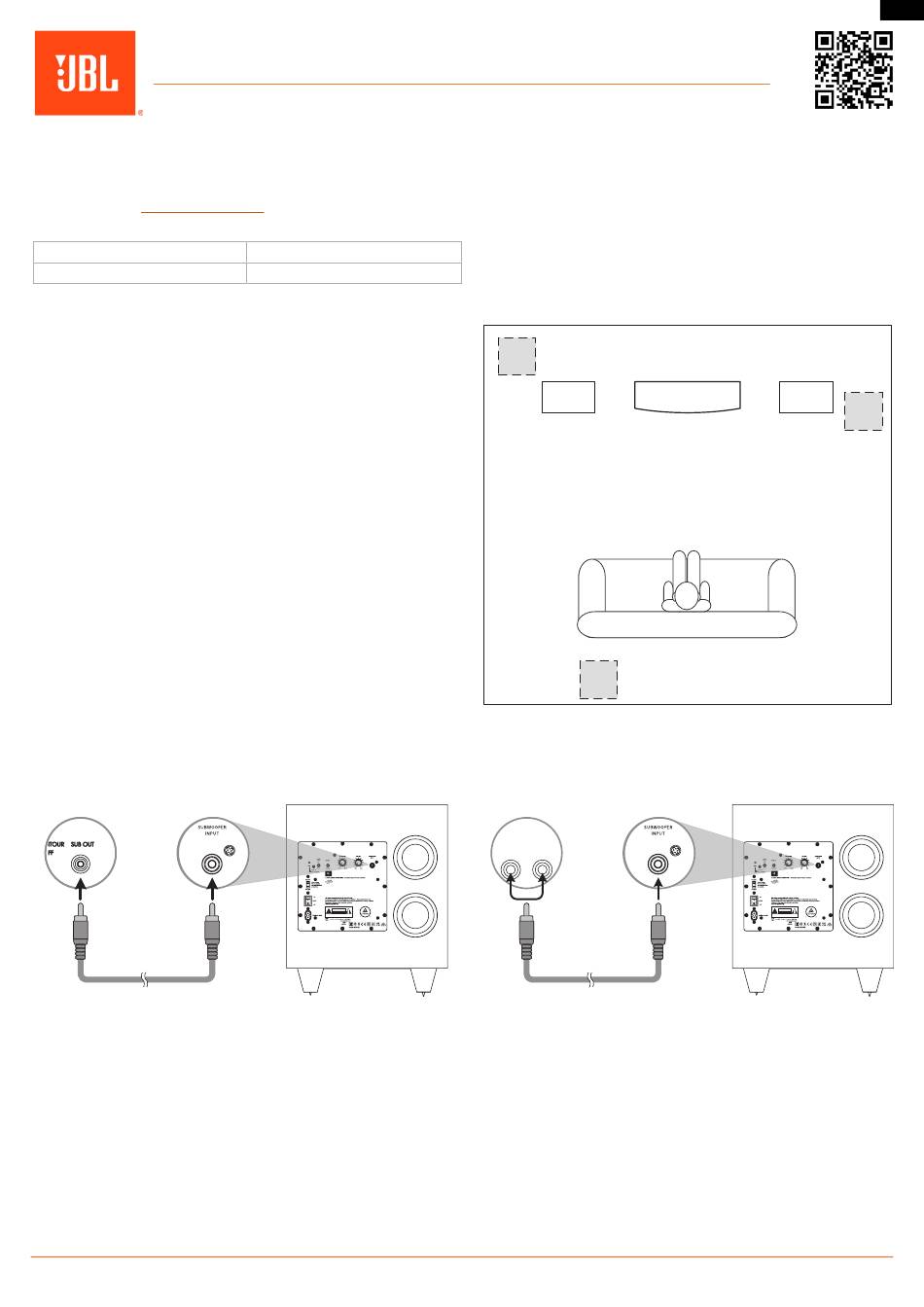

Placement and Positioning
The goal of proper placement is to achieve a smooth, extended bass
response. We strongly recommend that you experiment with placement
before choosing a final location for your subwoofer.
Place next to a wall to increase the amount of deep bass.
Placing in a corner (1) delivers more deep bass.
Note: Placing in a corner (1) also activates room modes which can make the
bass response less smooth.
Placing the subwoofer along the same plane as the left and right
speakers (2) produces the best acoustic integration with the main
speakers.
Placing the subwoofer close to the listening position (3) helps remove
poor bass response caused by room variations.
The best way to determine the location for the subwoofer is by temporarily
placing it in the listening position and playing music with strong bass and
midbass content. Then listen while moving around to the various available
positions for the subwoofer in the room. Putting your ears where the
subwoofer would be placed is best. The best subwoofer location is the one
where you perceive the best bass performance and midbass blend, due to
acoustic reciprocity. Place the subwoofer in that location.
After finding the location that works best, adjust the Crossover, Volume, and
Polarity to fine tune the output of the subwoofer even further.
Wiring and Connections
Single Sub/LFE Out
L10cs
L10cs
L10cs
