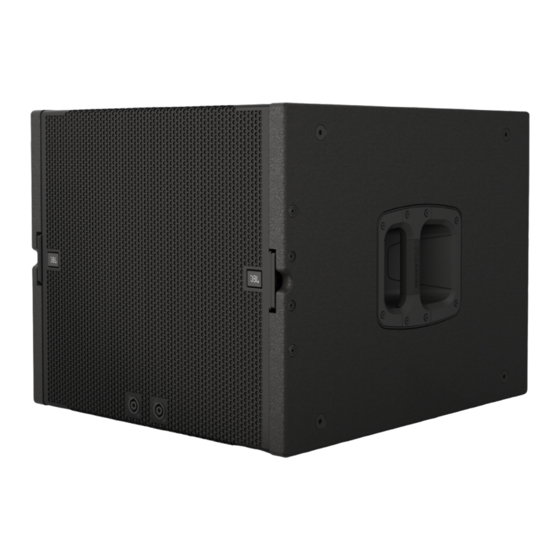

VTX B15 | Rigging Manual 1 - SAFETY 1.1 SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not expose the product to direct rain or sea spray. Clean only with a dry cloth. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus that produce heat.
VTX B15 | Rigging Manual None of the information in this section should be used without first obtaining competent advice with respect to applicability to a given circumstance. None of the information presented herein is intended as a representation or warranty on the part of JBL. Anyone making use of this information assumes all liability arising from such use.
VTX B15 | Rigging Manual 1.7 SYMBOLS The following symbols are used in this document: CAUTION: This symbol gives notice of a potential risk of harm to the individual or the equipment. Instructions marked with this symbol must be strictly followed. TIP: This symbol gives notice of helpful, relevant information about the topic.
VTX B15 | Rigging Manual 2 - MECHANICAL LIMITS The VTX B15 suspension system and accessories comply with the 2006/42/EC Machinery Directive and have been designed following the guidelines of DGUV regulation 17 (BGV-C1) for a minimum safety factor of 4:1. Minimum safety factor requirements are often set by local regulations, and JBL Line Array Calculator 3 (LAC-3) software should always be used to check mechanical limits.
VTX B15 | Rigging Manual 4 - SOFTW ARE 4.1 LINE ARRA Y CALCULA TOR 3 Line Array Calculator 3 acoustical prediction software is used for the design and mechanical validation of VTX Series line array systems. Using LAC-3 is a three-step process. First, venue dimensions are defined using either X/Y/Z coordinates or the fast distance/angle meth- od.
VTX B15 | Rigging Manual 4.2 SUSPENDED ARRA YS Line Array Calculator checks the mechanical safety of suspended arrays and takes into consideration all variables that can affect the mechanical safety and safety factors. The software validates the mechanical stresses on the enclosures, speaker rigging components, and all accessories used as part of an array.
VTX B15 | Rigging Manual 4.3 GROUND-ST ACKED ARRA YS Line Array Calculator checks for the mechanical safety for ground-stacked arrays. The software takes into consideration several vari- ables that can affect the stability of an array, including outside factors such as someone pushing on an array. Based on this data, LAC-3 generates a safety assessment factor and notifies the user of potential mechanical or stability problems.
VTX B15 | Rigging Manual 5 - RIGGING SYSTEM VTX B15 cabinets include a six-point, trigger operated, rigging mechanism that can be deployed to suspend up to 15 cabinets, de- pending on the configuration. The B15 rigging system enables forming either standalone arrays or mixed arrays using A6 full-range cabinets suspended under the B15s.
VTX B15 | Rigging Manual 5.2 RIGGING MECHANISM Each of the six B15 rigging bars incorporates a trigger operated, spring-loaded mechanism. Rigging bars automatically extend upwards once the user pulls the captive trigger located within the recess just below the rigging bar. Once extended, a label is visible to indicate that the link bar is in the extended position.
Page 16
VTX B15 | Rigging Manual When suspending multiple B15 cabinets together, all six rigging points (three per side) should be used for each B15 with the exception of the top cabinet, which connects to the array frame or suspension bar. Each attachment point will use one quick release pin, as illustrated below.
VTX B15 | Rigging Manual 6 - TRANSPORT A TION The VTX B15 ACC accessory kit includes a front face caster board for a single B15 and a protective cover. The ACC is an efficient solution for easy transportation and maximizing truck packs. Because of their small footprint, B15 subwoofers can be stacked on top of other equipment packed in a truck.
VTX B15 | Rigging Manual 6.1 CASTER BOARD INST ALLA TION Two caster board tabs at the front of the B15 are used to secure the front face ACC caster board to the B15. The tabs are retractable and ship from the factory in the retracted position inside the B15. This orientation is ideal when B15s are used in an installation, where the tabs are not needed, but the tabs must be rotated to attach the caster board to the B15.
VTX B15 | Rigging Manual 6.2 CASTER BOARD OVERVIEW The VTX B15 ACC caster board features two spring-loaded sliding pin locks (one on each side), which are used to attach the caster board to a B15 cabinet. The caster board seats on the B15 mounting tabs and is secured by the spring-loaded pin. TIP: The beveled edge on the pin allows you to attach the caster board with a forceful push, rather than needing to pull back the handle on the spring-loaded pin.
VTX B15 | Rigging Manual 6.3 CASTER BOARD INST ALLA TION STEPS: • Slide either of teh ACC caster board mounting pins into one of the mounting tabs on the face of the B15 subwoofer. • Pull back the handle on the other pin mechanism, push the caster board onto the tab and release the handle.
VTX B15 | Rigging Manual 6.4 ST ACKING CASTER BOARDS VTX B15 ACC Caster Boards can be stacked together for storage. The caster board’s handles and wheels were designed to allow stack- ing without having to touch or manually turn the wheels. When the ACC is held by the handle near its edge, gravity orients the wheels downward.
VTX B15 | Rigging Manual 7 - MINI FRAME The VTX A6 MF Mini Frame is a lightweight, compact, and inexpensive array frame intended for suspending VTX A6 and VTX B15 arrays. The three-piece design is comprised of two side arms and one Spreader Bar. The side arms connect to the cabinets, and the Spreader Bar can be pinned to one of the 26 pick-point positions, providing excellent tilt resolution.
VTX B15 | Rigging Manual 7.2 A TT ACHING THE MINI FRAME The Mini Frame is always attached to the front four rigging bars of the top B15 subwoofer in an array. STEPS: • Extend the four front B15 rigging bars by releasing the recessed triggers located just below the rigging bars. •...
Page 25
VTX B15 | Rigging Manual STEPS: • Attach the two side arms to the B15 using the quick release pins attached to the side arms. • Pin the Spreader Bar to the desired pick-point position using the two pins attached to the Spreader Bar. Consult LAC-3 to determine proper hole position.
VTX B15 | Rigging Manual 7.3 SUSPENSION OPTIONS The VTX A8 Mini Frame can be used in single-point configurations using the center shackle position of the Spreader Bar. Alternatively, the two side shackle positions can be used to facilitate dual-point configurations. When a single point is used, the side shackle positions can be used for safety attachment and vice-versa.
B15s flat (straight). B15 CoG VTX A6 MF | Mini Frame 6° 6° Designed in California Manufacturer: Harman Professional, Inc. SKU: JBL-P3255MX WEIGHT: 5.3 kg (11.6 lbs) Made in Mexico 8500 Balboa Blvd., Northridge, CA, 91329 US EXAMPLES: •...
VTX B15 | Rigging Manual 7.5 SUSPENDING B15 CABINETS STEPS: • Install the A6 Mini Frame as outlined in Section 7.2 Attaching the Mini Frame. • Use the hoist to lift the B15 cabinet. • Remove the six pins from the bottom of the cabinet. TIP: Removing the pins at this point is not a requirement.
VTX B15 | Rigging Manual 7.6 CONNECTING B15 CABINETS STEPS: • Lower the flown stack until it rests on the B15 on the ground. • Once stacked, extend all six rigging bars of the B15 cabinet on the ground. TIP: Removing the pins at this point is not a requirement. This can happen before or after the B15 cabinets are stacked together.
Page 30
VTX B15 | Rigging Manual STEPS: • Use the six pins to secure the cabinets. • Lift and repeat steps 1-4 for additional B15s in the array.
VTX B15 | Rigging Manual 7.7 RC500 The Mini Frame can be used in combination with the VTX RC500 Rotating Clamp. The VTX RC500 is a universal truss/pipe adapter designed for vertically suspending speaker arrays from standard truss structures or pipes. The RC500 supports arrays of up to 500 kg (1,100 lbs) and is compatible with array frames that support 1/2 inch shackles, such as the VTX A6 MF.
VTX B15 | Rigging Manual 8 - SUSPENSION BAR The VTX A6 SB Suspension Bar is a lightweight suspension bar for suspending A6 and B15 arrays when the additional functionality of the Mini Frame is not needed. A single Suspension Bar or dual bars can be used, depending on the array configuration and require- ments.
VTX B15 | Rigging Manual 8.2 A TT ACHMENT OPTIONS The Suspension Bar can be connected to either the bottom or the top of a suspended mixed array of VTX A6s and B15s. To attach a Suspension Bar at the bottom of an array, the array attachment tabs will be used in conjunction with the pins from the cabinet. When connecting an SB at the top of an array, the pin from the Suspension Bar will be used.
VTX B15 | Rigging Manual 8.3 A TT ACHING THE SUSPENSION BAR STEPS: • Extend the two center B15 link bars that will be connected to the Suspension Bar. • Pin the Suspension Bar to the link bars.
VTX B15 | Rigging Manual 8.4 SUSPENSION BAR USE CASES The VTX A6 SB Suspension Bar can be deployed in a number of configurations when used with B15 subwoofers. Below are some safe guidelines on use cases. SINGLE SUSPENSION BAR SINGLE SUSPENSION BAR SINGLE-POINT DUAL-POINT | SIDE-BY-SIDE...
VTX B15 | Rigging Manual 8.5 PULL-BACK The VTX A6 SB Suspension Bar can be used for pull-back at the bottom of a B15 array in array configurations requiring a significant amount of downtilt. Either the VTX A6 MF or an additional Suspension Bar can be used at the top of the array as the primary attach- ment point.
VTX B15 | Rigging Manual 8.6 PULL-BACK USE CASES Follow the examples below to safely implement pull-back for B15 arrays using the Mini Frame and Suspension Bar. VTX A6 MF + VTX A6 SB (2) VTX A6 SB (2) VTX A6 SB DUAL-POINT DUAL-POINT QUAD-POINT...
VTX B15 | Rigging Manual 9 - CEILING MOUNT The VTX A6 CM Ceiling Mount accessory allows for a cost-effective way to suspend a VTX B15 Subwoofer from a capable structure in a fixed installation scenario. STEPS: Using the provided mounting holes, secure the A6 CM to a structure. Refer to the A6 CM Spec Sheet for bracket spacing. •...
VTX B15 | Rigging Manual 10 - EYEBOL T INST ALLA TION The B15G is acoustically the same as the B15 but designed without the integrated rigging system. This reduces weight and unneces- sary components for applications where portable rigging hardware is unnecessary. Instead, the B15G offers integrated M10 suspension points, making it ideal for fixed installations.
VTX B15 | Rigging Manual 11 - POLE MOUNT A TT ACHMENT The B15 includes a standard M20 pole mount plate for attaching standard extension rods or other JBL supported acaccessories, like Base Plates. In this configuration, a load of up to 45 kg (100 lbs) can be placed on the extension rod as a static vertical load. For more information on the A6 Base Plate configuration limits, refer to the VTX A6 Rigging Manual.
VTX B15 | Rigging Manual 12.4 - VTX RC500 137 mm (5.4 in) 128 mm (5.0 in) 254 mm (10.0 in) TECHNICAL SPECIFICA TIONS PHYSICAL Construction : High-grade steel with anti-corrosion coating Finish : Black powder coat Working Load Limit 500 kg (1,100 lbs) Dimensions (H x W x D) 254 mm x 128 mm x 137 mm...
VTX B15 | Rigging Manual 12.5 VTX B1 GND FRONT/BACK 102 mm (4.0 in) 127 mm (5.0 in) LEFT/RIGHT 38 mm (1.5 in) TECHNICAL SPECIFICA TIONS PHYSICAL Construction : High-grade steel with anti-corrosion coating Finish : Black powder coat Dimensions (H x W x D) 38 mm x 102 mm x 127 mm (1.5 in x 4.0 in x 5.0 in) Net Weight :...
VTX B15 | Rigging Manual 13 - CONT ACT INFORMA TION UNITED ST A TES OF AMERICA HARMAN Professional Solutions U .S .A . Technical Support 8500 Balboa Blvd. +1 (844) 776-4899 Northridge, CA 91329 HProTechSupportUSA@Harman.com www.jblpro.com +1 (844) 776-4899 www.jblpro.com...
