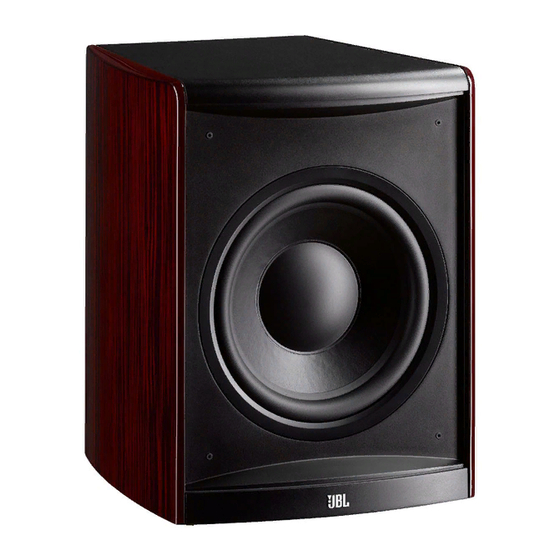

- Page 1 ® JBL LS SERIES LS120P (120V) OWNER’S GUIDE...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 14. Refer all servicing to qualified service personnel. Servicing is 2. Keep these instructions. required when the apparatus has been damaged in any way, such 3. Heed all warnings. as power supply cord or plug is damaged, liquid has been spilled 4. -
Page 3: Unpacking The Speakers
For more than 60 years, JBL has been providing audio equipment for concert halls, recording studios and movie theaters around the world, and has become the hands-down choice of leading recording artists and sound engineers. With the JBL LS Series, innovative technologies such as pure-titanium compression drivers, Elliptical Oblate Spheroidal ™... -
Page 4: Controls And Connections
CONTROLS AND CONNECTIONS REAR PANEL 0 Phase Switch 1 LFE/Normal Selector 2 Subwoofer-Level Control 3 Crossover Adjustment 4 Power Indicator 5 Line-Level/LFE Input 6 Power Switch LS120P... -
Page 5: System Connections
SYSTEM CONNECTIONS If you have a Dolby ® Digital or DTS ® receiver/processor with a low-frequency-effects (LFE) or subwoofer output: Set LFE/Normal switch to “LFE.” LS120P If your receiver/processor does not contain a Dolby Digital or DTS processor, but has subwoofer outputs: Set LFE/Normal switch to LS120P “Normal.”... -
Page 6: Operation
OPERATION MAINTENANCE AND SERVICE POWER ON The enclosure may be cleaned using a soft cloth to remove fingerprints or to wipe off dust. Plug your subwoofer’s AC cord into a wall outlet. Do not use the outlets on the back of the receiver. The grille may be gently vacuumed. -
Page 7: Specifications
SPECIFICATIONS LS120P Frequency Response 25Hz – 150Hz Amplifier RMS Power 400 Watts Amplifier Peak Dynamic Power 700 Watts † Crossover Frequency 50Hz – 150Hz; 24dB/octave, continuously adjustable Driver 12" (300mm) PolyPlas™ Dimensions (H x W x D) 19-7/16" x 14-3/4" x 16-3/4" (enclosure only) (493mm x 375mm x 425mm) Dimensions (H x W x D) - Page 8 Features, specifications and appearance are subject to change without notice. JBL is a trademark of Harman International Industries, Incorporated, registered in the United States and/or other countries. Elliptical Oblate Spheroidal, PolyPlas and Pro Sound Comes Home are trademarks of Harman International Industries, Incorporated.
