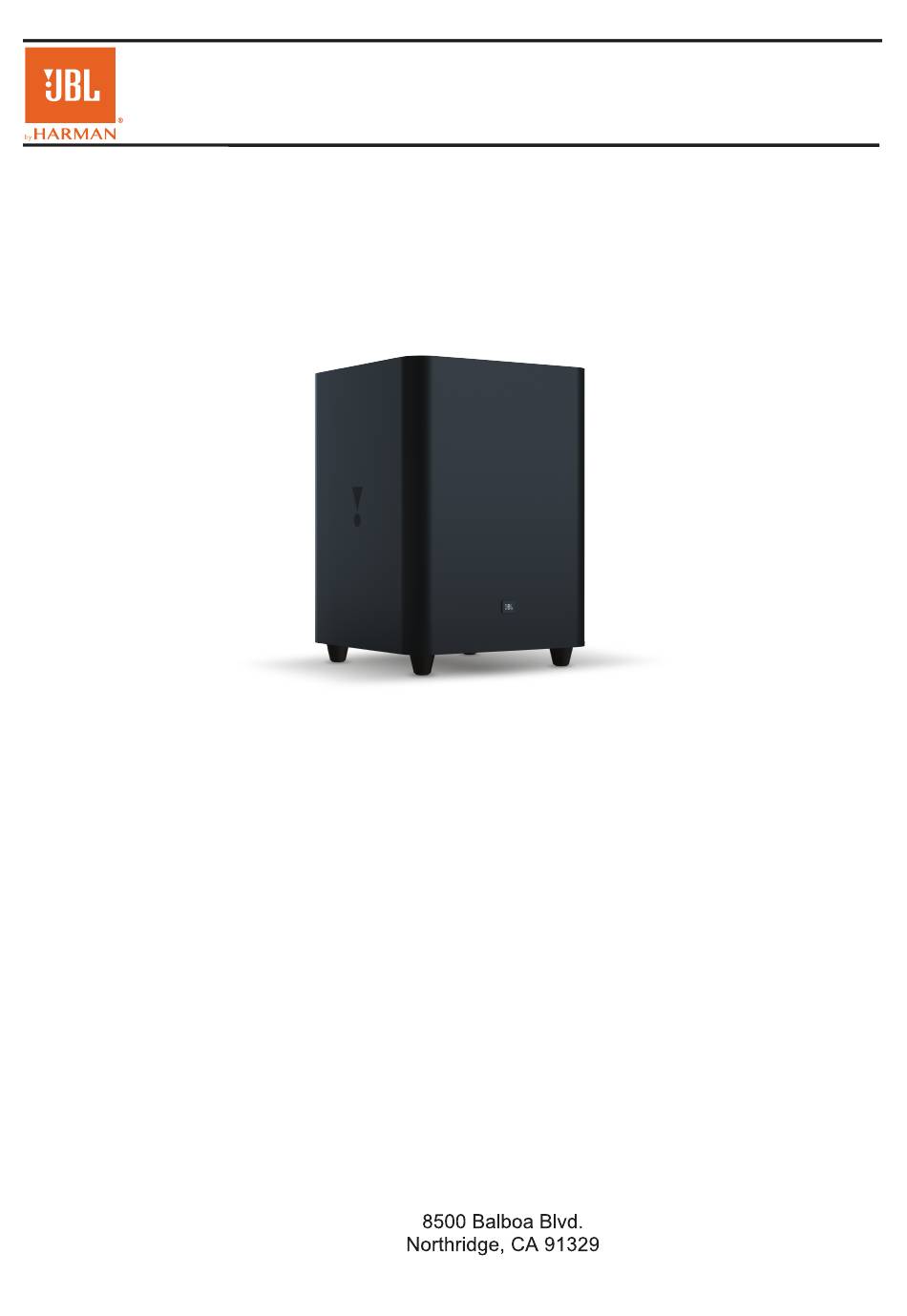

JBL SW10
Wireless Subwoofer
SKU: JBLSW10BLKAS, JBLSW10BLKEU, JBLSW10BLKAM
Released by Global Quality
CONTENTS
Safety Instruction, Warning & Notes
Troubleshooting Chart
Schematic & Layout Diagrams
Wiring Diagram
Set Mechanical Exploded View
Service Manual
harman/kardon, Inc.
2
3
6
7
8
9
10
20
21
22
23
Ver. 1.0 Oct. 2019
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Harman JBL SW10
Summary of Contents for Harman JBL SW10
- Page 1 Service Manual JBL SW10 Wireless Subwoofer SKU: JBLSW10BLKAS, JBLSW10BLKEU, JBLSW10BLKAM CONTENTS Technical Specifications Safety Instruction, Warning & Notes Software Upgrade Procedure Troubleshooting Chart Set Block Diagram Schematic & Layout Diagrams Wiring Diagram Set Mechanical Exploded View Dismantling Instructions Spare Parts List Revision List Ver.
- Page 3 Contact your local waste management officials for information NOTE: Changes or modifications not expressly approved regarding the environmentally sound collection, recycling and by Harman could void the user’s authority to operate the disposal of used batteries. equipment. To remove the batteries from your equipment or remote...
- Page 4 Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field effect transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage caused by static electricity. 1.
- Page 5 SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.).
- Page 6 Software Upgrade Procedure JBL SW10 need to upgrade with Bar together, need to connect with bar first, use BAR3.1 for example: ...
- Page 7 SUB cannot work SUBcannotwork Check the TX is Normal (in the bar)? Yes or ReplacetheTXmodule. not? Check the White pair LED is Normal (in the Replace the RX module and 8pin SUB)?Yesornot? line. CheckfromAMboardtheU3isnormal? ReplacetheU3. （STB_3.3V） ReplacePCBAforAMboard....
- Page 8 Set Block Diagram Syncomm Module PBTL Audio Processor IA9Q5 S83D I2C/I/Os TAS5534 TAS5614LA PW_LOW LEDs(Y/W) AUX IN PAIRING KEY DC-DC DC-DC SYS_3.3V POWER STB_12V STB_3.3V SY8292 TPS562200 Board SYS_12V 34V for AMP...
- Page 9 Wiring Diagram – SUB...
- Page 10 Schematic Diagrams - POWER SUB R511 option T501 PQ3230 HER203G/2A/200V R501 C501 BD501 Alternative 222/1000V R543 R503 C502 34V/4A peak 6.4A CE501 CE509 47K/2W 472/1kv C503 D502 20A/300V XS501 120uF/450V 120uF/ 450V KBU610 1:+34V R544 R505 R506 R507 R508 C504 C505 6.6MH 2:+34V...
- Page 11 Schematic Diagrams - KEY SUB 8PIN/1.0mm STB_3V3 XP503 P_KEY Lk_LED TB_LED DATA STB_3V3 STB_3V3 Q7 NC/PNP_3CG3906M NC/2K JACK1 N/R70 NC/10K DATA NC/4.7K P_KEY Lk_LED NC/NPN_3DG3904M MP3 JACK <Description> TS-1307D WHITE_LED ORANGE_LED LED1 LED_ORANGE+WHITE...
- Page 12 Schematic Diagrams -AMP SUB Reference circuit01-S301BU-AM300 PVDD_34V STB_12V SY8292 10uH/2A 0.1uF/50V/X7R POWER INPUT SS26/60V/2A 300K/1% NC/56 100K 1uF/50V/X7R 100uF/50V PVDD_34V 15.4K/1% NC/330pF/50V/X7R 1000pF/50V/X7R 0.1uF/50V/X7R PW_LOW 7PIN/2.0mm VOUT=0.6V*(1+300K/15.4K)=12.3V SYS_12V STB_12V STB_3V3 P_AP2309 SYS_3V3 P_AP2305 PW_LOW 0.1uF/16V/X7R 0.1uF/25V/X7R STB_12V 增加 0.1uF/16V/X7R 0.1uF/25V 100K STB_3V3 100K...
- Page 13 Schematic Diagrams -AMP SUB SYS_3V3 STB_3V3 STB_3V3 STB_3V3 R128 R129 8PIN/1.0mm R130 R131 Q6 NC/N_2SK3018 N_2SK3018 PAIR_KEY PAIR_KEY Link_LED AUX_DATA 5534_SDA Link_LED STB_LED STB_LED R132 AUX_CLK AUX_DATA NC/N_2SK3018 R140 NC/0 N_2SK3018 AUX_CLK 5534_SCL R133 R141 NC/0 SYS_3V3 R138 R139 4.7K 4.7K AMP_FAULT AMP_FAULT...
- Page 14 Schematic Diagrams - AMP SUB P_3V3 4700pF/50V/X7R 4700pF/50V/X7R P_3V3 1000/300mA SYS_3V3 TAS5534 PWM_HPM_L PWM_P_6 C39 C40 0.047uF/10V/X7R 0.047uF/10V/X7R PWM_HPP_L PWM_M_6 PWM_HPM_R PWM_P_5 PWM_HPP_R PWM_M_5 AVSS VR_PWM 0.1uF/16V/X7R PLL_FLTM AVSS_PWM PLL_FLTP AVDD_PWM NC/4.7K SUB+ 4.7K NC/10K VR_ANA PWM_P_8 SUB- NC/4.7K AVDD PWM_M_8 ASEL_EMO2 PWM_P_7...
- Page 15 Schematic Diagrams -AMP SUB PVDD_34V SYS_12V 820uF/50V 0.1uF/50V/X7R 0.1uF/25V 10uF/25V C56 0.033uF/50V/X7R GVDD_AB BST_A C55 0.033uF/50V/X7R BST_B SUB- SUB- OC_ADJ LAYOUT NOTE LAYOUT NOTE SUB+ SUB+ PLACE ON PLACE ON VALID SPK JACK SIDE COMPONENT SIDE AMP_FAULT RESET AMP_FAULT 10uH/6.5A SUB- VALID INPUT_A...
- Page 16 Layout Diagrams - AMP SUB...
- Page 17 Layout Diagrams - AMP SUB...
- Page 18 Layout Diagrams - POWER LAMP SUB...
- Page 19 Layout Diagrams - POWER LAMP SUB...
- Page 20 SAP Description Usage Part Number Pos. No. 42-105200-03001 10" WOOFER SW10 56-SB31E1-0HAB1 FOOT BRACKET SW10 59-252580-000B1 RUBBER FOOT SW10 08-SB310U-BP0 GUIDE DUCT ASSY SW10 BUTTON ASSY SW10 10+18 08-HMSB31-000 POWER SOCKET ASSY SW10 08-SB310U-AC1 AMP BOARD SW10 08-SB310U-AM0 LAMP BOARD SW10 08-SB310U-KE0 08-SB310U-PW0 POWER BOARD SW10...
- Page 21 DISMANTLING INSTRUCTIONS 1. Remove 8pcs screws on the back cover, then carefully separate the back cover and remove the speaker cable, take off the back cover. 2. Disconnect the 3pcs cables of the boards, remove 5pcs screws of the power board and take off the power board carefully, remove the 4pcs screws of the AMP board and take off the AMP board.
- Page 22 Spare Parts List Brand Product Part Number SAP Description Usage Pos. Name 42-105200-03001 10" WOOFER SW10 SW10 56-SB31E1-0HAB1 FOOT BRACKET SW10 SW10 59-252580-000B1 RUBBER FOOT SW10 SW10 GIFT BOX AM SW10 76-307500-0ATB5 SW10 GIFT BOX AS SW10 76-307500-0ATB3 SW10 76-307500-0ATB2 GIFT BOX EMEA SW10 SW10 46-KL016T-03J...
- Page 23 REVISION LIST Version 1.0 *Initial release for JBL SW10 2019-10...
