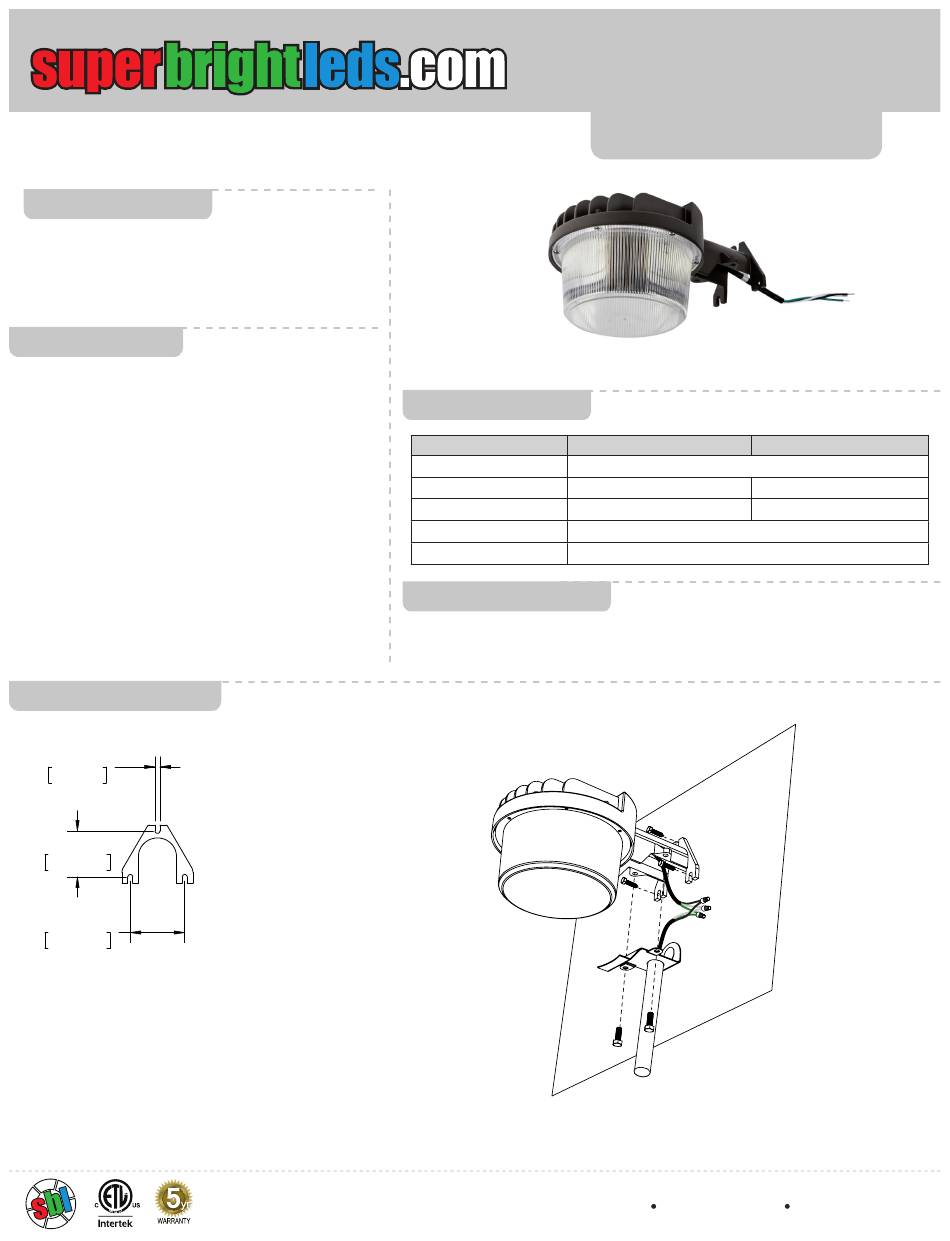

superbrightleds DDAL K Series User Manual

Important: Read all instructions prior to installation.
Dusk-to-Dawn Area Light

Parts Included

- Dusk-to-Dawn Area Light
- Pole Mount Bracket
- Wall Mount Bracket
- Hardware Kit

Safety and Notes

• Product should be installed by a certified electrician in
accordance with applicable national, state, and local
building and electrical codes.
• To reduce the risk of electric shock, ensure that the main
power source and circuit breakers are switched off before
performing any installation or wiring procedures.
• Avoid looking directly into the lamp when illuminated.
• Ensure all mounts are securely attached and will support
the weight of the fixture. Failure to properly support
the fixture may result in damage or injury, for which the
manufacturer does not assume responsibility.
• Burn Hazard—do not touch light housing when light is on.
Allow housing to cool before handling.
Wall Mount Installation¹
1. Measure mounting flange and drill three 5/32" pilot holes.
.25in
6.25mm
2.28in
57.99mm
2.70in
68.45mm
2. Partially thread the bottom two lag screws in place.
3. Make all electrical connections. Wire should pass through
bottom or rear conduit bracket knockout using an appropriate
2.50in
strain relief (not included).
63.50mm
4. Attach conduit bracket to light.
5. Place light over to lower lag screws and install third lag screw,
then tighten all lag screws.
¹DDAL-xKx-LBRS shown, DDAL-xKx-SBRS mounts similarly
1.75in
44.45mm
5yr

Specifications

Model
Input Voltage
Input Power
Input Current
Environmental Rating
Operating Temperature

Photocell Operation

Preinstalled photocell sensor switches light on when ambient light is
below 10–20 lx, and off when ambient light goes back above 25–35 lx.
Wall Mount Conduit Bracket
CONDUIT KNOCKOUT
.86in
21.84mm
Pole Mount Bracket
4400 Earth City Expy, St. Louis, MO 63045
User Manual
DDAL-xKx-xBRS
WIFI-CON
DDAL-40K35-LBRS
DDAL-xK35-xBRS
120–277 VAC
35 W
0.29 A (292 mA) @120 VAC
IP64
-40°–122° F (-40°–50° C)
866-590-3533
DDAL-xK70-xBRS
70 W
0.58 A (583 mA) @120 VAC
