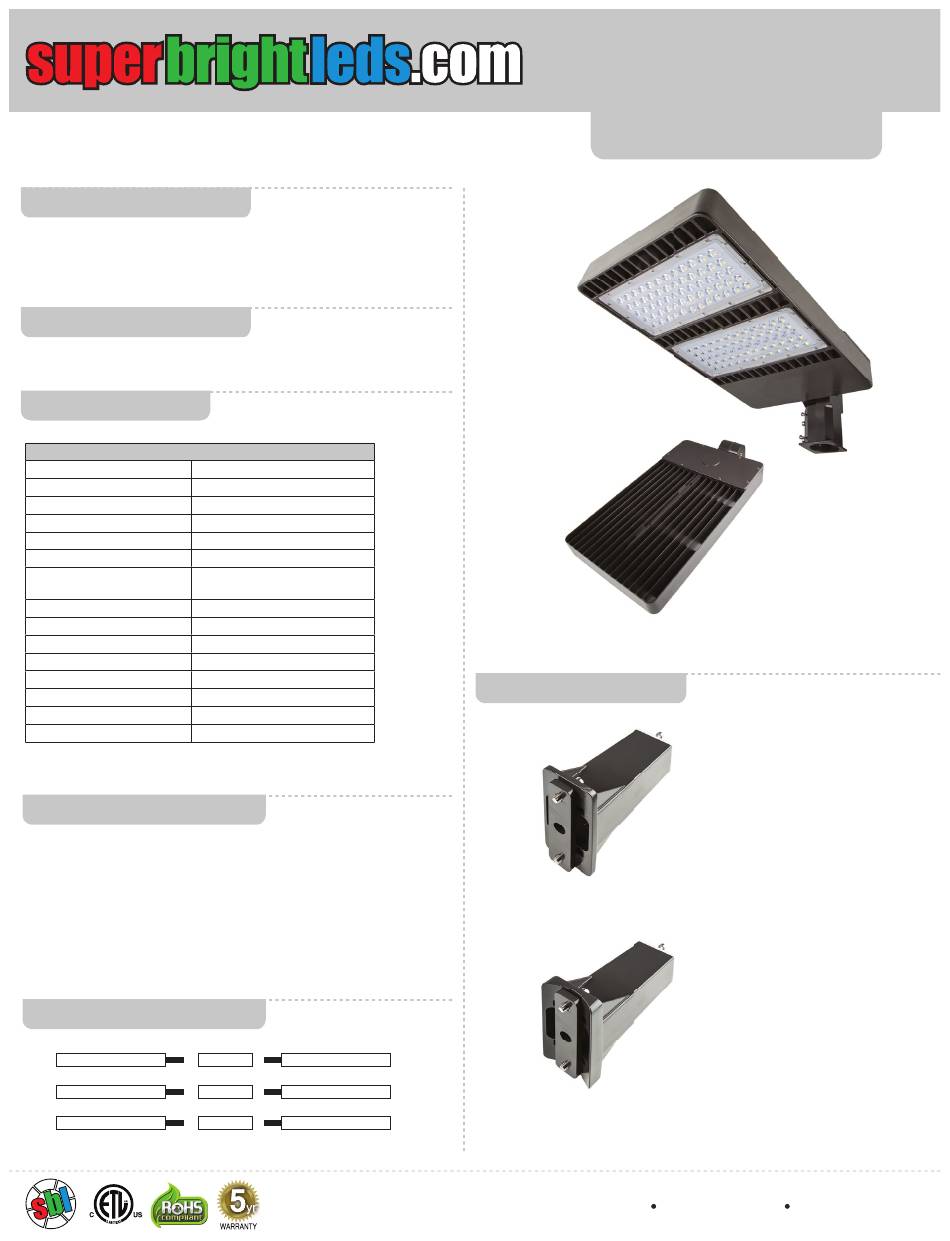

superbrightleds APL-NW300-2048 User Manual

Important: Read all instructions prior to installation.
300W LED Shoebox Area and Parking Lot Light

Included Parts

1 - 300 Watt Area and Parking Lot Light (APL-NW300-2048)
1 - Instructional Sheet
1 - Slip Fit Bracket
1 - Hardware

Optional Accessories

Square Mount Fixed Arm Kit (SBAL-FALS)
Round Mount Fixed Arm Kit (SBAL-FALR)
Specifi cations
APL-NW300-2048
Intensity 34000 lm
Replacement For 700 Watt HID
Total Power Consumption 300 Watts
Operating Voltage Range 200~480 VAC
Beam Angle 135 x 85degree
LED Type Samsung 3535 SMD
Dimensions 13.5in W x 23.0in L x 2.6in H
(36.7cm x 28.6cm x 54cm)
Color Temperature 5500 K
CRI 84
Operating Temperature -22~113°F (-30~45 °C)
IP Rating Weatherproof IP66
LED Lifetime 50,000 Hours
Fixture Weight 24 lbs 5.6 oz (11.04Kg)
Standards and Certifi cations ETL / RoHS
Warranty 5 Years

Installation Instructions

1. Remove power prior to installation.
2. Choose mounting method and preassemble light to
mounting bracket.
3. Secure fi xture with mounting bracket to mounting surface.
4. Connect wiring to power supply. Black to Line, White to
Neutral, and Green to Ground.
5. Restore power to circuit to test function then aim fi xture.

Wiring Diagram

Line
Neutral
N
Ground
GND
Black
L L
White
N
Green
GND
Optional Accessories
Rev Date: V1 09/22/2016
4400 Earth City Expy, St. Louis, MO 63045
User Manual
Part Number:
APL-NW300-2048
Top View
APL-FALS
Square Mount
Fixed Arm Kit
HPAL-UB
Rount Mount
Fixed Arm Kit
866-590-3533 superbrightleds.com
