superbrightleds PLLD Series User Manual

Important: Read all instructions prior to installation.

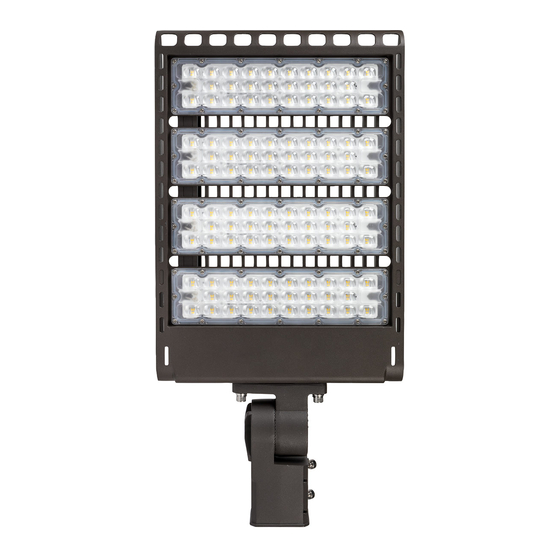

LED Dimmable Parking Lot Light
Product
Mounting Options
Knuckle Mount Slip Fitter Kit (PLL-KM)
Wall Mount Kit (PLL-WM)
Safety and Notes
• This product should be installed by a fully
certified electrician in accordance with
local building and electrical codes.
• Due to risk of electric shock, ensure
that the main power source and circuit
breakers are switched off before
performing any installation or wiring
procedures.
• Failure to properly support the fixture
during installation may cause damage or
injury, for which the manufacturer is not
responsible. Ensure the light bracket/eye
bolt is securely mounted and will support
the weight of the fixture.
Universal Arm Mount Kit Round/Square Pole (PLL-PM)
Rev Date: V2.0 1/02/2019
4400 Earth City Expy, St. Louis, MO 63045
User Manual
Part Number:
PLLD Series
Wiring Diagram
Line
Line
L
L
Neutral
Neutral
N
N
Ground
Ground
GND
GND
Dim (+)
Dim (+)
+
+
Dim (-)
Dim (-)
-
-
Trunion Mount Kit (PLL-TM)
866-590-3533
Black
Black
L
L
White
White
N
N
Green
Green
GND
GND
Purple
Purple
+
+
Gray
Gray
-
-
superbrightleds.com
