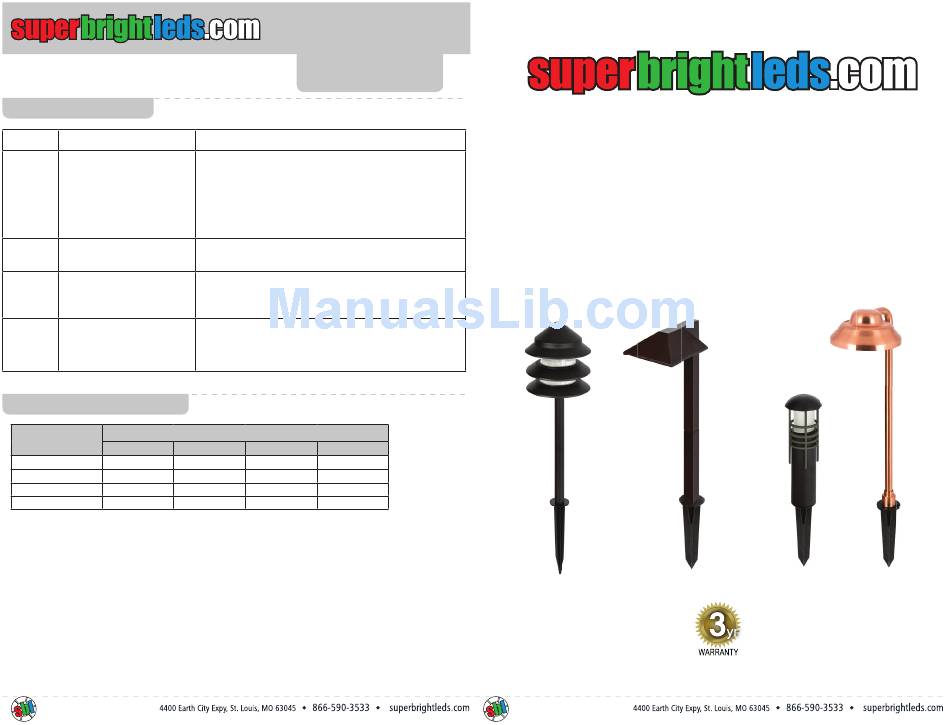

superbrightleds PLTT-WW1BK Installation Manual

Important: Read all instructions prior to installation.
LED Low Voltage Path Lights

Trouble Shooting

Problem Possible Cause
Fixture does 1. There is no power to 12V power
not light supply.
2. The quick connector does not
make contact with wires.
3. The primary landscape wire is not
connected to 12V power supply.
4. There is a disconnection in prima-
ry landscape wire.
5. Minimum load not exceeded.
Light fl ickers 1. There is a loose connection with
(one fi xture) quick connect on primary land-
scape wire.
Light fl ickers 1. There is a loose connection to 12V
(all fi xtures) power supply.
2. Minimum load not exceeded.
Light is dim 1. Maximum load of 12V power
supply has been exceeded.
2. Recommended distance per land-
scape wire guage exceeded.
* For superbrightleds.com technical help call 866-590-3533 or use our online chat service.

Power Load Guide

Power Supply
Wattage @ 12 VAC
PLTT-WW1BK PLOS-WW1BR PLMB-WW1BK PLOS-WW3CU
20 W 8 12
50 W 22 32
100 W 44 64
200 W 88 128
Rev Date: V2.0 05/31/17
User Manual
Part Number:
PLTT-WW1BK
PLOS-WW1BR
PLMB-WW1BK
PLOS-WW3CU
Solution
1. Check the outlet to 12V power supply and ensure that a breaker or GFCI
circuit has not been tripped.
2. Check the wiring of quick connector that it is screwed tightly, piercing
through wire insulation to make solid contact with wire conductors.
3. Check primary landscape wire connection to 12V power supply.
4. Follow wires from fi xture to 12V power supply to ensure a continuous run
and/or follow wires between problematic fi xture and working fi xture.
5. Ensure that your power supply does not have a minimum load requirement.
Consult the power supply specifi cations or manual.
1. Tighten quick connects, and ensure contacts are piercing through wire
insulation to make solid contact with wire conductors.
1. Disconnect power to 12V power supply and ensure primary landscape wire
connections are securely fastened and not in contact with other wire.
2. Ensure that your power supply does not have a minimum load requirement.
Consult the power supply specifi cations or manual.
1. Check for other lights or other load on same system and/or increase 12V
power supply wattage.
2. Increase primary landscape wire gauge size to recommended guidelines.
* For superbrightleds.com technical help call 866-590-3533
Max Fixtures
8 3
22 8
44 17
88 35
LED Low Voltage Path Lights
Installation Manual
Rev Date: V2.0 05/31/17
