Important: Read all instructions prior to installation.
Mini LED Wall Pack
5.33in
2.90in
135.48mm
73.72mm

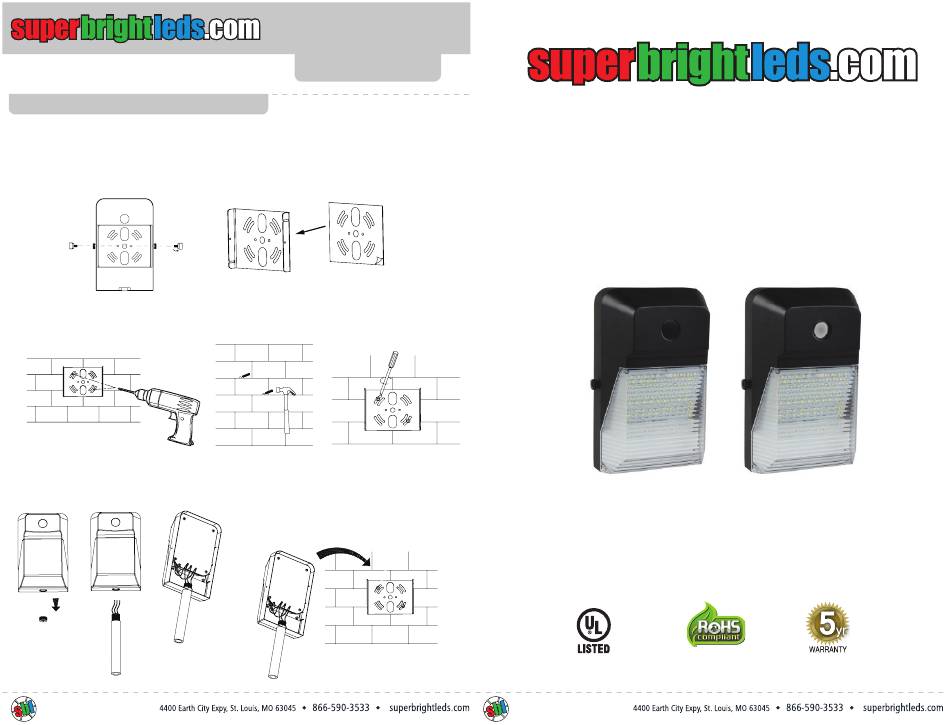

Wall and Conduit Installation Instructions
1. Remove power from circuit.
2. Remove 2 plastic thumb screws from both sides of the light. Remove
8.61in
218.81mm
mounting bracket from light. Peel adhesive fi lm from Foam Gasket and
5.05in
128.19mm
stick to mounting bracket, while lining up the cut-outs.
4.84in
122.94mm
3. Drill 2 holes on the wall using bracket as a guide for holes. Drive wall anchors
into holes. Attach mounting bracket to wall using 2 screws (not provided).
4. Remove knockout from bottom of light. Pull wires from conduit through
knockout and make wire connections to main supply. Attach conduit
onto light.
Rev Date: V1 10/13/2017
User Manual
Part Number:
MWP-40K20, MWP-40K20-S
MWP-50K20, MWP-50K20-S
5. Attach light to bracket and
tighten 2 plastic thumb screws.
Mini LED Wall Pack
User Manual
Part Number:
MWP-40K20, MWP-40K20-S, MWP-50K20, MWP-50K20-S
Rev Date: V1 10/13/2017
5yr
