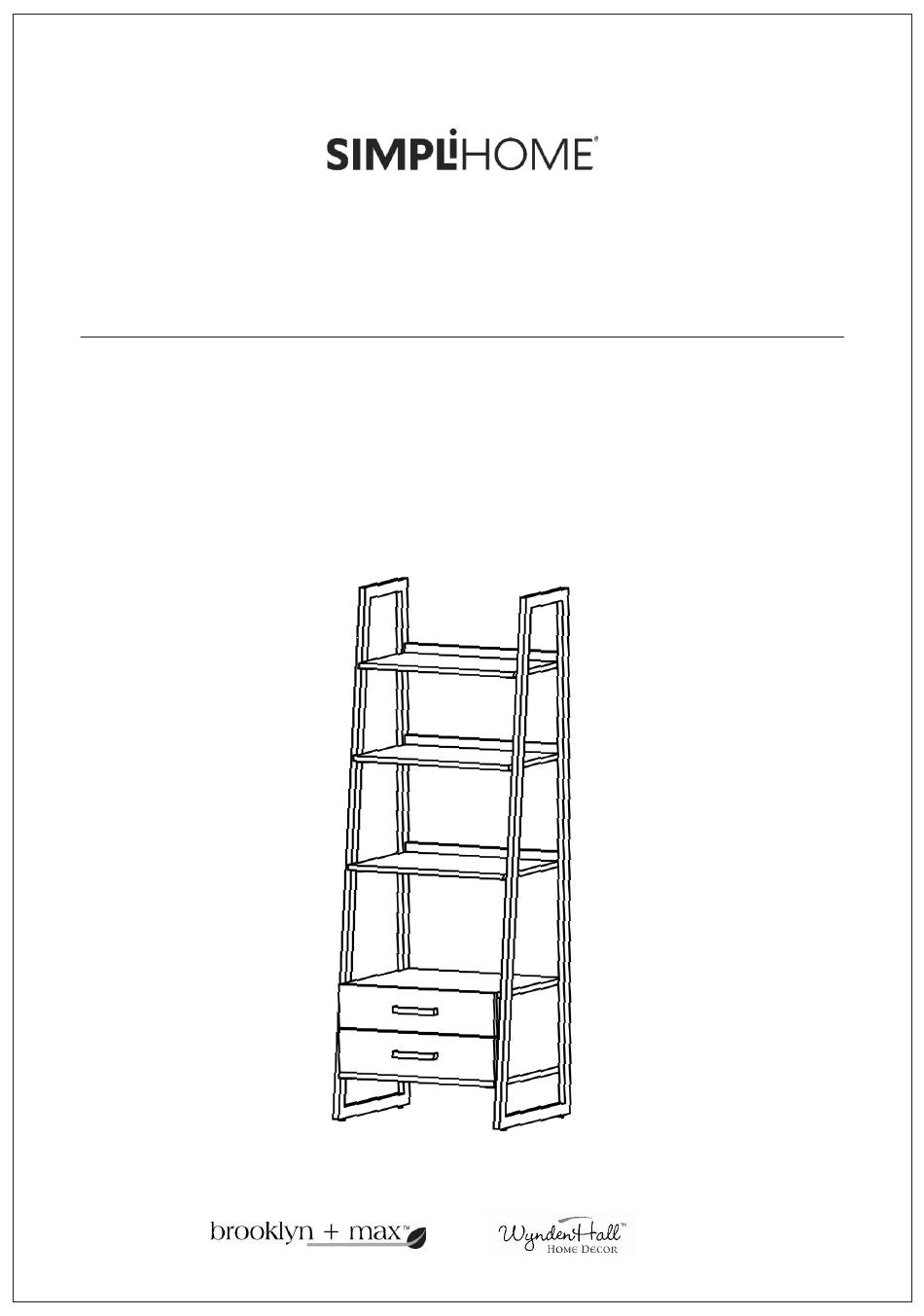

- Page 1 Sawhorse / Hawkins / Spokane Metal / Wood Ladder Shelf with Storage MODEL # AXCSAWM06-WAL...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards. You may even receive store credit on your entire purchase! simpli-home.com/share-images...
- Page 4 For fastest customer service Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all the parts and hardware required. Hardware package may have spare parts. WARNING: This item contains small parts which can be swallowed by children and pets. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Damage to furniture can come from temperature changes in relative humidity (RH) in our homes. Humid air oxidizes metal which results in rusting, corrosion, tarnishing and roughness. Wood absorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. To protect against the humidity effect, the metal is powder coated. -
Page 7: Pre-Assembly Information
Pre-Assembly Information Model # AXCSAWM06-WAL Part Description SHELF SHELF SHELF QTY 1 QTY 1 QTY 1 RIGHT SIDE LEFT SIDE TOP CABINET SHELF QTY 1 QTY 1 QTY 1 RIGHT SIDE CABINET PANEL BOTTOM CABINET SHELF LEFT SIDE CABINET PANEL QTY 1 QTY 1 QTY 1... - Page 8 Pre-Assembly Information Model # AXCSAWM06-WAL Part Description DRAWER FACE BACK PANEL LEFT DRAWER SIDE QTY 2 QTY 1 QTY 2 RIGHT DRAWER SIDE DRAWER BACK DRAWER FRONT QTY 2 QTY 2 QTY 2 DRAWER BOTTOM QTY 2...
- Page 9 Pre-Assembly Information Model # AXCSAWM06-WAL Hardware Description ALLEN KEY BOLT WASHER ALLEN KEY BOLT ALLEN KEY M6 x 20 mm Ø20 / Ø9 x 3 mm M6 x 40 mm 4 mm QTY 22 QTY 34 QTY 12 QTY 1 LOCK WASHER SCREW WASHER...
- Page 10 Components - Key Diagram Model # AXCSAWM06-WAL...
- Page 11 Assembly Model # AXCSAWM06-WAL Step 1 1. Insert Cam Locks 9 to Drawer Sides J and J 2. Use Screwdriver to tighten the Cam Locks 9 .
- Page 12 Assembly Model # AXCSAWM06-WAL Step 2 1. Attach the Handle 8 to the Drawer Face 1 using the Handle screws 8 . 2. Use a Screwdriver to tighten screws.
- Page 13 Assembly Model # AXCSAWM06-WAL Step 3 1. Attach Drawer Sides J and J to Drawer Front L and Drawer Back K with Cam Locks 9 . 2. Use Screwdriver to lock Cam Locks 9 in place.
- Page 14 Assembly Model # AXCSAWM06-WAL Step 4 1. Attach Drawer Sides J and J to Drawer Bottom L using Screws 6 and Washers 7 . 2. Use Screwdriver to tighten Screws 6 .
- Page 15 Assembly Model # AXCSAWM06-WAL Step 5 1. Attach Drawer Face 1 to Drawer Front L using Allen Key Bolts 3 and Washers 2 . 2. Use Allen Key 4 to tighten Bolts.
- Page 16 Assembly Model # AXCSAWM06-WAL Step 6 1. Attach Top Cabinet Shelf E to Cabinet Panels F and F using Allen Key Bolts 3 and Wahers 2 . Do not over tighten Bolts. 2. Use Allen Key 4 to tighten Bolts 3 .
- Page 17 Assembly Model # AXCSAWM06-WAL Step 7 1. Attach Cabinet Panels F and F to Bottom Cabinet Shelf G using Allen Key Bolts 3 and Washers 2 Do not over tighten Bolts. 2. Use Allen Key 4 to tighten Bolts...
- Page 18 Assembly Model # AXCSAWM06-WAL Step 8 1. Attach Cabinet Panels F and F to Bottom Cabinet Shelf G and Top Cabinet Shelf E to Storage Back H Using Screws 6 and washers 7 . 2. Use Screwdriver to tighten Screws 6 .
- Page 19 Assembly Model # AXCSAWM06-WAL Step 9 1. Align Sides D and D with Shelf A , B and C . 2. Align assembled Cabinet with Sides D and D 3.Use Allen Key Bolts 1 , Lock Washers 5 and Washers 2 to secure parts A , B , C Cabinet and Legs D 4.
- Page 20 Assembly Model # AXCSAWM06-WAL Step 10 1. Align Sides D and D to Shelf A , B and C using Allen Key Bolts 1 , Washers 2 and Lock Washers 5 . 2. Use Allen Key 4 to tighten Bolts.
- Page 21 Assembly Model # AXCSAWM06-WAL Step 11 1. Insert the assembled drawers in the Cabinet.
- Page 22 Assembly Model # AXCSAWM06-WAL Step 12 1. Adjust the Drawer Face 1 using Allen Key 4 .
- Page 23 Assembly Model # AXCSAWM06-WAL Step 13 Note: Levelers on the bottom of the Sides can be adjusted if floor is uneven.
- Page 24 FURNITURE ANTI-TIPPING RESTRAINT INSTRUCTIONS WARNING Serious or fatal crushing injuries can occur from furniture p-over. If the furniture p over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 14...
- Page 25 FURNITURE ANTI-TIPPING RESTRAINT INSTRUCTIONS A ach one of the moun ng brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark loca on on the wall for moun ng bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
