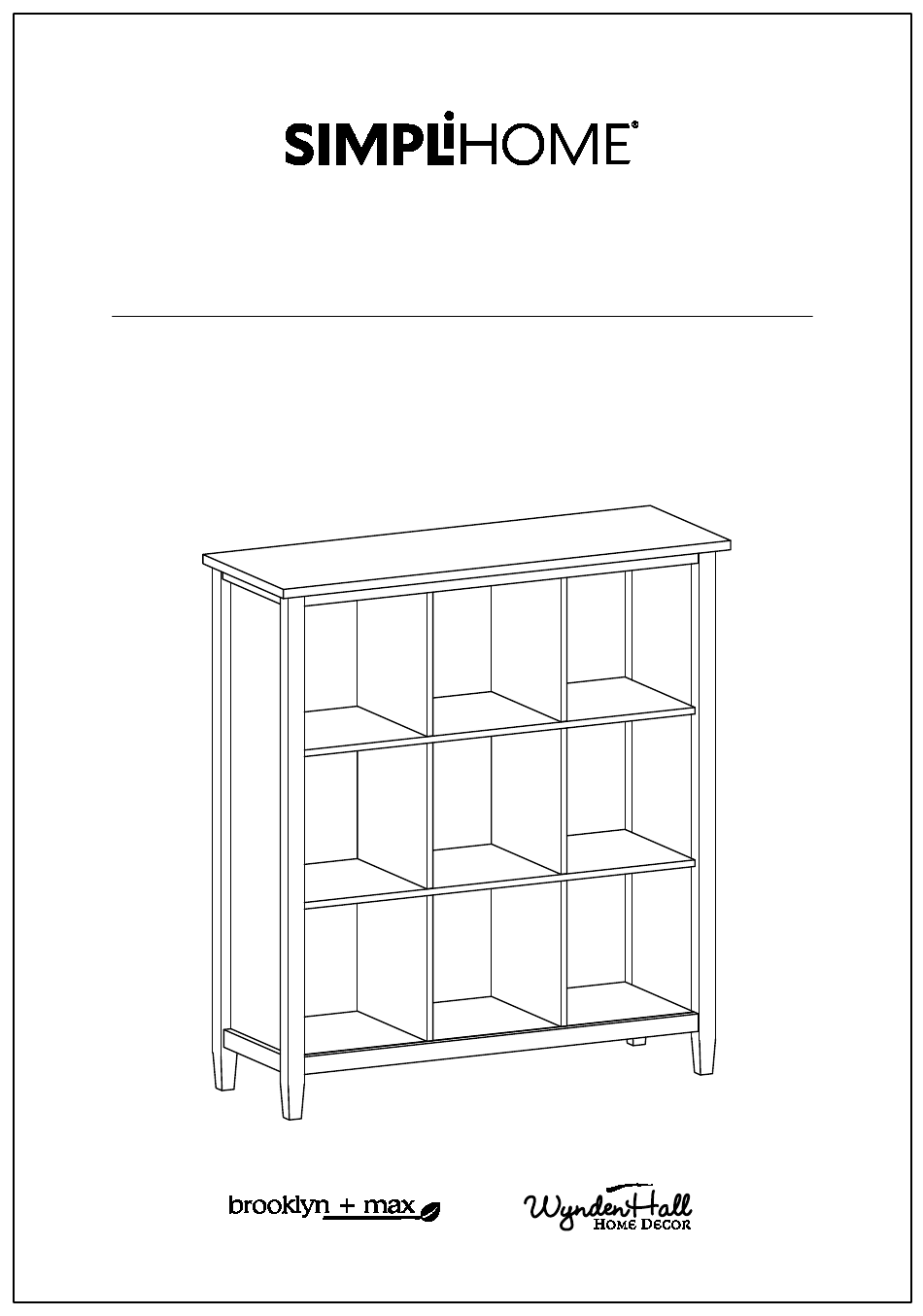

- Page 1 Warm Shaker / Norfolk / Lexington 9 Cube Storage Model # AXCWSH21-LGB...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. - Page 7 Pre-Assembly Information Model # AXCWSH21-LGB Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 MIDDLE DIVIDER (L&R Same) BOTTOM DIVIDER (L&R Same) TOP DIVIDER (L&R Same) QTY 2 QTY 2 QTY 2 BOTTOM SHELF TOP SHELF LEFT BACK PANEL QTY 1 QTY 2 QTY 1...
- Page 8 Pre-Assembly Information Model # AXCWSH21-LGB Hardware Description CAM LOCK PIN ALLEN KEY BOLT ALLEN KEY SCREW CAM LOCK M6 x 40 mm M6 X 30mm QTY 30 SETS QTY 4 QTY 18 WOOD DOWEL PHILLIPS SCREW ROUND HEAD ALLEN KEY Ø8 X 30mm M4 X 15mm QTY 1...
- Page 9 Components - Key Diagram Model # AXCWSH21-LGB...
- Page 10 Assembly Model # AXCWSH21-LGB Step 1 1. Attach nine Cam Lock Pins 2 into pre-drilled holes on each Side BL , BR . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. 3. Insert one Wood Dowels 5 into guide holes on each Side BL , BR . 4.
- Page 11 Assembly Model # AXCWSH21-LGB Step 2 1. Insert two Dowels 5 into guide holes on each Divider C , D , E . 2. Use rubber mallet to tap Dowels 5 into bottom of holes securely. 1/3 length of Dowels should be exposed.
- Page 12 Assembly Model # AXCWSH21-LGB Step 3 1. Align Wood Dowel with guide hole on Top Shelf F and attach Dividers C to Top Shelf F . 2. Use two Allen Key Screws 1 to attach each Divider C through guide holes from Top Shelf F to pre-drilled holes of Dividers C . 3.
- Page 13 Assembly Model # AXCWSH21-LGB Step 4 1. Attach six Cam Lock Pins 2 into pre-drilled holes on Top Shelf F . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten.
- Page 14 Assembly Model # AXCWSH21-LGB Step 5 1. Align Cam Lock Pins with guide holes and attach Dividers D to Top Shelf F . 2. Insert three Cam Locks 2 into guided holes on each Divder D . 3. Use Phillips screwdriver to secure Cam Locks. Do not over-tighten.
- Page 15 Assembly Model # AXCWSH21-LGB Step 6 1. Repeat Step 3 for the second Top Shelf F .
- Page 16 Assembly Model # AXCWSH21-LGB Step 7 1. Repeat Step 4 for the second Top Shelf F .
- Page 17 Assembly Model # AXCWSH21-LGB Step 8 1. Repeat Step 5 for three Dividers E .
- Page 18 Assembly Model # AXCWSH21-LGB Step 9 1. Align Wood Dowel with guide hole on Bottom Shelf G and attach Dividers E to Bottom Shelf G . 2. Use three Allen Key Screws 1 to attach each Divider E through guide holes from Bottom Shelf G to pre-drilled holes of Dividers E . 3.
- Page 19 Assembly Model # AXCWSH21-LGB Step 10 1. Align Cam Lock Pin with guide holes and attach Left Side BL to Shelves F , G . 2. Insert three Cam Locks 2 into guide holes on each Shelf F , G . 3.
- Page 20 Assembly Model # AXCWSH21-LGB Step 11 1. Repeat Step 10 for Right Side BR .
- Page 21 Assembly Model # AXCWSH21-LGB Step 12 1. Align Wood Dowels with guide holes and attach Top A to Sides BL , BR . 2. Use two Allen Key Bolts 3 to attach each Side BL , BR through guide holes. 3.
- Page 22 Assembly Model # AXCWSH21-LGB Step 13 Note: Warning Label 1. Attach the Back Panels HL , HR , H to back frame using Phillips Screws Round Head 6 through guide holes from Back Panels. 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten.
- Page 23 Assembly Model # AXCWSH21-LGB Step 14 1. Insert Plastic Caps 7 into holes Cam Locks on Dividers D , E .
- Page 24 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. NOTE: The screwdriver is not included in the hardware pack.
- Page 25 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
