Alpha DOCSIS DM31 Quick Start Manual

3.1 transponder for xm3™ power supply

Advertisement

Quick Links

DM31 DOCSIS
Introduction
This guide describes the DOCSIS Monitor 31 (DM31) transponder and provides procedures with regard to installation in
the XM3 series broadband uninterruptible power supply (UPS). This guide also provides steps to verify correct network
provisioning on the DOCSIS network. For detailed information, refer to the DM31 Technical Manual available at
www.alpha.com.
Audience
This guide is intended for experienced, qualified and licensed installation personnel familiar with the mechanical and
electrical requirements of enclosure and power supply systems. Review the support documentation on the website to
become familiar with the features and functions of the equipment in this system before proceeding. Failure to install
and/or use this equipment as instructed in the system documents can result in a hazard to personnel or damage to the
equipment. This system is only serviceable by qualified personnel.
Overview
The DM31 unit is a DOCSIS 3.1 transponder designed to provide status and alarms from the XM3 broadband UPS to a
network monitoring system. The DM31 transponder utilizes Simple Network Management Protocol (SNMP), standard
SCTE-HMS and Alpha Management Information Bases (MIBs) to provide network status monitoring and diagnostics. A
web interface enables authorized personnel direct access to advanced diagnostics using a common web browser. The
DM31 transponder is composed of the following:
Ethernet Port
E
T
H
E
Environmental Port
N
V
Tamper Switch Connector
TORQUE
T P R
10.0 IN-LB
ALMRDY
11.5 kgf.cm
RF Drop
R
S
R
RF Connector
T
F
RX/TX
PWR
G RN = O K
B LU = WA R N
R E D = O UT
COM
PWR
DS
US
Grounded Surge Protector
OL
LNK
(Alpha p/n 162-028-10 or equivalent)
Thumbscrew
LED Indicators
ALM/RDY
DM31 ready, major/minor alarm
Rx/Tx PWR
RF power level
XM3 communications
COM
PWR
DM31 power
1
3.1 Transponder for XM3™ Power Supply
®
Quick Start Guide
Thumbscrew
To Headend
Required
DS
Downstream RF carrier detection/lock
US
Upstream RF carrier detection/lock
Registration lock
OL
LNK
Ethernet link

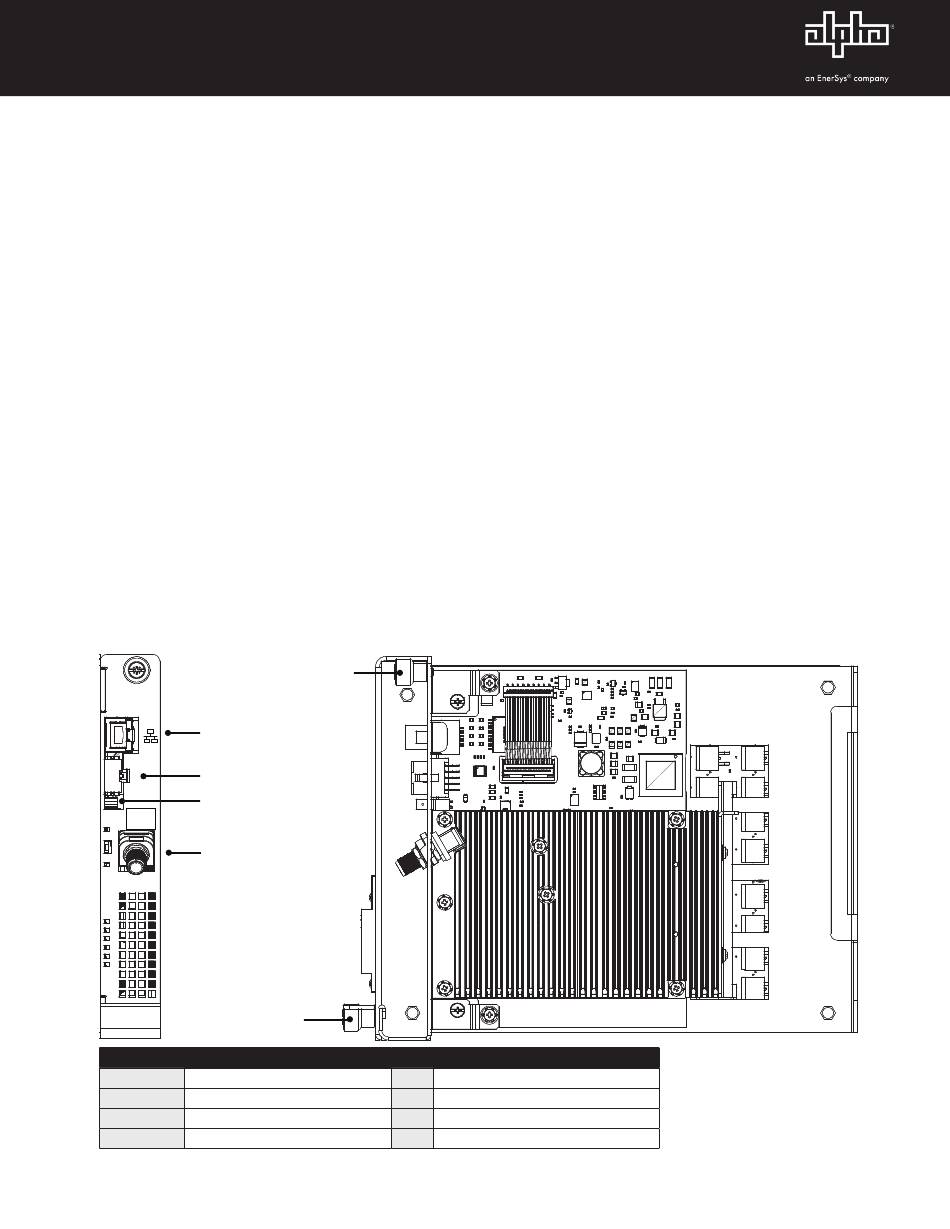

Fig. 1, DM31 Transponder
017-891-B12-001, Rev. A (02/2023)

Advertisement

loading

Summary of Contents for Alpha DOCSIS DM31

  • Page 1 The DM31 transponder utilizes Simple Network Management Protocol (SNMP), standard SCTE-HMS and Alpha Management Information Bases (MIBs) to provide network status monitoring and diagnostics. A web interface enables authorized personnel direct access to advanced diagnostics using a common web browser. The...
  • Page 2 Scroll to the DEVICE ADDRESS menu item and verify the device address is set to something other than 0 (zero). • NOTICE: Industry standard board replacement procedures should be followed. To reduce static, Alpha ® recommends the use of a static reducing wrist strap.
  • Page 3 BL U = WAR N RE D = O UT Required Required Grounded Surge Protector (Alpha p/n 162-028-10 or equivalent) Ground Surge Protector (Alpha p/n 162-028-10 or equivalent) Fig. 6, RF Cable Installation Fig. 5, Ribbon Cable Installation 017-891-B12-001, Rev. A (02/2023)
  • Page 4: Verify Communications

    Initial Power-Up and Test / Return Unit to Service Plug the power supply into the AC outlet. 2. Switch battery breaker ON. 3. The transponder LED indicators will all blink in unison upon initial power up. The RDY indicator will then begin blinking steadily indicating normal processor activity.
  • Page 5 System Name, System Location, System Contact and Common Logical ID may be edited on this page; when prompted for a User Name and Password, use “Alpha” and “AlphaGet” .
