Alpha FlexPoint 1208-F Quick Start Manual

™
FlexPoint 1208-F Quick Start Guide
FTTx UPS System for ONTs
Review the drawings and illustrations contained in this guide
and operation, visit www.alpha.com and download a copy of the FlexPoint
(p/n 010-353-B0).
The FlexPoint 1208-F unit is an RFoG power supply providing 12Vdc primary and standby power. A customer-
provided 90Vac to 264Vac, 50/60Hz power receptacle provides primary power to the input of the unit. The AC
voltage is then converted to a usable 12Vdc output. Backup power is provided by batteries that are long life, easy
to replace, purchase, and install. Power status is provided to the customer via audible alarms and visual indicators.
Upon loss of AC service, the duration of standby power is determined by the battery installed in the unit.
Coaxial Cable w/ F-Type Connector
Line Cord Up to 8',
(2.4 meters)

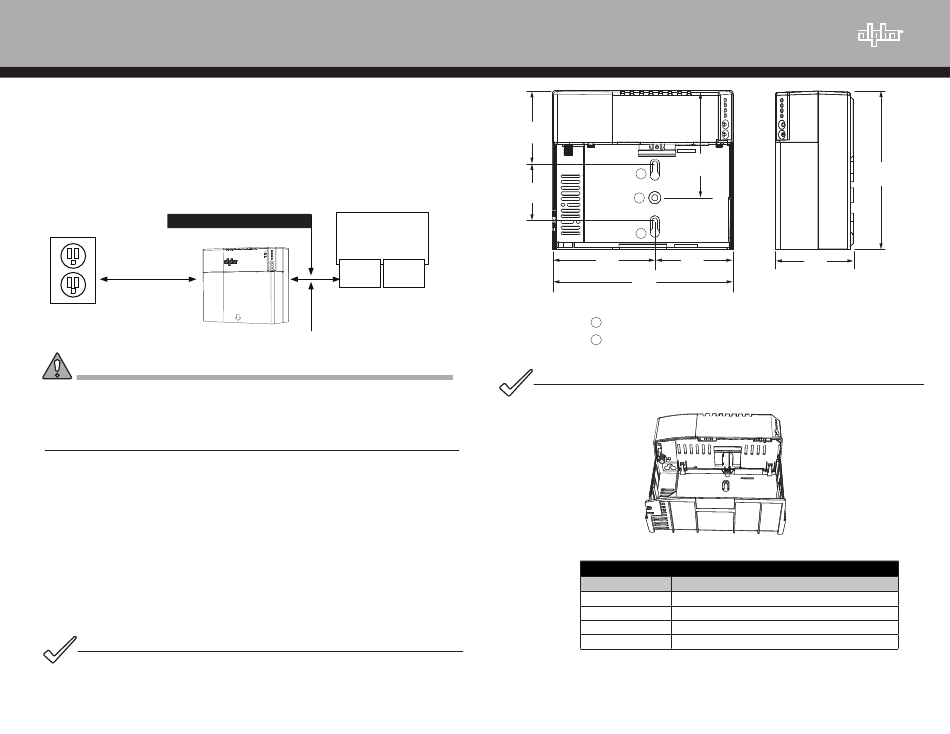

Fig. 1, System Block Diagram
CAUTION!
• The unit is designed for use in an indoor environment protected from rain and snow. Its
operating temperature range is -10°C to 45°C / 14°F to 113°F (ambient).
• The power supply cord is used as the main disconnect device. Verify the AC receptacle is
located/installed near the equipment and is easily accessible.
Installing and Connecting the FlexPoint Unit
1. Unpack and inspect the FlexPoint power supply.
2. Install the unit within 8' (2.4 m) to an AC outlet with 6" (15.2 cm) of space above and below, 2–4" (5–10 cm)
in front and 2" (5 cm) of space on either side to provide adequate thermal ventilation.
3. Remove battery compartment cover by pressing the finger tab underneath the middle of the unit and pull
the cover bottom away from the unit and down.
4. Determine the necessary cable length to provide appropriate service loops between the unit, the ONT, and
the AC receptacle. Plug the line cord into the receptacle in the unit. Secure line cord at one of the cable
tie holes with one included cable tie. Do not plug the unit into an AC receptacle until the last step of the
installation procedure.
5. Connect Coax cable to F-type connector, torque to between 4.1 in-lbs and 6.1 in-lbs, and secure in cable
dressing holes. Secure output cable at one of the cable tie holes with one of the included cable ties.
6. Mount to the wall with #12 fasteners or equivalent, using the keyholes for easy mounting. For applications
with higher seismic requirements, use the round hole in the back of the unit for direct fastening to a stud or
other structural feature.
NOTICE:
During normal operation, press the Silence Alarm button to get the recommended battery capacity:
5Ah – 1 chirp; 7Ah – 3 chirps; 8Ah – 4 chirps.
Alpha Technologies 3767 Alpha Way Bellingham, WA 98226 USA Tel: +1 360 647 2360 Fax: +1 360 671 4936 www.alpha.com
Alpha Technologies Ltd. 7700 Riverfront Gate Burnaby, BC, V5J 5M4 CANADA Tel: +1 604 436 5900 Fax: +1 604 436 1233
Due to continuing product improvements, Alpha reserves the right to change specifications without notice. Copyright 2014 Alpha Technologies, Inc. All rights reserved.
Alpha is a registered trademark of Alpha Technologies. 010-353-B8-001 Rev. A1
before proceeding. For additional details on installation
1208-F Series Technical Manual
TM
FlexPoint 1208-F
ONT
AUX
SILENCE Network Customer
ALARM
DC START
Area Area
FlexPoint: Up to 50' (~15.25 meters)
2.83"
[71.9 mm]
[108.9 mm]
2
2.52"
1
[64.0 mm]
2
4.23"
3.19"
[107.4 mm]
[81.0 mm]
7.48"
[190.0 mm]
(Cover removed for clarity)
1
Mounting holes for customer-supplied #12 hardware or equivalent
2
Keyhole slots for easy mounting
Fig. 2, FlexPoint Dimensions (in/[mm])
(viewed from back/right side)
NOTICE:
Always mount unit vertically as shown in Fig. 2.
Coaxial Connector
AC Connector
Cable Dressing Holes
Fig. 3, FlexPoint AC/Output Power Connector Locations
Battery Options
Part Description
AX-STDBAT-5 Battery 5.1Ah AGM, 1-year Warranty
AX-STDBAT-7 Battery 7.2Ah AGM, 1-year Warranty
AX-LONGBAT-7 Battery 7.2Ah AGM, 3-year Warranty
AX-LONGBAT-8 Battery 8Ah AGM, 3-year Warranty
Table 1, FlexPoint Battery Options Table
4.29"
[166.9 mm]
3.23"
[82.0 mm]
6.57"
1
