Summary of Contents for Alpha LECTRO Mini-Mite Ferro

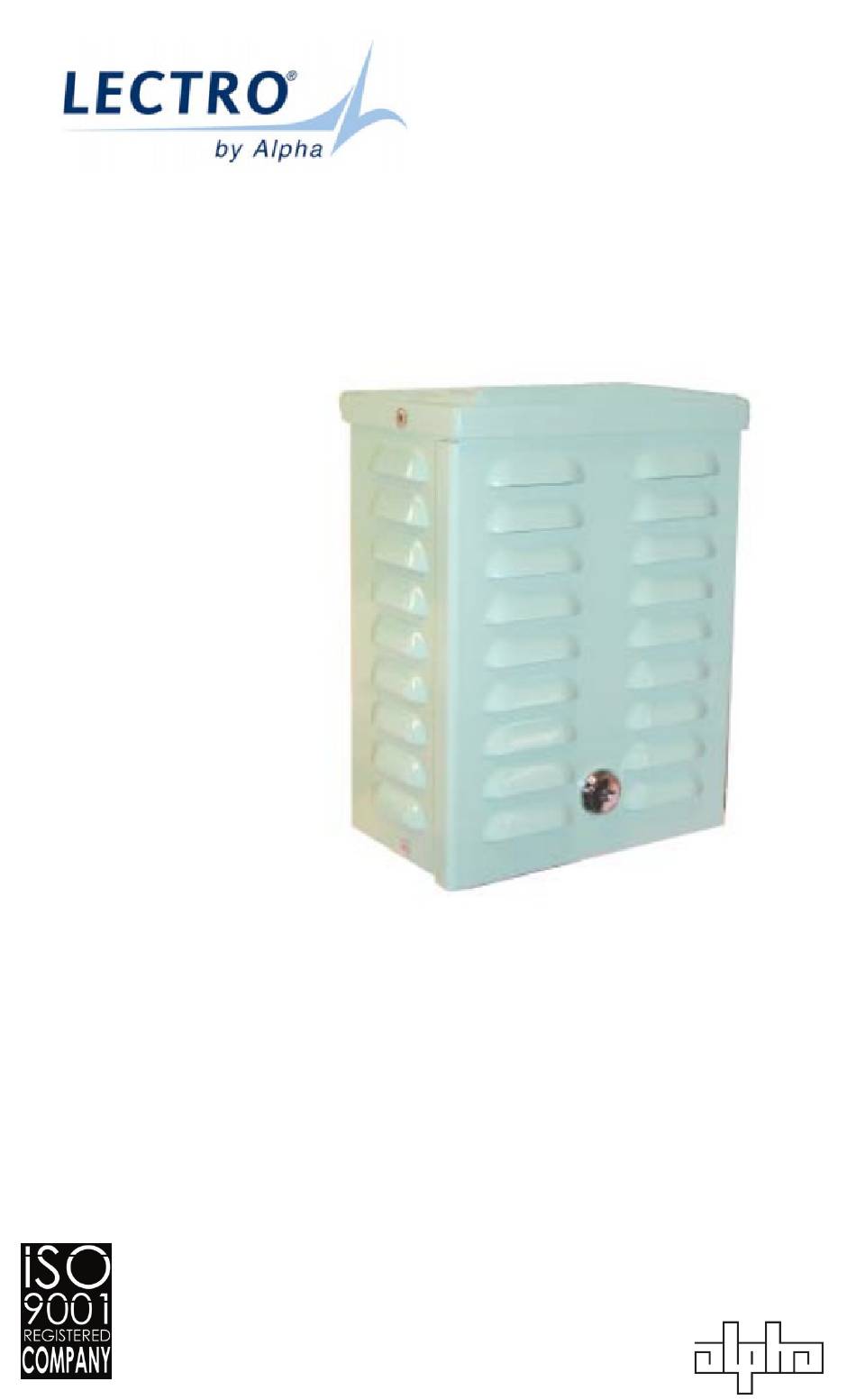

- Page 1 Mini-Mite Ferro Power Supply 30/60Vac Output Operator’s Manual Effective: May, 2015 ® Alpha Technologies...
- Page 2 Power ® Alpha Technologies...
- Page 3 Alpha Technologies or your nearest Alpha representative. NOTE Alpha denies responsibility for any damage or injury involving its enclosures, power supplies, generators, batteries, or other hardware when used for an unintended purpose, installed or operated in an unapproved manner, or improperly maintained.
-
Page 4: Table Of Contents
Table of Contents Warnings & Cautions ................5 Unpacking and Inspection ..............6 1. OVERVIEW Introduction ................7 2. SPECIFICATIONS Nominal ...................8 General ..................8 3. CABINET INSTALLATION Mounting ..................9 Electrical Connections .............10 Disassembly ................10 4. OPERATION Changing Output Voltage ............11 Service ..................12 Maintenance ................13 CM003101 Rev. -
Page 5: Warnings & Cautions
WARNINGS & CAUTIONS WARNINGS A “Warning” identifies conditions and actions that pose a hazard to the user. NOTE This power supply and its associated hardware (enclosure, cabling) may contain equipment(s), or parts which have accessible hazardous voltage or currents. To avoid injury: •... -
Page 6: Unpacking And Inspection
After inspection by the shipping company and a written appraisal of the damage has been received, contact Alpha Technologies and request a return authorization number. Return items promptly with the return authorization and invoice numbers clearly shown on the shipping label. -
Page 7: Introduction
1. Introduction The Lectro Mini-Mite Ferro Power Supply brings the CATV industry a new performance standard. Lectro’s proprietary design provides excellent regulation over varying AC input and load conditions, providing the user with the most efficient and trouble-free ferroresonant system on the market. Careful physical and thermal design ensure a longer life, while allowing chassis replacement with minimum tools and effort. -
Page 8: Specifications
2. Specifications 2.1 Nominal Specifications Electrical Specifications AC Input Voltage Range 120 Vrms AC Input Voltage Regulation + 10% / - 20% AC Output Frequency Range 60Hz AC Output Voltage 60Vrms AC Output Voltage Regulation @ Nominal Frequency ±3% Efficiency @ Full Load Output Configurations 2A / 4A Input Current, Nominal (Amps) -
Page 9: Mounting
3. Installation Mounting The Mini-Mite Ferro Power Supply is designed to be wall- mounted using the provided bracket. installation procedure 1. A minimum clearance of 1.75” should be allowed above, below, and along the sides and front of the unit for adequate cooling. -
Page 10: Electrical Connections
3. Installation Electrical Connections 1. Remove the front cover with the key provided. 2. Install the output cable connector in the chassis adapter provided on the bottom of the cabinet. 3. Plug the AC line cord into a 120Vac utility receptacle. 4. -
Page 11: Operation
4. Operation Changing the output voltage (PSF-MMP-AXX only) The Lectro Mini-Mite Ferro Power Supply is designed to provide regulated 30V or 60V from the 120Vac power line. The power output is normally configured for 60V and can be changed to provide 30V via the following procedure. -
Page 12: Service
4. Operation Service CAUTION Lethal voltages are present within the chassis when the unit is in operation. For safety, be certain to unplug the input cord and the output cable connector before attempting service. NOTE Part of the unit’s thermal design is heat conduction from the transformer brackets to the cabinet of the power supply. -
Page 13: Maintenance
4. Operation Maintenance Proper operation and longer system life can be ensured by performing the following maintenance: 1. Before opening the cabinet, inspect it for external damage or tampering, including the grounding circuit. 2. Unlock and open the cabinet. 3. Inspect the air vents for obstructions 4. - Page 16 Regents Park, NSW 2143 AUSTRALIA Tel: +61-2-9722-3320 Fax: +61-2-9722-3321 Due to continuing product improvements, Alpha reserves the right to change specifications without notice. Copyright © 2015 Alpha Technologies, Inc. All rights reserved. Alpha is a registered trademark of Alpha Technologies. CM003101 Rev.B1...
