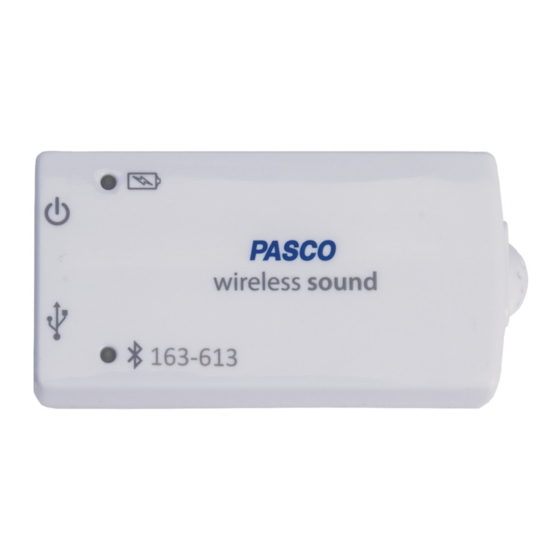

PASCO PS-3227 Replacement Instructions

Wireless sound sensor

PS‐3227; Wireless Sound Sensor Battery Replacement Instructions

Reference: Battery part number 540‐113; Li‐Poly 1000 mAH

Recommended Equipment: (PS‐3299; Battery Replacement Tool Set)

Step 1:

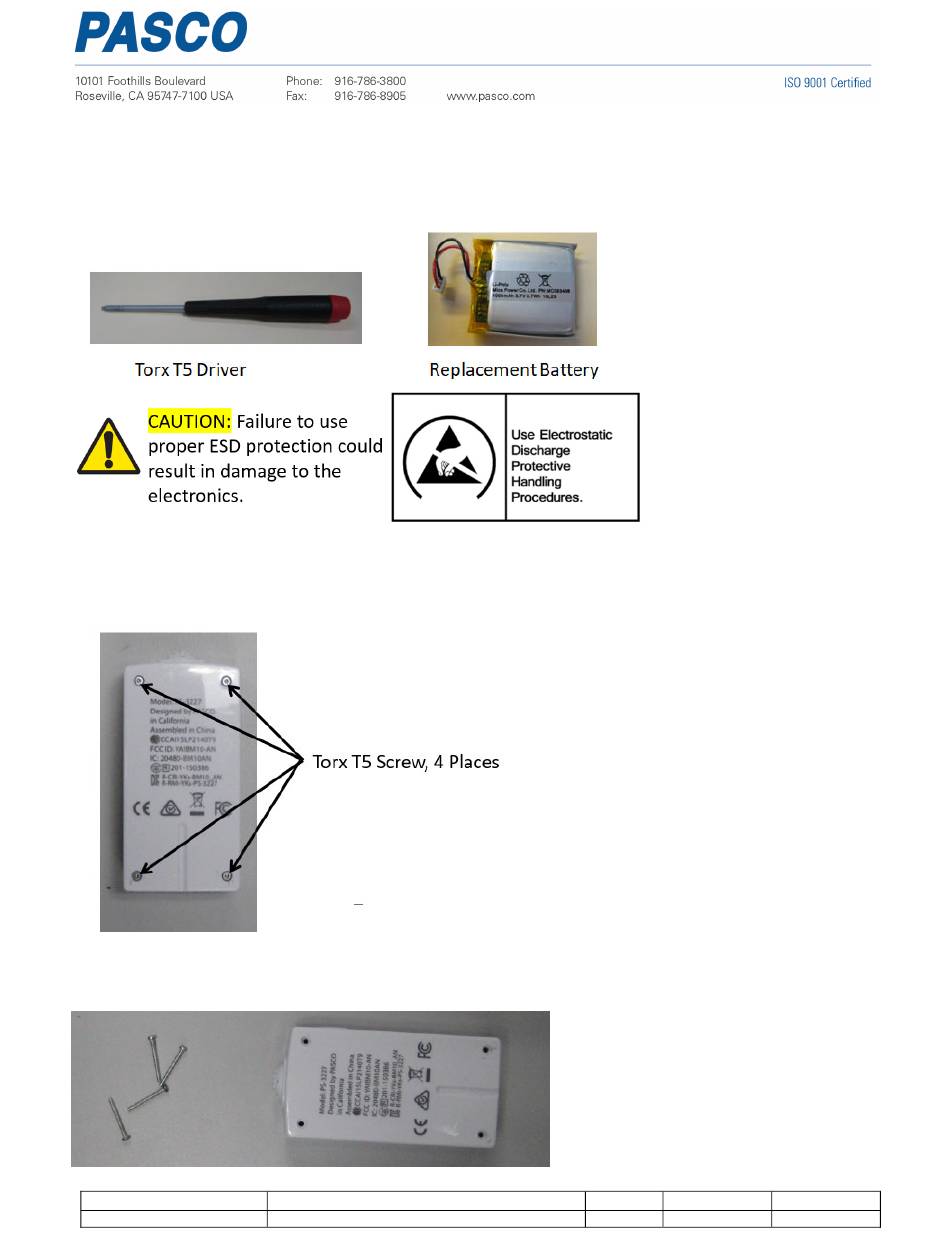

Position the Sensor on a surface as shown. Note the location of the (4) Torx T5

Screws.

Step 2:

Unscrew and remove the 4 Screws with the Torx T5 Screwdriver.

PASCO Form Number

013-17364

Description

PS-3227 Battery Replacement Instructions

Date

05-05-22

Page 1 of 3

Revision
