PASCO PS-3220 Reference Manual

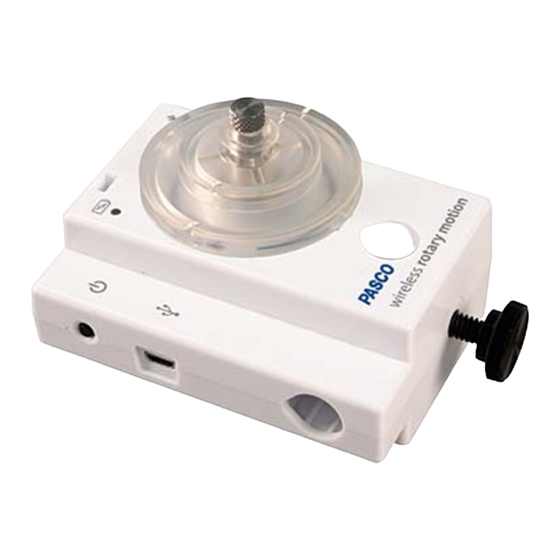

Wireless rotary motion sensor
Hide thumbs Also See for PS-3220:
Table of Contents

Advertisement

Quick Links

Download this manual

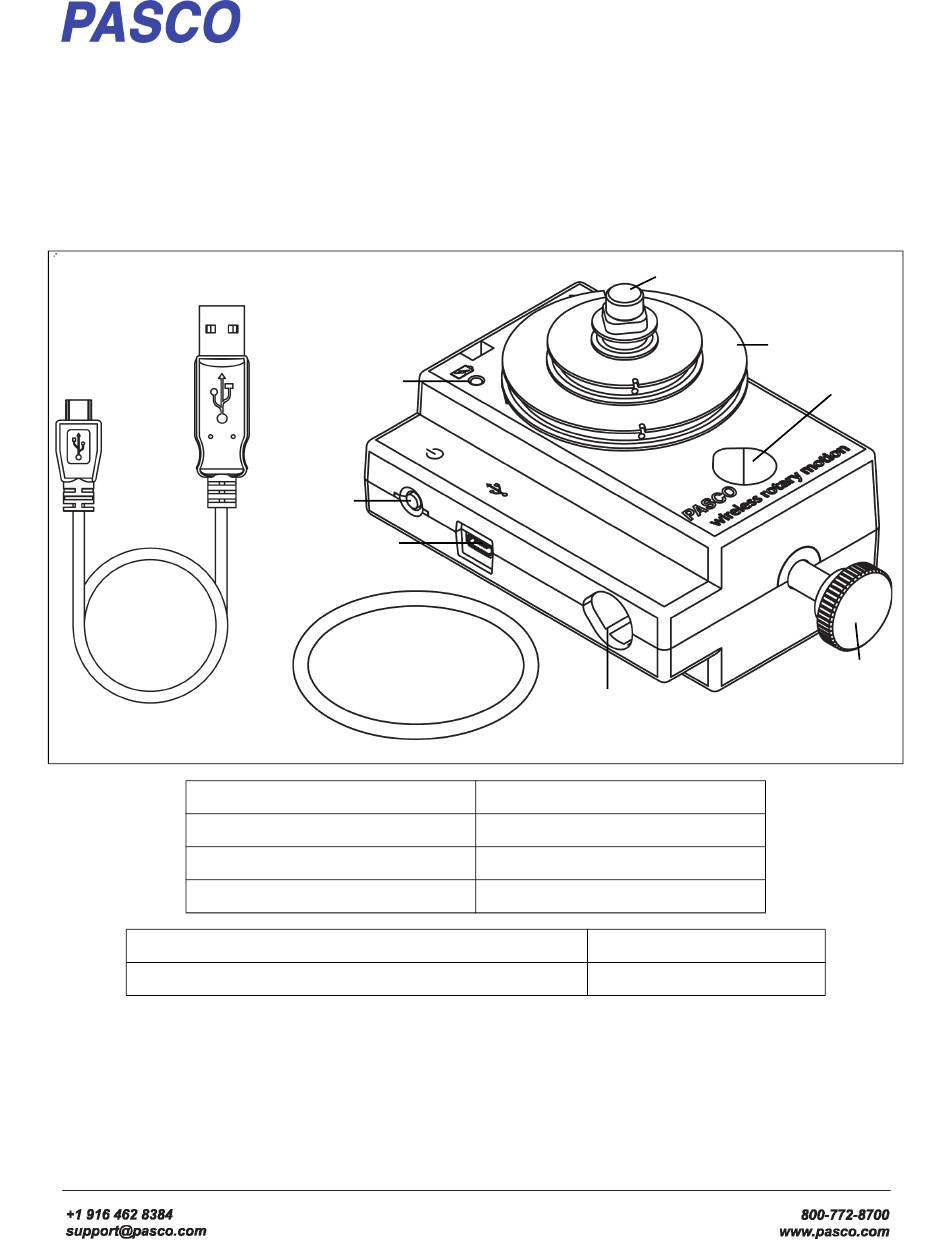

Wireless Rotary Motion Sensor
ON/OFF Button
Micro USB Cable
Equipment Included
Wireless Rotary Motion Sensor
O-ring
Micro USB Cable (1 meter)
Required Item*
PASCO Data Collection Software: Capstone or SPARKvue
For downloadable experiments, go to www.pasco.com and enter PS-3220 in the Search window. Check under Resources.
PS-3220
Battery LED
Micro USB Port
O-Ring for
Three-step Pulley
*See the PASCO catalog or the PASCO web site for more information.
www.pasco.com
Small Thumbscrew
Support Rod Hole
Equipment Included
Three-step Pulley
Small Thumbscrew
Thumbscrew
Part Number
see www.pasco.com
Reference Guide
013-15949A
Three-step Pulley
Support Rod Hole
Thumbscrew

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS-3220 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PASCO PS-3220

Summary of Contents for PASCO PS-3220

  • Page 1 Part Number PASCO Data Collection Software: Capstone or SPARKvue see www.pasco.com *See the PASCO catalog or the PASCO web site for more information. www.pasco.com For downloadable experiments, go to www.pasco.com and enter PS-3220 in the Search window. Check under Resources.

  • Page 2: Data Collection Software

    One side of the sensor has a platform for mounting a Super Pulley with Table Clamp (optional). Using the Sensor The sensor is designed to work with PASCO data collection software to measure position, velocity, and acceleration. Use it to study optics, dynamics, centripetal force, or motion of a pendulum. Data Collection Software...

  • Page 3: Software Help

    PS-3220 I ntrod uction Software Help See the SPARKvue Help or PASCO Capstone Help for information about collecting, displaying, and analyzing data. • In SPARKvue, select the HELP button ( ) in any screen including the Home Screen. • In PASCO Capstone, select PASCO Capstone Help from the Help menu, or press F1.

  • Page 4: Led Information

    Logging* *Logging: PASCO wireless sensors can either stream live data to a compatible device or log data (save it to the sensor’s memory). The data can then be uploaded to the device for display and analysis at a later time. Logging capability supports long-term or remote data collection while not connected to the device.
  • Page 5 Connect the other end of the Micro USB Cable to a USB port on the computer, or into a powered USB hub connected to the computer. • In PASCO Capstone, select a display in the main window or from the Displays palette. In the display, use the <Select Measurement> menus to pick the measurement to be shown. Collecting Data •...
  • Page 6 Wireless Rotary Motion Sensor M ounting the Wireless Rotary M otio n Senso r Attaching Accessories to the Wireless Rotary Motion Sensor Using the Disk from the Disk and Ring Set Disk (ME-3419) For rotational inertia experiments, mount the Wireless Rotary Motion Sensor with the Disk horizontal.
  • Page 7 Dynamics Track Mount Accessory. When mounted on the track as shown, the Wireless Rotary Motion Sensor could be used to measure the motion of a PASCO Cart as it is pulled by a string suspended over the Three-step Pulley of sensor and attached to a mass hanger.

  • Page 8: Specifications

    Bracket See the PASCO web site at www.pasco.com for more information. Experiments Experiments for the Wireless Rotary Motion Sensor in electronic format are available to download from the PASCO web site. www.pasco.com Go to the web site, enter PS-3220 in the Search window, and check under Resources.
  • Page 9 PS-3220 Expe riments Item: Value Rotational Resolution 0.00157 radian Maximum Rotation Rate 30 rotations per second Optical Encoder Bidirectional, indicates direction of motion, 4,000 divisions/rotation 013-15949A...

  • Page 10: Technical Support

    Limited Warranty For a description of the product warranty, see the PASCO catalog. Copyright The PASCO scientific Instruction Manual is copyrighted with all rights reserved. Permission is granted to non-profit educational institutions for reproduction of any part of this manual, providing the reproductions are used only in their laboratories and classrooms, and are not sold for profit.
  • Page 11 2012. The Mac Pro that debuted in December 2013 has Bluetooth SMART support. Exception: Before you upgrade to El Capitan (Mac OS X 10.11.x), if you have a Macintosh with LMP version “0x4” that requires the PS-3500 USB Bluetooth 4.0 Adapter, please contact PASCO Technical Support for further instructions.
  • Page 12 Wireless Rotary Motion Sens or Appendix A: Co mpatibility 013-15949A...
  • Page 13 Triple Beam Balance (SE-8723) Calipers (SF-8711) Paper clips (for masses <1g) *See the PASCO Web site at www.pasco.lcom for more information Purpose The purpose of this experiment is to find the rotational inertia of a point mass experimentally and to verify that this value corresponds to the calculated theoretical value.

  • Page 14: Equipment Setup

    (in seconds) of the point masses and apparatus. • In PASCO Capstone, for example, drag the Graph icon from the Displays palette to the workbook. Select “Angular Velocity (rad/s)” for the vertical axis, and “Time (s)” for the horizontal axis.
  • Page 15 PS-3220 E xperiment 1: Rotationa l Inertia of a Point M ass • In the Properties window for Linear Accessory, select the size of the 3-step Pulley you are using. The default setting is “Large Pulley (Groove)”. Click OK. 2. Put a 50-g mass on the Mass Hanger and turn the 3-step Pulley to wind up the thread so the hanger is just below the Super Pulley.
  • Page 16 Wireless Rotary Motion Sensor Ex periment 1: R otational I nertia o f a Poi nt B. Finding the Acceleration of the Apparatus Alone 1. Take the point masses off the ends of the rod. 2. Repeat the procedure from Part A for finding the angular acceleration of the apparatus alone. •...
  • Page 17 Triple Beam Balance (SE-8723) Calipers (SF-8711) Paper clips (for masses <1g) *See the PASCO Web site at www.pasco.lcom for more information Purpose The purpose of this experiment is to experimentally find the rotational inertia of a ring and a disk and verify that these values correspond to the calculated theoretical values.
  • Page 18 Wireless Rotary Motion Sensor Ex periment 2: Rotational Inertia o f Disk and Procedure Measurements for the Theoretical Rotational Inertia 1. Weigh the ring and the disk to find their masses and record these masses in Data Table 1. 2. Measure the inside and outside diameters of the ring and calculate the radii, R and R .
  • Page 19 (in second) of the ring and disk. • In PASCO Capstone, for example, drag the Graph icon from the Displays palette to the workbook. Select “Angular Velocity (rad/s)” for the vertical axis, and “Time (s)” for the horizontal axis.
  • Page 20 Wireless Rotary Motion Sensor Ex periment 2: Rotational Inertia o f Disk and 4. Calculate the experimental value of the rotational inertia of the disk alone and record the value in Data Table 3. 5. Subtract the rotational inertia of the disk from the total rotational inertia of the ring and disk, and record this as the rotational inertia of the ring alone.
  • Page 21 Triple Beam Balance (SE-8723) Calipers (SF-8711) Paper clips (for masses <1g) *See the PASCO Web site at www.pasco.lcom for more information Purpose A non-rotating thin ring is dropped onto a rotating disk, and the final angular speed of the system is compared with the value predicted using the principle of the conservation of angular momentum.
  • Page 22 • In PASCO Capstone, for example, drag the Graph icon from the Displays palette to the workbook. Select “Angular Velocity (rad/s)” for the vertical axis, and “Time (s)” for the horizontal axis.
  • Page 23 PS-3220 E xperiment 3: C onserva tion of An gular M omentum Questions 1. How does the experimental result for the final angular velocity compare with the theoretical value for the final angular velocity? 2. What percentage of the rotational kinetic energy was “lost” during the collision? Calculate the energy lost and record the results in the Data Table.
