800-VS Pool Pump
Installation
& Operation
Manual
Should the installer or owner be unfamiliar with the correct installation or operation
of this type of equipment you should contact the distributor/manufacturer for the
correct advice before proceeding with the installation or operation of this product.
The pump operator or owner must be provided with this owner's manual.
Manufactured by
Advertisement
Table of Contents
Related Manuals for Pentair maytronics ecoclear 800-VS
Summary of Contents for Pentair maytronics ecoclear 800-VS
- Page 1 800-VS Pool Pump Installation & Operation Manual Should the installer or owner be unfamiliar with the correct installation or operation of this type of equipment you should contact the distributor/manufacturer for the correct advice before proceeding with the installation or operation of this product. The pump operator or owner must be provided with this owner’s manual.
- Page 2 800-VS Pool Pump Owner’s Manual...
-
Page 3: Table Of Contents
CONTENTS Page Features and Benefits Technical Information Model Data Hydraulic Performance Dimensions Installation Pump Positioning Piping Pool Outlets Electrical Equipotential Bonding Operation Priming the Pump Speed Selection Variable Speed Adjustment Set Priming Options Service & Maintenance Troubleshooting Troubleshooting Guide Motor Flash Codes Spare Parts 800-VS Pool Pump Owner’s Manual... -
Page 4: Features And Benefits

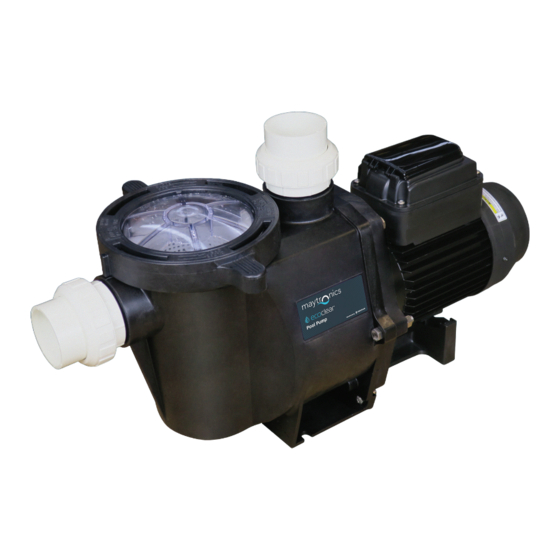

FEATURES & BENEFITS The Ecoclear® 800-VS Pool Pump is the ideal pump for new or existing pools. Utilising advanced hydraulic design and the latest technology in permanent magnet, variable speed motors, the Ecoclear® 800-VS Pool Pump has the perfect combination of efficiency and performance. -
Page 5: Technical Information
TECHNICAL INFORMATION Model Data RPM: Low 1450RPM (default factory setting) Med 2400RPM (default factory setting) High 2850RPM (default factory setting) Adjustable Range: 1000-2850RPM Electrical Rating: 230-240V 50Hz single phase Rated Current: Low: 1.3A (max) Med: 4.4A (max) High: 6.0A (max) Input Power (P Low: 160W (max) Med: 595W (max) -
Page 6: Hydraulic Performance
TECHNICAL INFORMATION Hydraulic Performance WhisperFlo VS 800 Ecoclear® 800-VS Pool Pump 2850 RPM 2400 RPM 2000 RPM 1600 RPM 1450 RPM Flow (LPM) Dimensions 800-VS Pool Pump Owner’s Manual WHISP... -
Page 7: Installation
INSTALLATION The pump must be installed and serviced by a suitably qualified person in order to avoid hazard. Incorrectly installed or tested equipment may fail, causing severe injury or property damage. These instructions are a guide only. Should you the installer or owner of the product be unfamiliar with the correct installation or operation of this product you should contact a suitably qualified person for advice. -
Page 8: Piping
INSTALLATION 2. Piping For best performance, allow pump suction inlet height to be as far below water level as possible and allow the use of short, direct suction pipe with minimum bends (to reduce friction losses). a. Use only Australian Standard PVC pressure pipe. For best performance use at least 50mm diameter pipe for all connections to the pump. -
Page 9: Electrical
INSTALLATION 4. Electrical Do not use extension leads as they are unsafe in and around the Pool Zone. Hazardous voltage. Can shock, burn or cause death. To avoid dangerous or fatal electrical shock, turn OFF power to pump and remove plug from outlet before working on electrical connections. a. -
Page 10: Operation
OPERATION NEVER run pump dry. Running pump dry may damage seals, causing leakage and flooding. Fill pump with water before starting motor. Freezing conditions will damage the unit, as water expands as it freezes. Ensure that the Ecoclear® 800-VS Pool Pump is located so that it is not prone to freezing, or ensure that the product is disconnected and dried of water during cold conditions. -
Page 11: Speed Selection
OPERATION 2. Speed Selection The Ecoclear® 800-VS Pool Pump comes pre-programmed with the following default speeds: Press for Press for Press for low speed medium speed high speed 1450RPM 2400RPM 2850RPM • Backwashing filter. • Operating some • Cleaning with a •... -
Page 12: Set Priming Options
OPERATION 4. Set Priming Options Press the “STOP” button for 5 seconds to DISABLE/ENABLE prime time. (The power LED/ Green will light up and not blink when prime time is disabled), this function will be back to default when reset to default or press again this button for 5 second. -
Page 13: Service & Maintenance
SERVICE & MAINTENANCE To avoid dangerous or fatal Do not operate pump with trap electrical shock hazard, turn OFF basket missing or damaged. power to pump and remove plug from power outlet before working on pump. • It is essential for the longevity of the pump that regular service and maintenance be carried out. -
Page 14: Troubleshooting
TROUBLESHOOTING The Ecoclear® 800-VS Pool Pump should only be serviced by certified Maytronics service agents. For best results and to ensure warranty is not void, insist on use of only genuine Maytronics service parts. To avoid dangerous or fatal electrical shock hazard, turn OFF power to pump and remove plug from power outlet before working on pump. - Page 15 TROUBLESHOOTING SYMPTOM CAUSE REMEDY No water coming Air ingress to • Prime the pump. Check that there from pump (pump system. are no air leaks in the suction piping is working). or fittings. Ensure the strainer lid is airtight and fitted securely. Ensure all O-rings are present.
-
Page 16: Motor Flash Codes
TROUBLESHOOTING The variable speed motor is a sophisticated and highly technical device. Should a fault occur with the motor, it cannot be serviced and must be replaced by a certified Maytronics service agent or similarly qualified personnel in order to avoid a hazard. Warranty is void if unauthorised modifications are made to any component. -
Page 17: Spare Parts
SPARE PARTS 800-VS Pool Pump Owner’s Manual... - Page 18 SPARE PARTS Item No. Part Number Description 359541 Pump Casing Assembly (incl. lid, basket & O-ring) See Foot Kit Motor Foot See Foot Kit Foot insert 357159K Foot Kit 350203K Seal Plate (incl mech seal) 801202 Motor Fasteners Kit See Pump Bolt 3/8"...
- Page 19 NOTES 800-VS Pool Pump Owner’s Manual...
- Page 20 IMPORTANT Please attach your sales invoice/docket here as proof of purchase should warranty service be required. Please do not return warranty form to Maytronics Australia – Retain for your records. PURCHASED FROM: PURCHASE DATE: SERIAL NO: MODEL NO: Unit 2/91 Rudd Street, Oxley, QLD 4075 | Australia | 1300 693 657 | www.maytronics.com.au Information contained here in remains the property of Maytronics Australia under Australian copyright law.
