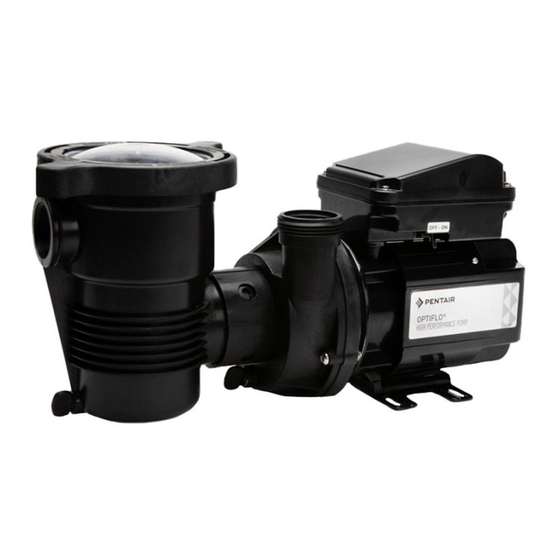

- Page 1 OPTIFLO ABOVEGROUND POOL PUMP INSTALLATION AND USER’S GUIDE IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS SAVE THESE INSTRUCTIONS...
-
Page 2: Table Of Contents
CUSTOMER SERVICE / TECHNICAL SUPPORT If you have questions about ordering Pentair replacement parts, and pool products, please contact: Customer Service and Technical Support, USA Sanford, North Carolina (8 A.M. to 4:30 P.M. ET) (8 A.M. to 4:30 P.M. — Eastern/Pacific Times) -
Page 3: Important Pump Warning And Safety Instructions
230 VAC charge even when there is no This guide provides installation and operation instructions for this pump. power to the unit. Consult Pentair with any questions regarding this equipment. • The pump is not submersible. Attention Installer: This guide contains important information about the •... - Page 4 For Installation of Electrical Controls at Equipment Pad (ON/OFF Switches, Timers and Automation Load Center) Warnings and safety instructions for Pentair Aquatic Systems pumps Install all electrical controls at equipment pad, such as and other related products are available at: on/off switches, timers, and control systems, etc.
-
Page 5: How Your Pump Works
SECTION I. HOW YOUR PUMP WORKS Your OptiFlo Aboveground Pool Pump is designed to operate for years with proper maintenance. The pump housing, ® seal plate, hair and lint pot and impeller are made from high quality thermoplastic materials. These materials have been selected for their corrosion resistance. - Page 6 13. It is essential that the suction line be free of air leaks and air traps. WARNING Blockage of suction fittings can cause severe or fatal injury due to drowning. Do not permit children to use pool/spa equipment. 14. Suction fittings must conform to ASME/ANSI A 112.19.8 M Standards. Use double suction fittings. 15.
-
Page 7: Grounding
GROUNDING 20. Permanently ground motor. Use green terminal provided under motor canopy or access plate; use size and type wire required by code. Connect motor ground terminal to electrical service ground. On cord connected circuits, check for proper grounding. BONDING - (for permanently wired pumps) 21. -
Page 8: Initial Start-Up
INITIAL START-UP 1. Relieve all system pressure and open all air bleeders on total hydraulic system prior to starting the OptiFlo ® Aboveground Pool Pump. See filter owner's manual. 2. Ensure that all fittings, clamps, closures and couplings are tight and in accordance with equipment manufacturer's recommendations. 3. Open suction and discharge valving to allow free flow of water. On flooded suction pumps with strainer pot the water source is higher than the pump. The water will flow into the pump strainer pot and the pot will fill with water. On pumps without strainer pot the water will fill the pump housing. 4. On non-flooded suction systems the pot lid clamp will have to be removed by rotating the lid counter-clockwise to a stop and lifting the clamp. 5. The pump strainer pot should be filled with water up to suction opening on the pump. 6. It is good practice to lubricate the lid o-ring with silicone lubricant each time the lid is removed. The o-ring should be cleaned and inspected every time the strainer pot is opened. -
Page 9: Winterizing Procedure
4. Use extreme care when handling the mechanical seal. The mating seal surfaces are polished and are easily damaged. 5. The mechanical seal can be changed without disconnecting piping by removing 4 bolts (see item 14 on page 7) and pulling the motor with OptiFlo Aboveground Pool Pump seal plate and impeller assembly away from front ®... -
Page 10: Troubleshooting Guide
SECTION VI. TROUBLESHOOTING GUIDE The following are some common causes of problems that may arise. PROBLEM CAUSE REMEDY Pump will not prime. No water in strainer pot. Add water to pot. Strainer pot lid is not tight. Tighten lid. Damaged lid o-ring. Replace o-ring. -
Page 11: Technical Data
SECTION VII. TECHNICAL DATA REPLACEMENT PARTS Item No. Part No. Description 357161Z Drain Plug, 3 req. 354545S Mechanical Seal 350017 Impeller 192115Z O-ring, 3 req. 357213 Volute Assembly 357255Z O-ring 2-357, 2 req. 357227 357228 Pot Assembly 357239 Clamp Ram & Cam 357254 1/4-20 Square Nut, 4 req. -
Page 12: Dimensional Data
DIMENSIONAL DATA 9.3" (236 mm) 10" (254 mm) 9.8" (249 mm) 7.3" 7.8" (185 mm) (198 mm) 3.5" (89 mm) 4.1" (104 mm) PUMP CURVES Volumetric Flow Rate in GPM OPTIFLO Aboveground Pool Pump Installation and User' s Guide... - Page 13 OPTIFLO Aboveground Pool Pump Installation and User' s Guide...
- Page 14 WWW.PENTAIR.COM All indicated Pentair trademarks and logos are property of Pentair. Third party registered and unregistered trademarks and logos are the property of their respective owners. Because we are continuously improving our products and services, Pentair reserves the right to change specifications without prior notice.
