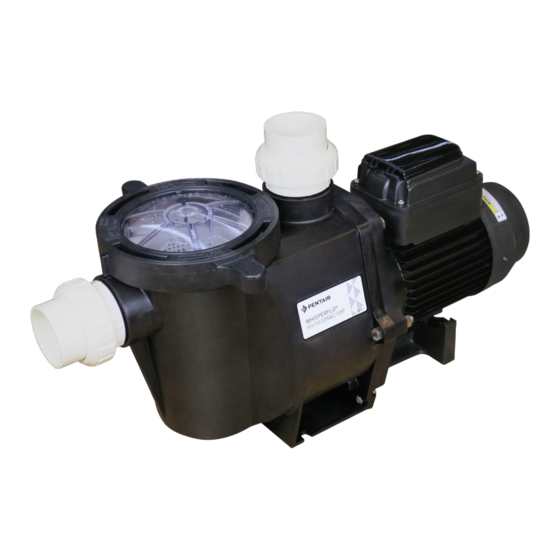

WHISPERFLO VS 800
VARIABLE SPEED POOL PUMP
OWNER'S MANUAL
Should the installer or owner be unfamiliar with the correct installation or operation of
this type of equipment you should contact the distributor/manufacturer for the correct
advice before proceeding with the installation or operation of this product. The pump
operator or owner must be provided with this owner's manual.
Advertisement
Table of Contents
Related Manuals for Pentair WhisperFlo VS 800
Summary of Contents for Pentair WhisperFlo VS 800

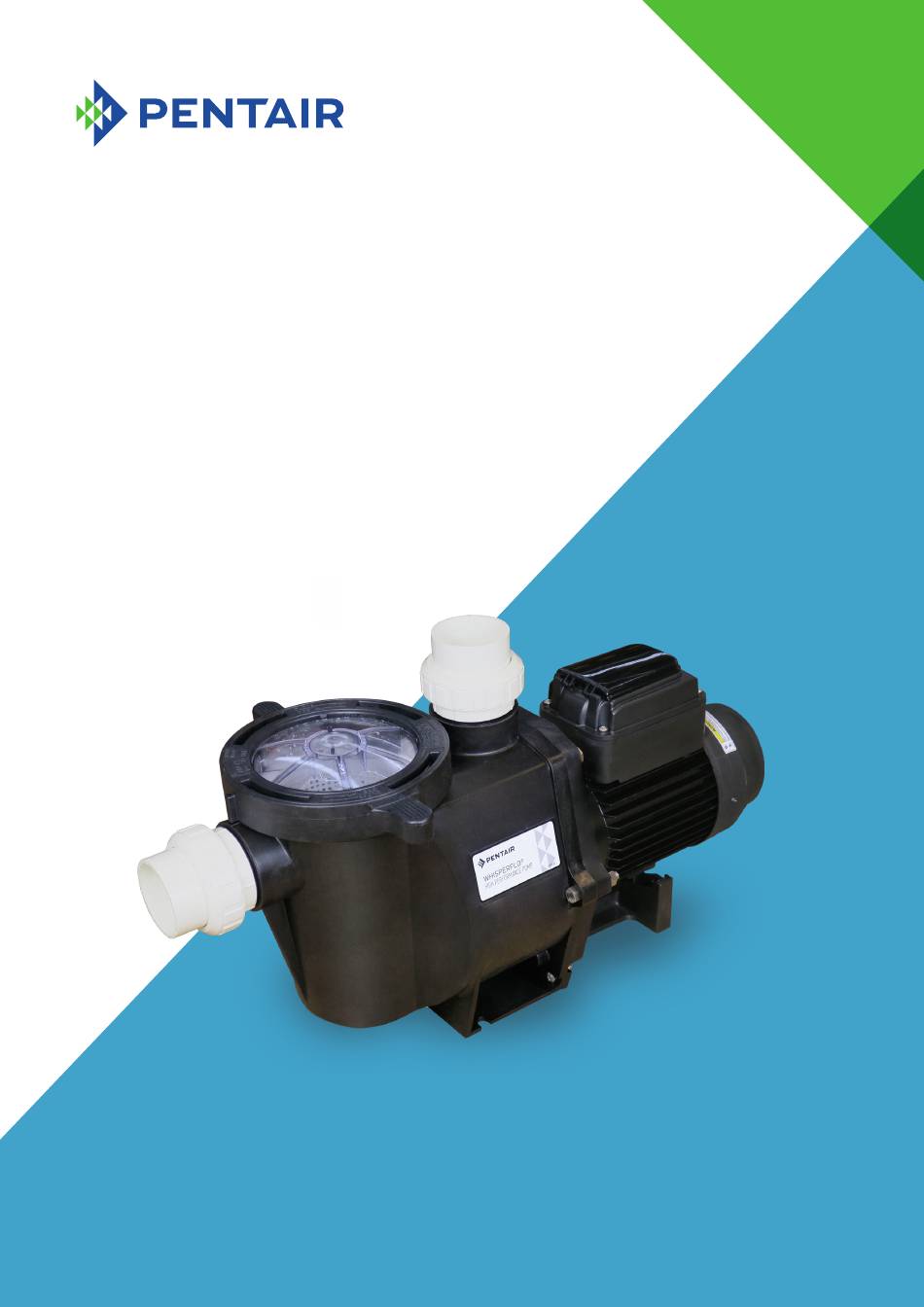

- Page 1 WHISPERFLO VS 800 VARIABLE SPEED POOL PUMP OWNER’S MANUAL Should the installer or owner be unfamiliar with the correct installation or operation of this type of equipment you should contact the distributor/manufacturer for the correct advice before proceeding with the installation or operation of this product. The pump...
- Page 2 These products do the best job of saving energy, conserving water, reducing noise, or otherwise contributing to a more environmentally responsible equipment system. In every case, a product that earns the Eco Select brand is clearly our “greenest” and most efficient choice. WhisperFlo VS 800 Owner’ s Manual...
-
Page 3: Table Of Contents
Hydraulic Performance Dimensions Installation Pump Positioning Piping Pool Outlets Electrical Equipotential Bonding Operation Priming the Pump Speed Selection Variable Speed Adjustment Set Priming Options Service & Maintenance Troubleshooting Troubleshooting Guide Motor Flash Codes Spare Parts WhisperFlo VS 800 Owner’ s Manual... -
Page 4: Features And Benefits
WhisperFlo VS 800 has the perfect combination of efficiency and performance. The WhisperFlo VS 800 delivers energy savings and the power when you need it. You will also have the peace of mind that you are doing your bit for the environment and reducing your carbon foot print. -
Page 5: Technical Information
Low: 57.5dB Med: 65.2dB High: 69.3dB Motor: Axial flux, permanent magnet, DC Protection: Mains over voltage, mains under voltage, over temperature, under temperature, locked rotor, over current, phase disconnect. Supply cord: 10A, H07RNF, 2m. WhisperFlo VS 800 Owner’ s Manual... -
Page 6: Hydraulic Performance
TECHNICAL INFORMATION Hydraulic Performance WhisperFlo VS 800 2850 RPM 2400 RPM 2000 RPM 1600 RPM 1450 RPM Flow (LPM) Dimensions WhisperFlo VS 800 Owner’ s Manual... -
Page 7: Installation
Children should be supervised to ensure that they do not play with the pump. The WhisperFlo VS 800 is electrically connected. Ensure that it is isolated from electrical supply during installation and any subsequent service work. -
Page 8: Piping
AS1926.3 standard. b. Suction outlet covers and skimmers must have been tested and found to comply with the latest AS1926.3 standard or ASME/ANSI specification for Suction Fittings. WhisperFlo VS 800 Owner’ s Manual... -
Page 9: Electrical
Run a wire from the equipotential bonding terminal on the pump (bottom, left motor bolt with serrated washer) to the pool bonding structure. WhisperFlo VS 800 Owner’ s Manual... -
Page 10: Operation
30 seconds to 3 minutes under normal installation conditions. j. The WhisperFlo VS 800 will start slowly but ramp up to high speed for the first 2 minutes to assist priming. It will then switch to the selected speed. -
Page 11: Speed Selection
OPERATION 2. Speed Selection The WhisperFlo VS 800 comes pre-programmed with the following default speeds: Press for medium Press for low speed Press for high speed speed 1450RPM 2400RPM 2850RPM • Filtration and water • Cleaning with a • Backwashing filter. -
Page 12: Set Priming Options
“2850” and ready to adjust speed. Pressing the button “low” will lower the speed by 25 RPM step (Holding for 2 seconds to decrease speed continuously). Pressing the button “med/set” will save. WhisperFlo VS 800 Owner’ s Manual... -
Page 13: Service & Maintenance
• It is essential for the longevity of the pump that regular service and maintenance be carried out. The WhisperFlo VS 800 incorporates high velocity moving parts and is pumping water containing harsh pool chemicals. Some parts which will wear during the normal operation and expected life of the pump. -
Page 14: Troubleshooting
TROUBLESHOOTING The WhisperFlo VS 800 should only be serviced by certified Pentair service agents. For best results and to ensure warranty is not void, insist on use of only genuine Pentair service parts. To avoid dangerous or fatal electrical shock hazard, turn OFF power to pump and remove plug from power outlet before working on pump. - Page 15 Tighten the casing bolts or replace the and motor. sufficiently; worn mechanical seal as required. mechanical seal requires replacing. Should problems persist, contact your nearest Pentair Water Service Agent. WhisperFlo VS 800 Owner’ s Manual...
-
Page 16: Motor Flash Codes
Pentair service agent or similarly qualified personnel in order to avoid a hazard. Warranty is void if unauthorised modifications are made to any component. -
Page 17: Spare Parts
SPARE PARTS WhisperFlo VS 800 Owner’ s Manual... - Page 18 See Diffuser Kit O-Ring Diffuser 357161 Drain Plug See Pump Washer 3/8" Fasteners Kit See Pump Nut 3/8" Fasteners Kit 071734S Mechanical Seal 405708 Motor Not Shown 357150K Pump Lid Not Shown 070387 Pump Basket WhisperFlo VS 800 Owner’ s Manual...
- Page 19 IMPORTANT Please attach your sales invoice/docket here as proof of purchase should warranty service be required. Please do not return warranty form to Pentair Australia - Retain for your records. PURCHASED FROM: PURCHASE DATE: SERIAL NO: MODEL NO: WhisperFlo VS 800 Owner’ s Manual...
- Page 20 Information contained here-in remains the property of Pentair Australia Holdings Pty Ltd under Australian copyright law. Content may not be reproduced or transmitted without our prior written permission. All indicated Pentair trademarks and logos are property of Pentair. Third party registered and unregistered trademarks/logos are the properties of their respective owners.
