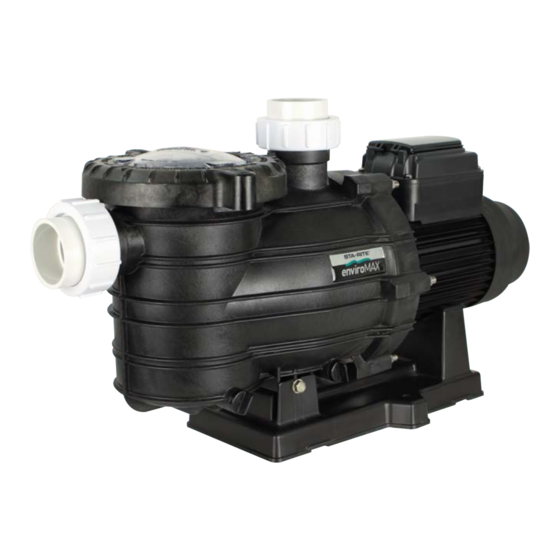

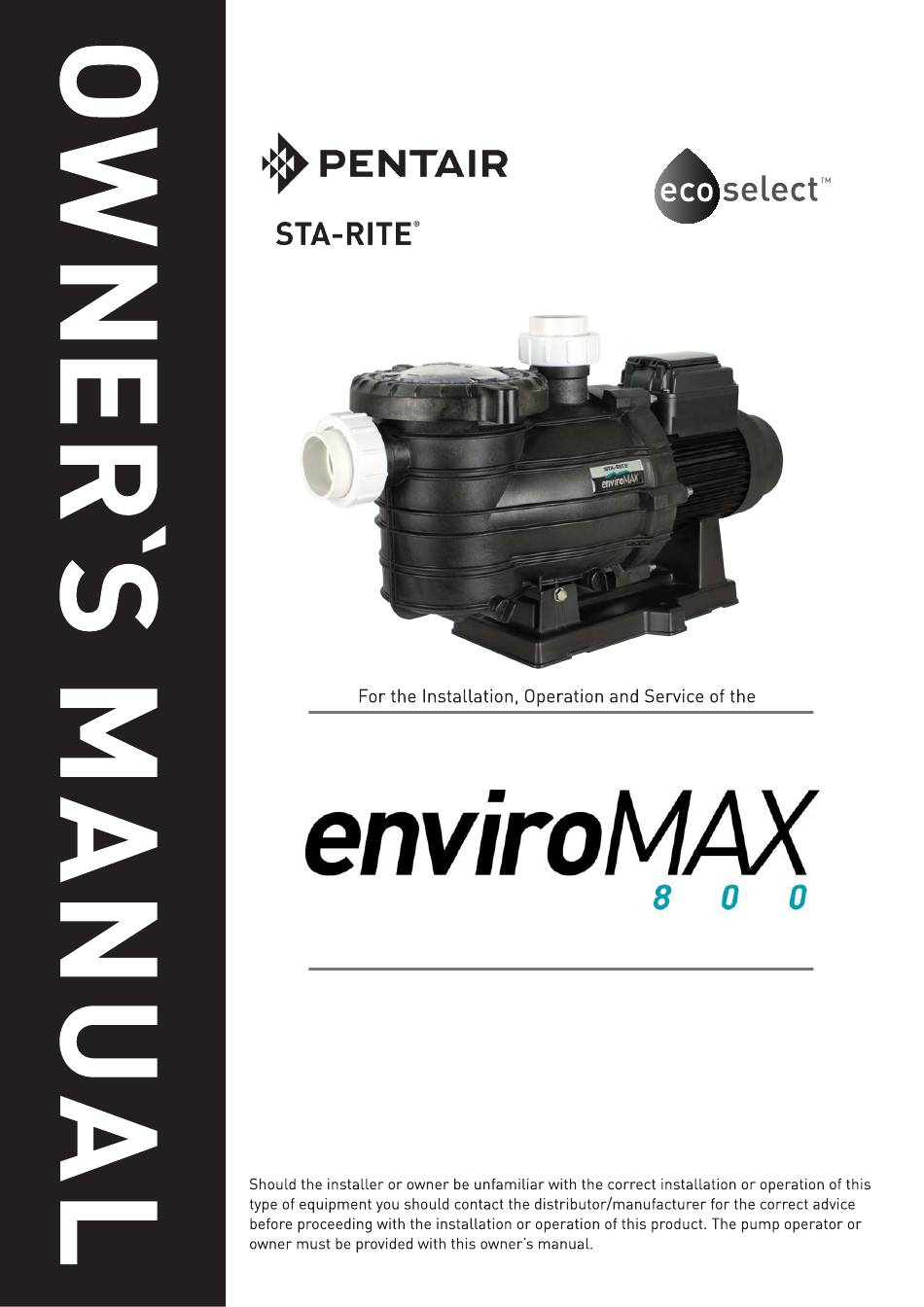

- Page 1 Variable Speed Pool Pump...
- Page 2 Eco Select ® The Eco Select brand identifies our most eco-friendly products ® As the global leader in pool and spa equipment, we’ve made a strong commitment to develop and offer the most environmentally responsible products available. When you see the Eco Select brand on one of our products, you’ll know it is our “greenest”...
-
Page 3: Table Of Contents
Table of Contents Page Features and Benefits Technical Information Model Data Hydraulic Performance Dimensions Installation Pump positioning Piping Pool Outlets Electrical Equipotential Bonding Operation Priming the Pump Speed Selection Variable Speed Adjustment Priming Service & Maintenance Troubleshooting Troubleshooting Guide 12,13 Motor Flash Codes Spare Parts 15,16... -
Page 4: Features And Benefits
Features & Benefits The Sta-Rite EnviroMAX 800 is the ideal pump for new or existing pools. Utilising advanced hydraulic design and the latest technology in permanent magnet, variable speed motors, the EnviroMAX 800 has the perfect combination of efficiency and performance. The EnviroMAX 800 delivers energy savings and the power when you need it. -
Page 5: Technical Information
Technical Information Model Data RPM: Low 1450RPM (default factory setting) Med 2400RPM (default factory setting) High 2850RPM (default factory setting) Adjustable Range: 1000-2850RPM Electrical Rating: 230-240V 50Hz single phase Rated Current: Low: 1.3A (max) Med: 4.4A (max) High: 6.5A (max) Input Power (P Low: 160W (max) Med: 595W (max) -
Page 6: Hydraulic Performance
Technical Information Hydraulic Performance 16.0 EnviroMAX 800 Performance Chart 14.0 2850RPM 12.0 2600RPM 2850RPM 10.0 2600RPM 2400RPM 2400RPM 2200RPM 2200RPM 2000RPM 2000RPM 1800RPM 1800RPM 1600RPM 1600RPM 1450RPM 1450RPM 100.0 200.0 300.0 400.0 500.0 Flow (L/min) Dimensions 681mm 279mm 353mm 385mm 364mm 432mm 364mm... -
Page 7: Installation
Installation The pump must be installed and serviced by a suitably qualified person in order to avoid hazard. Incorrectly installed or tested equipment may fail, causing severe injury or property damage. These instructions are a guide only. Should you the installer or owner of the product be unfamiliar with the correct installation or operation of this product you should contact a suitably qualified person for advice. -
Page 8: Pool Outlets
Installation 3. Pool Outlets The pump suction system must provide protection against hazard of suction entrapment or hair entrapment/entanglement. The pool outlet piping must be in accordance with the latest AS1926.3 standard Suction outlet covers and skimmers must have been tested and found to comply with the latest AS1926.3 standard or ASME/ANSI specification for Suction Fittings. -
Page 9: Operation
Operation NEVER run pump dry. Running pump dry may damage seals, causing leakage and flooding. Fill pump with water before starting motor. Freezing conditions will damage the unit, as water expands as it freezes. Ensure that the EnviroMAX 800 is located so that it is not prone to freezing, or ensure that the product is disconnected and dried of water during cold conditions. -
Page 10: Speed Selection
Operation 2. Speed Selection The EnviroMAX 800 comes pre-programmed with the following default speeds: Press for low speed Press for medium speed Press for high speed 1450RPM 2400RPM 2850RPM • Filtration and water • Cleaning with a suction • Backwashing filter. circulation cleaner •... -
Page 11: Priming
Operation 4. Priming Press the “STOP” button for 5 seconds to DISABLE/ENABLE prime time. (The power LED/ Green will light up and not blink when prime time is disabled), this function will be back to default when reset to default or press again this button for 5 second. -
Page 12: Service & Maintenance
Call fan. a Pentair Service Agent immediately, to prevent damage to the motor. Check pump and motor for insects and pest infestations and ensure that motor fins are clean of dust and dirt. -
Page 13: Troubleshooting
The EnviroMAX 800 should only be serviced by certified Pentair service agents. For best results and to ensure warranty is not void, insist on use of only genuine Pentair service parts. To avoid dangerous or fatal electrical shock hazard, turn OFF power to pump and remove plug from power outlet before working on pump. -
Page 14: Troubleshooting Guide
► Switch off the power to the pump. the casing and motor. tightened sufficiently; Tighten the casing bolts or replace worn mechanical seal the mechanical seal as required. requires replacing. Should problems persist, contact your nearest Pentair Water Service Agent. -
Page 15: Motor Flash Codes
► If a fault develops with the motor, the error light will flash a number of times as per the following table. Faults can be cleared by resetting power to the motor. If faults persist contact your Pentair service agent. -
Page 16: Spare Parts
Spare Parts... -
Page 17: Spare Parts
Spare Parts Description Part Number DIFFUSER See Diffuser & O-ring Kit DIFFUSER & O-RING KIT (INCLUDES ITEM 1, 7 & 13x7) 801423 IMPELLER 801426 O-RING COLLAR UNION 702192 COLLAR UNION 2” See Barrel Union Kit COLLAR UNION 2” SLIP See Barrel Union Kit BARREL UNION KIT (INCLUDES 3,4 &... - Page 18 NOTES: Notes...
- Page 19 NOTES: Notes...
- Page 20 Email: au.sales@pentair.com Web: www.pentairpool.com.au © Information contained here-in remains the property of Pentair Australia Pty Ltd. Any reproduction, display, publication, modification or distribution is strictly prohibited without the prior written permission of Pentair Australia Pty Ltd. Disclaimer: Every endeavour has been made to publish the correct details in this document. No responsibility will be taken for errors, omissions or changes in product descriptions, specifications.
