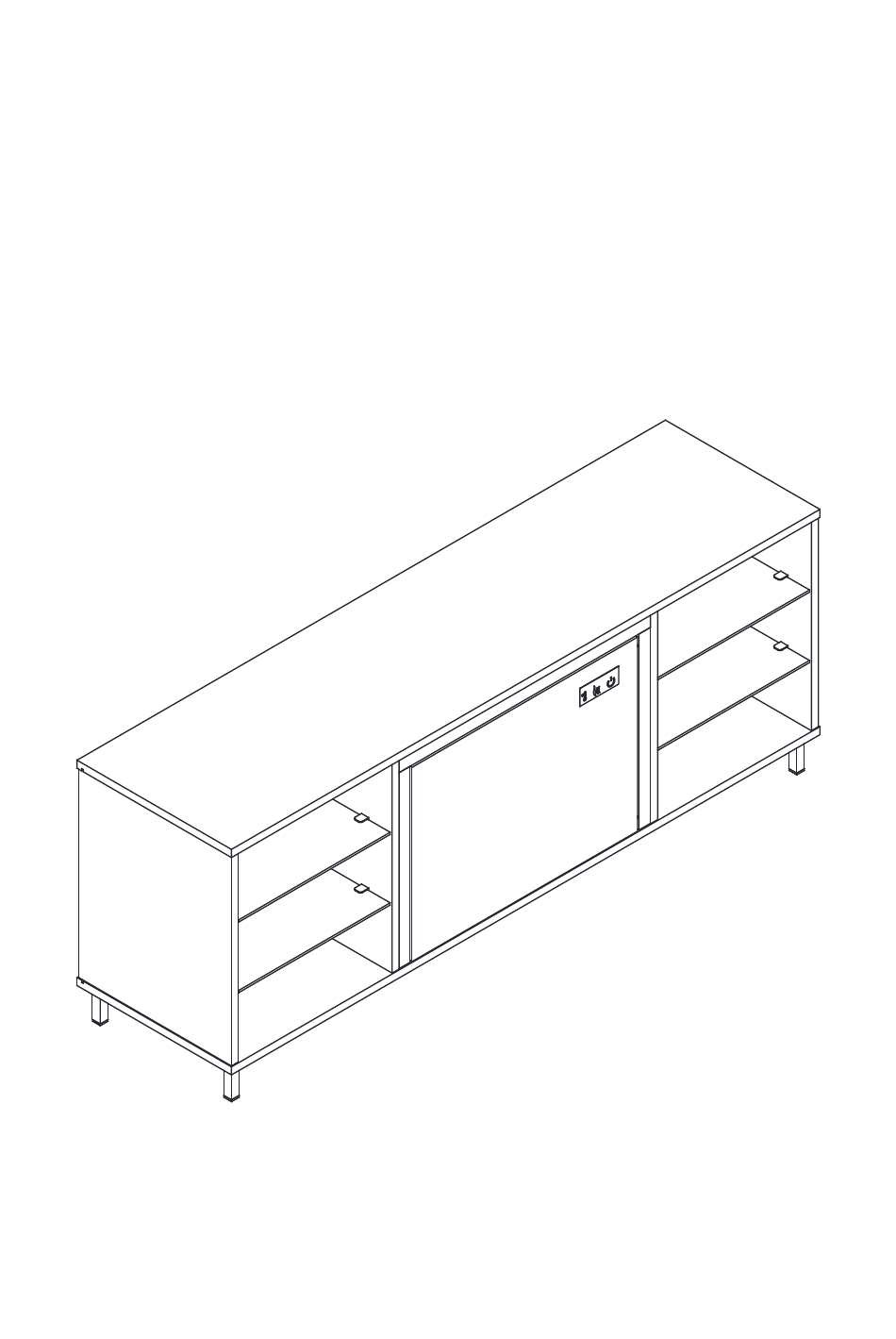

- Page 1 FIREPLACE TV STAND...
- Page 2 Table of Contents Assembly Tools Required Part Identifi cation No. 2 Phillips Screwdriver Tip Shown Actual Size Hardware Identifi cation Assembly Steps 5-24 Hammer Not actual size Page 2...
-
Page 3: Part Identification
Now you know Part Identifi cation our ABCs. ◆ While not all parts are labeled, some of the parts will have a label or an inked letter on the edge to help distinguish similar parts from each other. Use this part identification to help identify similar parts. TOP (1) END LEG (2) BOTTOM (1) -
Page 4: Hardware Identification
Hardware Identifi cation ◆ Screws are shown actual size. You may receive extra hardware with your unit. CAM SCREW -8 WOOD DOWEL- 10 HIDDEN CAM - 8 APPLIQUE CARD- 2 GLASS CLIP - 16 CLIP - 8 LWRENCH - 1 1-5/8”HEX HEAD SCREW - 4 1-3/8”... - Page 5 HOW TO USE A HIDDEN CAM & CAM SCREW OR CAM DOWEL NOTE: Various CAM SCREWS or a CAM DOWEL may be used. Turn the CAM SCREW or the surface of the part. Cam Screws Cam Dowel Push a HIDDEN CAM into the part.
- Page 6 Step 1 Assemble your unit on a carpeted floor or on the empty ◆ carton to avoid scratching your unit or the floor. Turn eight CAM SCREWS (1) into the TOP (A). ◆ 8 pcs Page 6...
- Page 7 Step 2 ◆ Push eight HIDDEN CAMS (2) into the ENDS (C and D) and the UPRIGHTS (E and F). Arrow ( 8 pcs ) Hole The arrow in the HIDDEN CAM must point toward the Arrow Page 7...
- Page 8 Step 3 Push the WOOD DOWELS (3) into the exact hole shown in ◆ the UPRIGHTS (E and F). Fasten the LEFT MOLDING (K) to the LEFT UPRIGHT (E). ◆ Fasten the RIGHT MOLDING (L) to the RIGHT UPRIGHT (F). ◆...
- Page 9 Step 4 Fasten sixteen GLASS CLIPS (5) to the ENDS (C and D) and ◆ UPRIGHTS (E and F). Use sixteen 1/2'' FLAT HEAD SCREWS 1/2" FLAT HEAD SCREW (16 used in this step) GLASS CLIPS (16 used in this step) Page 9...
- Page 10 Step 5 Fasten the TOP MOLDING (J) to the TOP (A). ◆ Use three 1-3/8''mm Pan Head Screws. NOTE: You should align each SCREW to the holes before completely ◆ tightening any of them. 1-3/8" PAN HEAD SCREW (3 used in this step) Page 10...
- Page 11 Step 6 Push the WOOD DOWELS (3) into the exact hole shown in ◆ the TOP (A). Fasten the UPRIGHTS (E and F) and the ENDS (C and D) to the TOP (A). ◆ Tighten eight HIDDEN CAMS. WOOD DOWEL (4 used in this step) Page 11...
- Page 12 Step 7 Slide the BACK (G) into the grooves of theLEFT UPRIGHT (E) ◆ and LEFT END (C). Slide the BACK (G) into the grooves of theRIGHT UPRIGHT (F) ◆ and the RIGHT END (D). Page 12...
- Page 13 Step 8 Push the WOOD DOWELS (3) into the exact hole shown in ◆ the UPRIGHTS (E and F) and the ENDS (C and D). Fasten (B) to the ENDS (C and D), UPRIGHTS (E and F). Use eight 1-3/8 " PAN HEAD SCREWS (9). ◆...
- Page 14 Step 9 Fasten the END LEGS (O) to the BOTTOM MOLDINGS (P). Use four 1-5/8'' ◆ HEX HEAD SCREWS (8) with the L-WRENCH. 1-5/8”HEX HEAD SCREW (LWRENCH - 1) (4 used in this step) Page 14...
- Page 15 Step 10 Fasten the LEGS to the BOTTOM (B). Use ten HEX HEAD SCREWS (10) ◆ with the L-WRENCH. 1-3/16”HEX HEAD SCREW (LWRENCH - 1) (10 used in this step) Page 15...
- Page 16 Step 11 ◆ Fasten the SHORT LEGS (Q) to the BOTTOM (B). Use eight 1/2'' PAN HEAD SCREWS. 1/2" PAN HEAD SCREW (8 used in this step) Page 16...
- Page 17 Step 12 Push eight CLIPS (6) between the BACKS (G) and connecting BOTTOM(B), ◆ ENDS (C and D), UPRIGHTS (E and F)and TOP(A). Then, fasten the CLIPS (10) with eight 5/8" FLAT HEAD SCREWS (13). ◆ 5/8"FIAT HEAD SCREW (8 used in this step) CLIP (8 used in this step) Page 17...
- Page 18 Step 13 Set the SHELVES (H) onto the GLASS CLIP (5). ◆ Fasten the screw of Glass CLIP to fixed the SHELVES (H) in position. ◆ Page 18...
- Page 19 Step 14 Please go to step 15 if you want to put the middle shelf (Z) as show in ◆ diagram #1 or go to step 20 if you want to put the insert as show in diagram #2. Ｄiagram #1 Ｄiagram #2 Page 19...
- Page 20 Step 15 Insert the METAL PINS (14) into the hole locations of your ◆ choice in the UPRIGHTS (E and F). Set the ADJUSTABLE SHELF (R) onto the METAL PINS. ◆ METAL PIN (4 used in this step) Page 20...
- Page 21 Step 16 Peel APPLIQUES from the APPLIQUE CARDS (4) and stick them onto each visible HIDDEN CAM. ◆ This completes assembly. Clean with a damp cloth. Wipe dry. Apply the WARNING LABEL (15) to the TOP (A). You should be able to read the label when the TV is removed from the ◆...
- Page 22 Step 17 Fasten the BRACKETS (X and Y) to the FIREPLACE (W). Use six 3/8" FLAT HEAD ◆ ◆ SCREWS (ZZ). WARNING CAUTION!! Please read all FIREPLACE instructions prior to installing or removing it from your unit. Do not plug the FIREPLACE into the power supply until it is installed and your unit is in its final position.
- Page 23 Step 18 Insert the FIREPLACE (W) in through the opening in the ◆ ◆ back of your unit. Fasten the FIREPLACE (W) to the MOLDINGS (, P and Q). Use two BLACK 3/8" PAN HEAD SCREWS (ZZ) through ◆ the BRACKETS on the FIREPLACE and into the holes in the MOLDINGS 3/8"...
- Page 24 Step 19 Peel APPLIQUES from the APPLIQUE CARDS (4) and stick them onto each visible HIDDEN CAM. ◆ ◆ This completes assembly. Clean with a damp cloth. Wipe dry. Apply the WARNING LABEL (15) to the TOP (A). You should be able to read the label when the TV is removed from the ◆...
