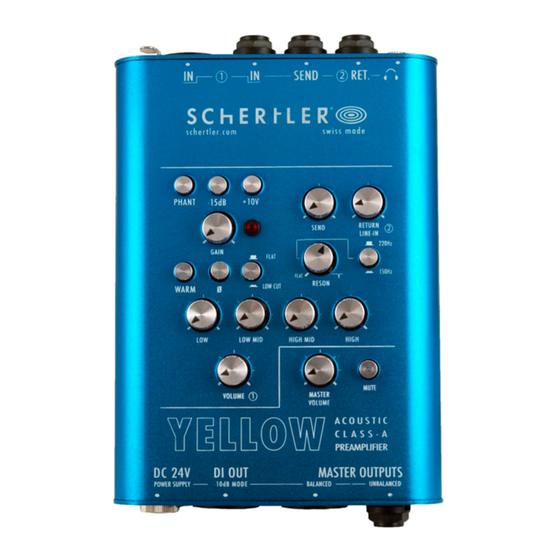

- Page 1 YELLOW • U S E R • M A N U A L • S I N G L E • C L A S S - A S I N G L E C H A N N E L P R E A M P L I F I E R V1 EN W W W .
- Page 2 SCHERTLER® products. YELLOW SINGLE has been specially designed to offer a compact high-quality solution that meets both studio YELLOW SINGLE is a sophisticated single-channel Class-A preamp. It has been specially developed to recording and live performance needs.
-
Page 3: Important Safety Information
Your preamp does not contain any “user serviceable” parts. Servicing and/or repairs should only be not operate normally, or has been dropped, please call your nearest SCHERTLER technical assistance center. carried out by qualified personnel. See MAINTENANCE AND REPAIR (below). -
Page 4: Practical Advice
SINGLE, they are not directly connected to ground (and are therefore “floating”), as they actually depend on the grounding connection of the device to which the YELLOW preamp is connected. If that device is not properly grounded, or generates a ground loop, it is possible to experience hum. Solving the problem requires attention to the device’s ground connection, usually via its GROUND LIFT switch. - Page 5 2. LINE IN: This enables the connection of instruments like guitars equipped with the SCHERTLER LYDIA system, electric guitars, bass guitars or STAT Series bowed instrument pickups. (If necessary, use the +10V 7.
- Page 6 10. WARM: When active, this low-pass filter dampens higher frequencies to produce a warmer sound when using bridge-mounted pickups such as SCHERTLER STAT Series transducers for violin, cello and double bass. 11. ø (PHASE): In the event of feedback, or unwanted effects, use the PHASE button.
-
Page 7: Signal Flow
Low Cut 2nd order High pass filter (cut freq. 120 Hz) Phantom power (nominal) 24 VDC Stat power (10 VDC) Preamp Class-A, no negative feedback, no integrated circuits Audio transformer Supply 24 VDC 210 mA regulated power supply PREAMPS YELLOW SINGLE... - Page 8 COPYRIGHT information, please read the FAQ section on the This manual is the property of SCHERTLER SA and, as such, is subject to Swiss copyright law. No part of SCHERTLER website. this manual should be reproduced, edited or distributed without prior consent from SCHERTLER.
- Page 9 VIA BEROLDINGEN 18 A C O U S T I C 6850 MENDRISIO SWITZERLAND · A U D I O · T +41 (0) 91630 0710 F +41 (0) 91630 0711 P R O D U C T S INFO@SCHERTLER.SWISS WWW.SCHERTLER.COM...
