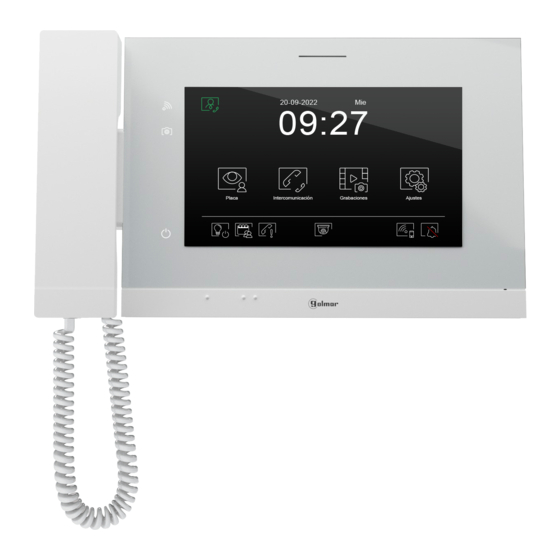

golmar CE-ART 7W/G2+ GUARD UNIT User Manual

Wi-fi connectivity 2-wire installation
Hide thumbs Also See for CE-ART 7W/G2+ GUARD UNIT:
Table of Contents

Advertisement

Quick Links

Download this manual
TECHNOLOGY
12 1
-0 -202
3
Jue
09 : 27
Placa
Intercomunicación
Grabaciones
Ajustes
CE-ART 7W/G2+
GUARD UNIT
Wi-Fi connectivity
2-wire installation
TCE-ART 7W/G2+ EN REV.0 23 V01
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CE-ART 7W/G2+ GUARD UNIT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for golmar CE-ART 7W/G2+ GUARD UNIT

Summary of Contents for golmar CE-ART 7W/G2+ GUARD UNIT

  • Page 1 TECHNOLOGY 12 1 -0 -202 09 : 27 Placa Intercomunicación Grabaciones Ajustes CE-ART 7W/G2+ GUARD UNIT Wi-Fi connectivity 2-wire installation TCE-ART 7W/G2+ EN REV.0 23 V01...

  • Page 2: Table Of Contents

    CE-ART 7W/G2+ GUARD UNIT CONTENTS Contents ..................................2 Set-up warnings .................................2 Compatible with the guard unit............................2 Characteristics................................3 System operation ...............................3 CE-ART 7W/G2+ guard unit..........................4 - 25 Description ..............................4 Installation ...............................5 nstallation terminals ............................5 Configuration switches.............................5 Configuration as guard unit of "building" and operation ..................

  • Page 3: Characteristics

    CE-ART 7W/G2+ GUARD UNIT CARACTERÍSTICAS Hands-free guard unit ( Monitor manos libres , (also allows communication with a handset) - 7" TFT colour screen - Touch screen for access and selection of menu function. Wifi transmission guard unit to call transfer to mobile smartphone (Only the master guard unit can activate Wi-Fi transmission).

  • Page 4: Ce-Art 7W/G2+ Guard Unit

    CE-ART 7W/G2+ GUARD UNIT CE-ART W/G 2+ GUARD UNIT Description UID: 2111n022g7qu DIP 1 to 7 codes Monitor address DIP 8 OFF = 0 EOL resistor ON = 1 A. Handset. G. ouch screen. B. Notification icons: Hidden (icon) door opening button.For the visually impaired, by default disabled (see p.

  • Page 5: Installation

    CE-ART 7W/G2+ GUARD UNIT CE-ART W/G 2+ GUARD UNIT Instal a l tion Avoid dusty or smoky environments or locations near sources of heat. For proper installation, use the template supplied with the product. 1. Position the top of the template at a height of 1.65m.

  • Page 6: Configuration As Guard Unit Of "Building" And Operation

    CE-ART 7W/G2+ GUARD UNIT CE-ART 7W/G2+ GUARD UNIT "Settings as guard unit of "building" The guard unit/s to set as guard unit of "buiding" (Up to 4 guard units), must be configured with address 1 and as master slave 1 slave 2 slave 3 .

  • Page 7: Configuration As Guard Unit Of "General Door Panels" And Operation

    CE-ART 7W/G2+ GUARD UNIT CE-ART 7W/G2+ GUARD UNIT Settings as guard unit of "general door panels" The guard unit/s to set as guard unit of "general door panels" (up to 4 guard units), must be configured with address 1 and as...

  • Page 8: Main Menu

    CE-ART 7W/G2+ GUARD UNIT CE-ART W/G 2+ GUARD UNIT Main menu 12 1 -0 -202 Thur 09:27 Door panel Intercom Recordings Settings If the device is in standby (screen off), touch any part of the screen to activate it and bring up the main menu. The device will return to standby mode after 20 seconds without activity.

  • Page 9: Settings Menu

    CE-ART 7W/G2+ GUARD UNIT CE-ART W/G 2+ GUARD UNIT Settings menu Settings Language Time & Date Ringtone Screen Do not disturb Storage WiFi About Use icon to return to the main menu. Select one of the 16 languages available for the user interface. Once selected, confirm by pressing icon , and the monitor returns to the settings menu.
  • Page 10 CE-ART 7W/G2+ GUARD UNIT CE-ART W/G 2+ GUARD UNIT Settings menu Set the date and time of the system, and the presentation format. Change the values by sliding up or down, and use the arrows to change the formats. Validate the changes made with icon...
  • Page 11 CE-ART 7W/G2+ GUARD UNIT CE-ART W/G 2+ GUARD UNIT Settings menu In the 'Do not disturb' settings, you can set a period of time during which the guard unit will not sound “HZ” p g 5) see note when receiving calls. To do so, select the do not disturb function and choose the time period.
  • Page 12 CE-ART 7W/G2+ GUARD UNIT CE-ART W/G 2+ GUARD UNIT Settings menu During the first startup of the device, we recommend resetting the Wi-Fi parameters using icon only the master guard unit can activate Wi-Fi transmission Note that The Wi-Fi menu shows information about the identity of the...

  • Page 13: Door Panel Call Screen

    CE-ART 7W/G2+ GUARD UNIT CE-ART W/G 2+ GUARD UNIT Door panel call screen 12 1 0 3 -0 -2 2 11:17 Door panel 1 This screen is displayed when receiving a call or pressing icon of the main menu. During a call, icon displayed on the screen will blink green (during the call process).

  • Page 14: Communication Screen

    CE-ART 7W/G2+ GUARD UNIT CE-ART W/G 2+ GUARD UNIT Communication screen 12 1 0 3 -0 -2 2 11:17 Door panel 1 This screen is displayed during a communication process. In the top centre of the screen, the date and time are shown and, on the right, the source of the image is displayed.

  • Page 15: Image And Communication Settings

    CE-ART 7W/G2+ GUARD UNIT CE-ART 7W/G2+ GUARD UNIT Image and communication settings During the display or call process, it is possible to adjust the image parameters (brightness, contrast and colour). Press icon and use the slider bars to adjust the settings. By pressing the icon again, the settings window will disappear.

  • Page 16: Intercom Menu

    CE-ART 7W/G2+ GUARD UNIT CE-ART W/G 2+ GUARD UNIT Intercom m From this menu, you can contact other guard unit/s (internal intercom) or with apartments (external intercom). To do so, your guard unit and the monitor called must have the intercom function activated from the 'Do not disturb' menu (see p.
  • Page 17 CE-ART 7W/G2+ GUARD UNIT Continued from previous page. CE-ART W/G 2+ GUARD UNIT Intercom menu Intercom External intercom. Enter the code of the apartment with which you wish to communicate using the keypad. To make a call, press icon , and the 'Call in progress' message will appear on...

  • Page 18: Recordings Menu

    CE-ART 7W/G2+ GUARD UNIT CE-ART W/G 2+ GUARD UNIT Recordings menu This menu displays the list of images saved in the guard unit or on the SD card if inserted. Press icon to access the video recordings saved on the SD card and icon to return to the images list.
  • Page 19 CE-ART 7W/G2+ GUARD UNIT Continued from previous page. CE-ART W/G 2+ GUARD UNIT Recordings menu Press icon to access the video recordings. Video 20-04-2020 1 :1 :23 11-04-2020 20:27:25 20-04-2020 12:27:22 08-04-2020 11:17:10 17-04-2020 16:41:33 04-04-2020 15:43:50 15-04-2020 09:55:42 01-04-2020...
  • Page 20 CE-ART 7W/G2+ GUARD UNIT Continued from previous page. CE-ART W/G 2+ GUARD UNIT Recordings menu To view an image recording, select it in the list. The recording will be displayed full screen. Use the scroll arrows to display the next or previous recording.

  • Page 21: Lost Call Screen

    CE-ART 7W/G2+ GUARD UNIT CE-ART W/G 2+ GUARD UNIT Lost call screen Show the list of lost calls made to the central guard unit from apartments or door panels, indicating the call code, number of the apartment, name of the resident, date and time of when the call. Allows you to answer and delete from the list of lost calls (recorded in the unit's memory, maximum of 100 lost call records).
  • Page 22 CE-ART 7W/G2+ GUARD UNIT Continued from previous page. CE-ART W/G 2+ GUARD UNIT Lost call screen To answer the lost call of a door panel, ress on the register displayed on the screen "00001" detailed as (address door panel) or (door panel call) see page 21, making an video-spy on the selected door panel. To establish...

  • Page 23: Contacts List And Configuration "Nexa_Code_Panel.csv" File

    CE-ART 7W/G2+ GUARD UNIT CE-ART W/G 2+ GUARD UNIT Contacts list (guard unit of "building") Show the residents contacts list in the building, indicating the resident name/ flat and apartment call code. Press on one of the contacts to make an intercom call to the selected apartment. required to insert micro SD card with file "NEXA_CODE_PANEL.CSV", see page 25 for configuration).
  • Page 24 CE-ART 7W/G2+ GUARD UNIT Continued from previous page. CE-ART W/G 2+ GUARD UNIT Contacts list (guard unit of "general door panels") Show the residents contacts list in the installation, indicating the building number, resident name/flat and the apartment call code. Press on one of the contacts to make an intercom call to the selected apartment (required to insert micro SD card with file "NEXA_CODE_PANEL.CSV", see page 25 for configuration...
  • Page 25 CE-ART 7W/G2+ GUARD UNIT Continued from previous page. CE-ART 7W/G2+ GUARD UNIT Configuration "NEXA_CODE_PANEL.CSV" file ( guard unit of Building " ") Configure in "NEXA_CODE_PANEL.CSV" file, only the fields of the following parameters: Position, resident name, backbone, apartment and call code.

  • Page 26: Cleaning The Monitor

    CE-ART 7W/G2+ GUARD UNIT CLEANING THE MONITOR - Do not use solvents, detergents or cleaning products that contain acids, vinegar or abrasive components. - Use a soft damp cloth (not wet) that sheds no fibres. - Always wipe the monitor in the same direction, from top to bottom.

  • Page 27: Special Codes

    CE-ART 7W/G2+ GUARD UNIT SPECIAL CODES The enabling of some functions, as well as the modification of some factory parameters, can be carried out by entering special codes. To do so, the installer menu must be accessed from the monitor. Go to the 'About' screen in the settings menu (p.
  • Page 28 CE-ART 7W/G2+ GUARD UNIT Continued from previous page. SPECIAL CODES Configura tion as a guard unit of "Building". (Configur only on the master monitor End guard monitor Guard monitor Factory default 5000 5001 5000 (end guard monitor) To define whether the guard unit is master, slave 1, slave 2 or slave 3.

  • Page 29: Installation Diagrams With Guard Unit Of "Building

    ART 7W/G2+ monitor with WiFi activated (only the master monitor of each apartment) FA-ART 7W power supply unit required. ( ) 4 CE-ART 7W/G2+ guard unit with WiFi activated (only the master guard unit) FA-ART 7W power supply unit required. ( ) 5...

  • Page 30: Installation Diagrams With Guard Unit Of "General Door Panels" And Operation Modes (Block Mode)

    During the configuration of the guard unit of (building), see page 7 to configure the address of the monitor(s) of apartment 1 for each one of the buildings. ( ) 3 CE-ART 7W/G2+ guard unit with WiFi activated (only the master guard unit) FA-ART 7W power supply unit required. Continued overleaf...
  • Page 31 Example of installation with 4 buildings, 128 monitors, 4 RD-G2+ “block mode”, 16 interior door panels and 4 general door panels. BUILDING 1 BUILDING 2 BUILDING 3 BUILDING 4 ART 4/ ART 4/ ART 4/ ART 4/ ART 4/ ART 4/ ART 4/ ART 4/ ART 7H/...
  • Page 32 BUILDING 1 BUILDING 2 BUILDING 3 BUILDING 4 ART 4/ ART 4/ ART 4/ ART 4/ ART 4/ ART 4/ ART 4/ ART 4/ ART 7H/ ART 7H/ ART 7H/ ART 7H/ ART 7H/ ART 7H/ ART 7H/ ART 7H/ ART 7W/ ART 7W/ ART 7W/...

  • Page 33: Notes

    CE-ART 7W/G2+ GUARD UNIT NOT S:...

  • Page 34: Compliance

    C/ Silici, 13 08940- Cornellá de Llobregat SPAIN Golmar se reserva el derecho a cualquier modificación sin previo aviso. Golmar se réserve le droit de toute modification sans préavis. Golmar reserves the right to make any modifications without prior notice.
