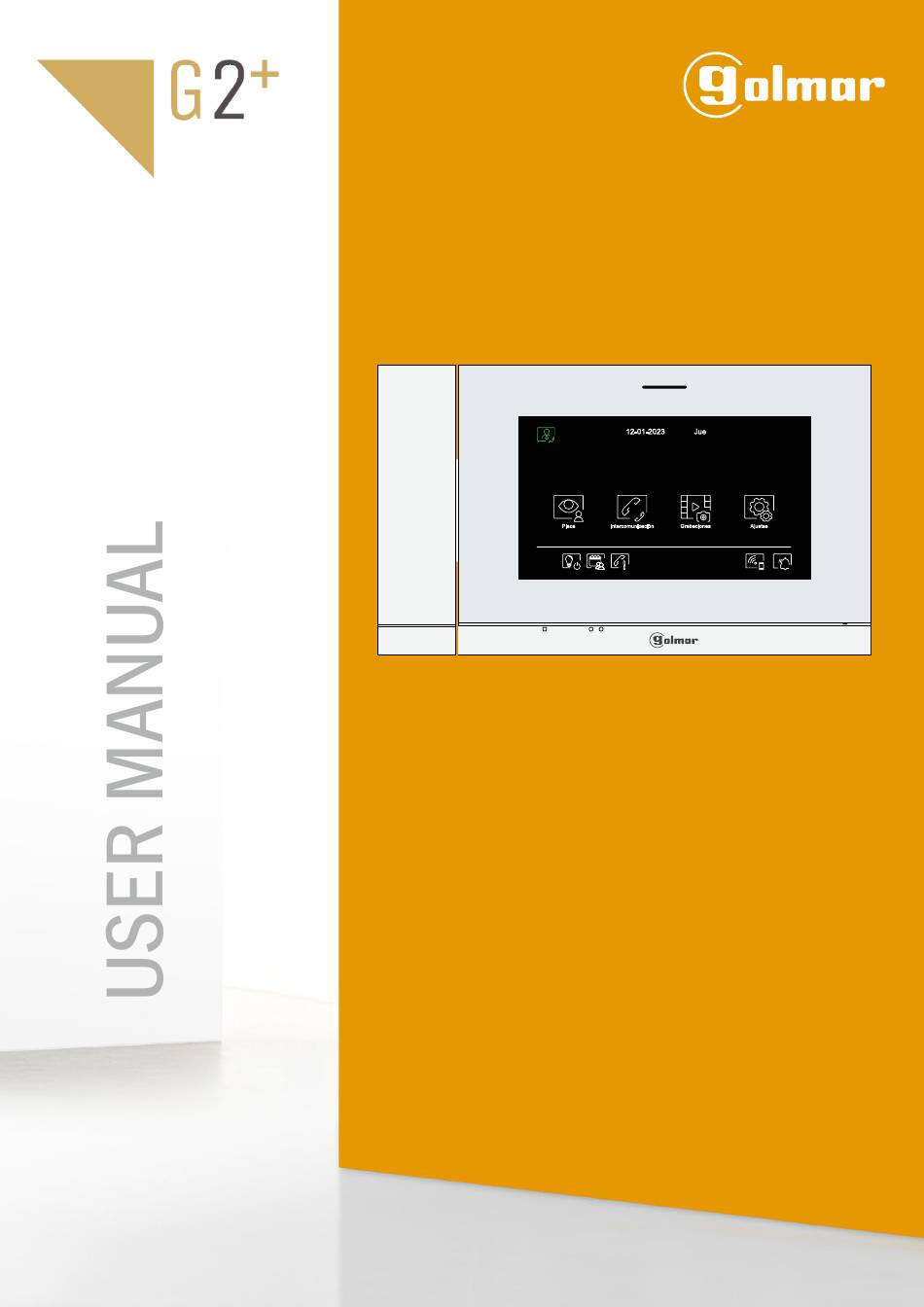

- Page 1 TECHNOLOGY 12 1 -0 -202 09 : 27 Placa Intercomunicación Grabaciones Ajustes CE-ART 7/G2+ Guard Unit 2-wire installation TCE-ART 7/G2+ EN REV.0 23 V01...
-
Page 2: Table Of Contents
- Do not place in humid, dusty or smoky locations, or near sources of heat. - Before connecting the device to the mains, check the connections between the door panel, power supply unit, distributors monitors and guard unit(s) . se the Golmar RAP-GTWIN/HF cable (2x1mm²). - Always follow the instructions contained in this manual. -
Page 3: Characteristics
CE-ART 7/G2+ GUARD UNIT CHARACTERISTICS Hands-free guard unit ( Monitor manos libres , (also allows communication with a handset) - 7" TFT colour screen - Touch screen for access and selection of menu function. - Guard unit with simple installation (non-polarised 2 wires bus). Guard unit of (building) or guard unit (general door panels), only one mode of guard unit in the installation. -
Page 4: Ce-Art 7/G2+ Guard Unit
CE-ART 7/G2+ GUARD UNIT CE-ART /G2 + GUARD UNIT Description A. Handset. G. Touch screen. B. Notification icons: Hidden (icon) door opening button.For the visually impaired, by default disabled (see p. 27 8 -2 'special Power on indicator. codes'). Do not disturb. I. -
Page 5: Installation
CE-ART 7/G2+ GUARD UNIT CE-ART /G2 + GUARD UNIT Instal a l tion Avoid dusty or smoky environments or locations near sources of heat. For proper installation, use the template supplied with the product. 1. Position the top of the template at a height of 1.65m. 2. -
Page 6: Configuration As Guard Unit Of "Building" And Operation
CE-ART 7/G2+ GUARD UNIT CE-ART 7/G2+ GUARD UNIT "Settings as guard unit of "building" The guard unit/s to set as guard unit of "buiding" (Up to 4 guard units), must be configured with address 1 and as master slave 1 slave 2 slave 3 . -
Page 7: Configuration As Guard Unit Of "General Door Panels" And Operation
CE-ART 7/G2+ GUARD UNIT CE-ART 7/G2+ GUARD UNIT Settings as guard unit of "general door panels" The guard unit/s to set as guard unit of "general door panels" (up to 4 guard units), must be configured with address 1 and as master slave 1 slave 2 slave 3 , the installation must be connected all guard units, monitors, telephones and general door panels (the building/s door panels with EL632/G2+ SE sound module, must be... -
Page 8: Main Menu
CE-ART 7/G2+ GUARD UNIT CE-ART /G2 + GUARD UNIT Main menu 12 1 -0 -202 Thur 09:27 Door panel Intercom Recordings Settings If the device is in standby (screen off), touch any part of the screen to activate it and bring up the main menu. The device will return to standby mode after 20 seconds without activity. -
Page 9: Settings Menu
CE-ART 7/G2+ GUARD UNIT CE-ART /G2 + GUARD UNIT Settings menu Settings Language Time & Date Ringtone Screen Do not disturb Storage WiFi About Use icon to return to the main menu. Select one of the 16 languages available for the user interface. Once selected, confirm by pressing icon , and the monitor returns to the settings menu. - Page 10 CE-ART 7/G2+ GUARD UNIT CE-ART /G2 + GUARD UNIT Settings menu Set the date and time of the system, and the presentation format. Change the values by sliding up or down, and use the arrows to change the formats. Validate the changes made with icon , and guard unit will return to the settings menu.
- Page 11 CE-ART 7/G2+ GUARD UNIT CE-ART /G2 + GUARD UNIT Settings menu In the 'Do not disturb' settings, you can set a period of time during which the guard unit will not sound “HZ” p g 5) see note when receiving calls. To do so, select the do not disturb function and choose the time period.
- Page 12 CE-ART 7/G2+ GUARD UNIT CE-ART /G2 + GUARD UNIT Settings menu The 'About' screen provides information about the device, such as the guard unit firmware version and its address. Press 'Instructions manual' to display the QR code that will take you to the updated downloads of this instruction manual.
-
Page 13: Door Panel Call Screen
CE-ART 7/G2+ GUARD UNIT CE-ART /G2 + GUARD UNIT Door panel call screen 12 1 0 3 -0 -2 2 11:17 Door panel 1 This screen is displayed when receiving a call or pressing icon of the main menu. During a call, icon displayed on the screen will blink green (during the call process). -
Page 14: Communication Screen
CE-ART 7/G2+ GUARD UNIT CE-ART /G2 + GUARD UNIT Communication screen 12 1 0 3 -0 -2 2 11:17 Door panel 1 This screen is displayed during a communication process. In the top centre of the screen, the date and time are shown and, on the right, the source of the image is displayed. -
Page 15: Image And Communication Settings
CE-ART 7/G2+ GUARD UNIT CE-ART 7/G2+ GUARD UNIT Image and communication settings During the display or call process, it is possible to adjust the image parameters (brightness, contrast and colour). Press icon and use the slider bars to adjust the settings. By pressing the icon again, the settings window will disappear. -
Page 16: Intercom Menu
CE-ART 7/G2+ GUARD UNIT CE-ART /G2 + GUARD UNIT Intercom m From this menu, you can contact other guard unit/s (internal intercom) or with apartments (external intercom). To do so, your guard unit and the monitor called must have the intercom function activated from the 'Do not disturb' menu (see p. - Page 17 CE-ART 7/G2+ GUARD UNIT Continued from previous page. CE-ART /G2 + GUARD UNIT Intercom menu Intercom External intercom. Enter the code of the apartment with which you wish to communicate using the keypad. To make a call, press icon , and the 'Call in progress' message will appear on guard unit screen The master monitor of the apartment called will display the 'Incoming call' message, followed by the...
-
Page 18: Recordings Menu
CE-ART 7/G2+ GUARD UNIT CE-ART /G2 + GUARD UNIT Recordings menu This menu displays the list of images saved in the guard unit or on the SD card if inserted. Press icon to access the video recordings saved on the SD card and icon to return to the images list. - Page 19 CE-ART 7/G2+ GUARD UNIT Continued from previous page. CE-ART /G2 + GUARD UNIT Recordings menu Press icon to access the video recordings. Video 20-04-2020 1 :1 :23 11-04-2020 20:27:25 20-04-2020 12:27:22 08-04-2020 11:17:10 17-04-2020 16:41:33 04-04-2020 15:43:50 15-04-2020 09:55:42 01-04-2020 22:11:00 12-04-2020 23:00:00...
- Page 20 CE-ART 7/G2+ GUARD UNIT Continued from previous page. CE-ART /G2 + GUARD UNIT Recordings menu To view an image recording, select it in the list. The recording will be displayed full screen. Use the scroll arrows to display the next or previous recording.
-
Page 21: Lost Call Screen
CE-ART 7/G2+ GUARD UNIT CE-ART /G2 + GUARD UNIT Lost call screen Show the list of lost calls made to the central guard unit from apartments or door panels, indicating the call code, number of the apartment, name of the resident, date and time of when the call. Allows you to answer and delete from the list of lost calls (recorded in the unit's memory, maximum of 100 lost call records). - Page 22 CE-ART 7/G2+ GUARD UNIT Continued from previous page. CE-ART /G2 + GUARD UNIT Lost call screen To answer the lost call of a door panel, ress on the register displayed on the screen "00001" detailed as (address door panel) or (door panel call) see page 21, making an video-spy on the selected door panel. To establish communication, press the icon (lift the handset), the communication will end after 90 seconds or by pressing the icon...
-
Page 23: Contacts List And Configuration "Nexa_Code_Panel.csv" File
CE-ART 7/G2+ GUARD UNIT CE-ART /G2 + GUARD UNIT Contacts list (guard unit of "building") Show the residents contacts list in the building, indicating the resident name/ flat and apartment call code. Press on one of the contacts to make an intercom call to the selected apartment. required to insert micro SD card with file "NEXA_CODE_PANEL.CSV", see page 25 for configuration). - Page 24 CE-ART 7/G2+ GUARD UNIT Continued from previous page. CE-ART /G2 + GUARD UNIT Contacts list (guard unit of "general door panels") Show the residents contacts list in the installation, indicating the building number, resident name/flat and the apartment call code. Press on one of the contacts to make an intercom call to the selected apartment (required to insert micro SD card with file "NEXA_CODE_PANEL.CSV", see page 25 for configuration "max.
- Page 25 CE-ART 7/G2+ GUARD UNIT Continued from previous page. CE-ART 7/G2+ GUARD UNIT Configuration "NEXA_CODE_PANEL.CSV" file ( guard unit of Building " ") Configure in "NEXA_CODE_PANEL.CSV" file, only the fields of the following parameters: Position, resident name, backbone, apartment and call code. Important: -Only configure the fields of the following parameters and neither modify row no.
-
Page 26: Cleaning The Monitor
CE-ART 7/G2+ GUARD UNIT CLEANING THE MONITOR - Do not use solvents, detergents or cleaning products that contain acids, vinegar or abrasive components. - Use a soft damp cloth (not wet) that sheds no fibres. - Always wipe the monitor in the same direction, from top to bottom. - After cleaning the monitor, remove any moisture with a soft dry cloth that sheds no fibres. -
Page 27: Special Codes
CE-ART 7/G2+ GUARD UNIT SPECIAL CODES The enabling of some functions, as well as the modification of some factory parameters, can be carried out by entering special codes. To do so, the installer menu must be accessed from the monitor. Go to the 'About' screen in the settings menu (p. - Page 28 CE-ART 7/G2+ GUARD UNIT Continued from previous page. SPECIAL CODES To define whether the guard unit is master, slave 1, slave 2 or slave 3. Master Slave 1 Slave 2 Slave Factory setting 0550 0551 0552 0553 0550 ( master Activate/deactivate the hidden start/stop communication and door opening button on a monitor (hidden (buttons located above raised dots for the visually impaired).
-
Page 29: Installation Diagrams With Guard Unit Of "Building
CE-ART 7/G2+ GUARD UNIT INSTAL A L TION DIAGRAM WITH GUARD UNIT OF (BUILDING): Video door entry system with monitor 7W/G2+, 1 CE-ART 7/G2+, 8 distributors D4L- 2 & Golmar d.c lock release. ART 7W/G2+ ART 7W/G2+ Master Master FA-ART 7W FA-ART 7W... -
Page 30: Installation Diagrams With Guard Unit Of "General Door Panels" And Operation Modes (Block Mode)
CE-ART 7/G2+ GUARD UNIT INSTAL A L TION DIAGRAM WITH GUARD UNIT OF (GENERAL DOOR PANELS): Insta a ll tion of video door entry system with 3 buildings, 96 monitors (serie ART 4 / ART 7 / ART 7W) , 1 CE-ART 7/G2+ &... - Page 31 Example of installation with 4 buildings, 128 monitors, 4 RD-G2+ “block mode”, 16 interior door panels and 4 general door panels. BUILDING 1 BUILDING 2 BUILDING 3 BUILDING 4 ART 4/ ART 4/ ART 4/ ART 4/ ART 4/ ART 4/ ART 4/ ART 4/ ART 7H/...
- Page 32 BUILDING 1 BUILDING 2 BUILDING 3 BUILDING 4 ART 4/ ART 4/ ART 4/ ART 4/ ART 4/ ART 4/ ART 4/ ART 4/ ART 7H/ ART 7H/ ART 7H/ ART 7H/ ART 7H/ ART 7H/ ART 7H/ ART 7H/ ART 7W/ ART 7W/ ART 7W/...
-
Page 33: Notes
CE-ART 7/G2+ GUARD UNIT NOT S:... -
Page 34: Compliance
C/ Silici, 13 08940- Cornellá de Llobregat SPAIN Golmar se reserva el derecho a cualquier modificación sin previo aviso. Golmar se réserve le droit de toute modification sans préavis. Golmar reserves the right to make any modifications without prior notice.
