Page 1

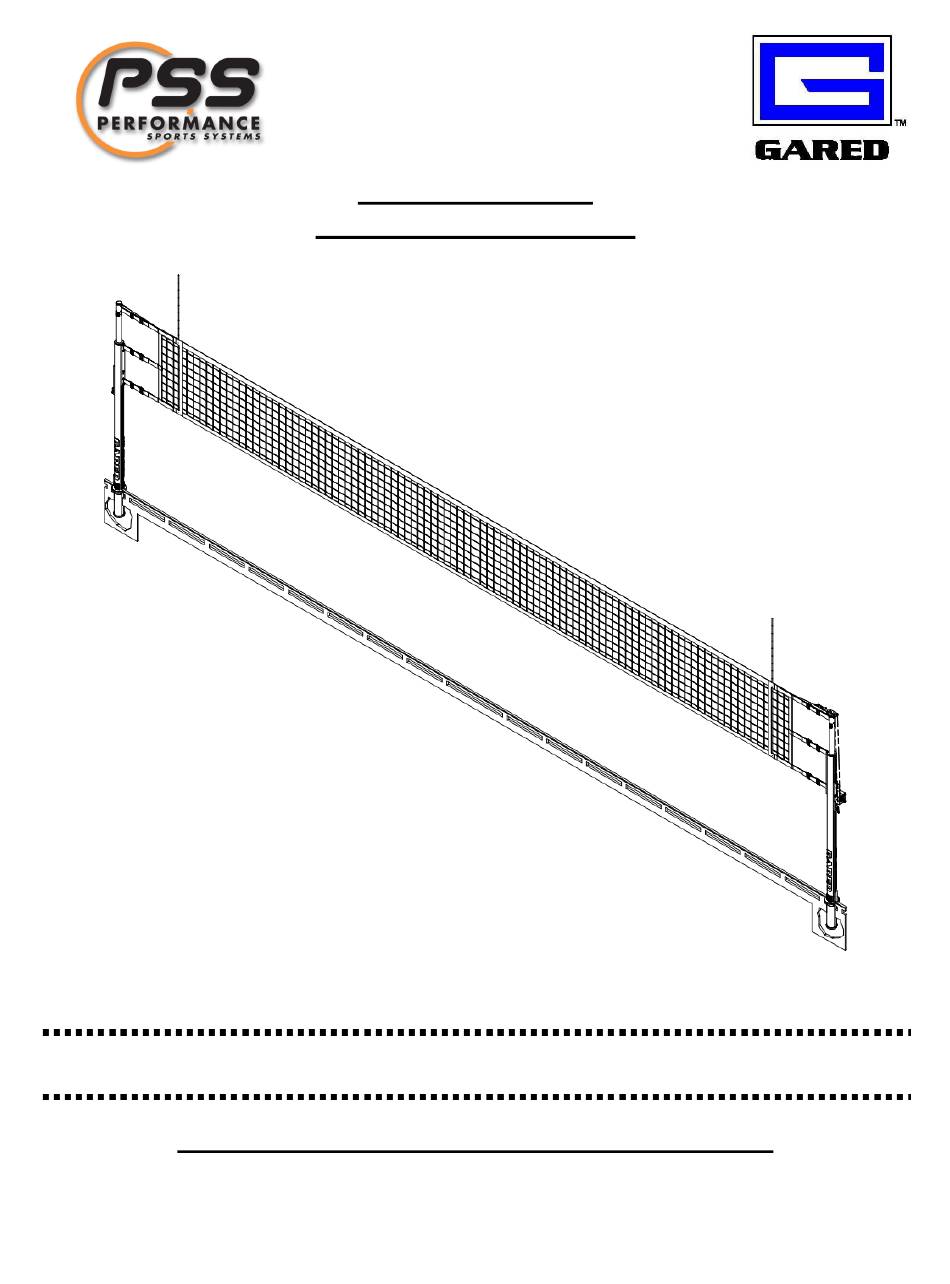

Model: 7300 series Master Volleyball System Installation, Operation, and Maintenance Instructions Please read all instructions before attempting installation or operation of these units SAVE THESE INSTRUCTIONS FOR FUTURE USE UBLICATION 601751797 RevB 10/24/2022...
Page 2
7300 Master Volleyball System Table of Contents Section Page No. Introduction Parts List by Sub-Assembly Specifications Floor Sleeve Installation Floor Cover Installation Post & Net Installation Instructions 10-12 Maintenance Check Sheet...
Page 3
Bill of Materials are present prior to beginning assembly and setup. Please do not substitute for factory parts. Please contact the PSS or Gared Sports customer service department and allow them to determine if substitute parts are acceptable.
Page 4
7300 Master Volleyball System 7315 WINCH POST PART ITEM QTY DESCRIPTION NUMBER 1010-22-00 TELESCOPIC VOLLEYBALL POST 1008-22-00 TELESCOPE TUBE 604752137C 7300 WINCH RAIL ASSEMBLY 604752138 7300 INNER RAIL ASSEMBLY 601654153C TOP CAP ROLLER CARRIAGE ASSEMBLY 604506673 WINCH, WORM GEAR KIT 601651827 RAIL LOCK LEVER 1280-30-00...
Page 5
7300 Master Volleyball System MODEL 7300 MASTER VB SYSTEM MODEL 7305 MASTER VB SYSTEM less SLEEVES AND COVERS...
Page 6
7300 Master Volleyball System MODEL 7302 MASTER TWO COURT VB SYS MODEL 7307 MASTER TWO COURT VB SYS less SLEEVES AND COVERS...
Page 7
1. Mark (2) points on the floor exactly 36 feet apart (refer to most recent set of architectural prints for exact locations within the gym). These represent the CENTERS of each sleeve installation. If sleeves are to be more or less than 36 feet apart, contact a PSS or Gared representative for information regarding this alteration.
Page 8
7300 Master Volleyball System Note: A skilled woodworker will be needed for the following operation! Using a router and template, make a counterbore 6-7/16” diameter by 9/16” deep centered over the original 5” hole in the floor, to receive the brass floor cover. A template can be made from a piece of Masonite or thick plastic.
Page 10
7300 Master Volleyball System Counterbore Details and Floor Cover Installation...
Page 11
7300 Master Volleyball System Post and Net Installation Instructions 1. Lift and rotate the floor covers out of the way. Insert the Winch Post and End Post. 2. Lay out the net in the approximate position between the two posts. 3.
Page 12
7300 Master Volleyball System b. The net cable tension does not make the net play livelier as the net can slide from side to side on the net cable. This is accomplished by adjusting the net straps as described in step #7. 8.
Page 13
7300 Master Volleyball System 13. To take volleyball system down; a. Remove antenna. b. Unhook net straps from posts at both ends. c. Crank winch until net cable can be unhooked from snap links. d. Fold net up and transport net and posts to storage. 7310 End Post with Net 7315 Winch Post with Net...
Page 14
7300 Master Volleyball System Maintenance 1. General inspection of equipment when used should be performed to ensure no catastrophic failures have occurred during the course of use between yearly inspections. 2. It is recommended that yearly inspections be conducted to determine if any bolts or any other hardware has become worn or loosened.
Page 15
Gared Holdings, LLC Performance Sports Systems Gared Sports 9200 E. 146 Street 9200 E. 146 Street Noblesville, IN 46060 Noblesville, IN 46060 800-848-8034 800-325-2682 www.perfsports.com www.garedsports.com...
