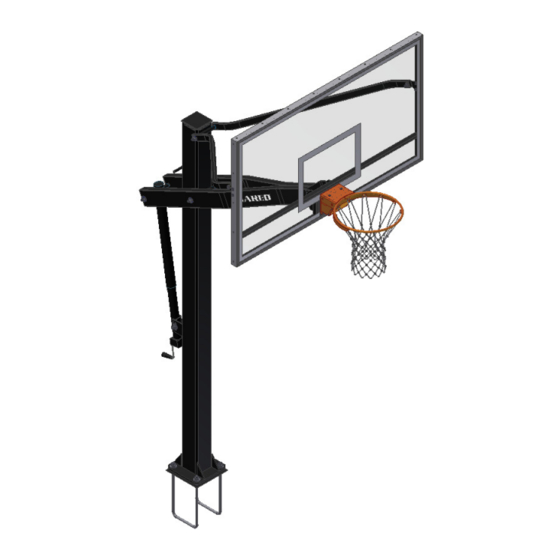

Collegiate Jam Adjustable Basketball System
Installation, Operation and Maintenance Instructions
Please read all instructions before attempting installation or operation of these units
SAVE THESE INSTRUCTIONS FOR FUTURE USE
P
N
.
UBLICATION
O
4 5 1 7 5 2 5 7 9
Models: GP8G60DM & GP8A60DM
June 18, 2012
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for PSS Gared GP8G60DM
Summary of Contents for PSS Gared GP8G60DM
- Page 1 Collegiate Jam Adjustable Basketball System Models: GP8G60DM & GP8A60DM Installation, Operation and Maintenance Instructions Please read all instructions before attempting installation or operation of these units SAVE THESE INSTRUCTIONS FOR FUTURE USE June 18, 2012 UBLICATION 4 5 1 7 5 2 5 7 9...
-
Page 2: Table Of Contents
Gared, Performance Sports Systems, or one of our authorized dealers. When contacting Gared or PSS, please have information regarding the dealer/installer who sold the unit, the name of the project, and any... -
Page 3: Safety
Collegiate Jam Adjustable Basketball System SAFETY Read and understand the following warnings to prevent possible personal injury and potential damage to the equipment during assembly, setup, and operation. Before proceeding with assembly, read all instructions and assembly procedures. Make sure all parts have been received and are not damaged. -
Page 4: Specifications
Collegiate Jam Adjustable Basketball System SPECIFICATIONS DK > 'W ' '> ^^ Zz>/... -
Page 5: Parts Checklist
Please refer to your packing slip to verify the correct board and goal has been received. Contact Gared Customer Service at 800-325-2682 or PSS Customer Service at 800-848-8034 for assistance with replacement of any parts missing or damaged. KWd/KE > W ^ DK >... - Page 6 Collegiate Jam Adjustable Basketball System 453052572 ARM PKG, GP8-DM /d D W Zd EhD Z ^Z/Wd/KE t ^, Z &> d >Z/E >< t ^, Z &> d >Z/E >< > ' Z t,/d > , /',d :h^d 'W D D Eh > /E^d KW Z 'W D >/&d/E' ZD t >D Ed 'W D dh &KZD hWW Z ZD 'W D Z < d K Z DKhEd/E'...
-
Page 7: Installation
Collegiate Jam Adjustable Basketball System INSTALLATION Tools and Materials Required for Assembly: 1. (2) Adjustable Wrenches. 2. ¼”, ½”, ”, ”, ¾”, , 1- ” Wrench 3. Phillips Head Screwdriver 4. Electric Drill 5. 11/64” Drill Bit 6. Tape Measure 7. - Page 8 Collegiate Jam Adjustable Basketball System Template Plate Assembly Use the illustration below to assemble the template plate and U-bolts. Step 3: Securely tighten the top nuts against the plate. Step 2: Insert the U-bolts up through the template plate.
- Page 9 Collegiate Jam Adjustable Basketball System Use the illustration below to dig and prepare the hole for anchoring the template plate & U-bolt assembly. This hole is designed to use 1/2 yard of concrete.
- Page 10 Collegiate Jam Adjustable Basketball System Step 3. Set the U-bolt assembly in the concrete as shown in the illustration. Agitate the Template plate and U-bolt assembly repeatedly to eliminate air bubbles in the concrete. Make sure the template plate is resting on the level and finished concrete.
- Page 11 Collegiate Jam Adjustable Basketball System Install Post 1. Concrete should be cured for 72 hours before starting installation step. 2. Place (4) ¾” Flat washer on top of the (4) ¾-10 Nut. 3. Raise and place the main post over the U-bolts as shown below. The post is heavy, so use at least two people for this operation.
- Page 12 Collegiate Jam Adjustable Basketball System Install Lifting Arm and Actuator Follow the steps below to assemble the unit in the proper sequence. See the instructions on the following pages for more detailed information. 1. Install 16mm Flanged Bushing, #33, into Upper Arm Pivot &...
- Page 13 Collegiate Jam Adjustable Basketball System 2. Attach the Lifting Arm, #26, to the Post Weldment using 5/8 x 13” Bolt, #36, and hardware indicated. Allow Lifting Arm to rest on Arm Stop when bolt is inserted. Tighten Lock Nut to remove clearance only.
- Page 14 Collegiate Jam Adjustable Basketball System Install Upper Arms Attach Upper Arms, #27, to the Upper Arm Pivot using 5/8 x 10” Bolt, #35, and hardware indicated. There are different size holes in each end of the arm. Use the larger (5/8’ diameter) hole. Allow arms to swing vertically down at this time Prepare Board for Installation 1.
- Page 15 Collegiate Jam Adjustable Basketball System 1. Attach Board Mounting Bracket, #28, to back side of Board using 3/8” Carriage Bolt, #34, and 3/8” Wiz Lock Nut, #43, as shown. 2. Remove Goal Cover to gain access to Goal mounting hardware. Attach Goal to front side of Board using 3/8”...
- Page 16 Collegiate Jam Adjustable Basketball System Install Board 1. Install a 12 mm Flanged Bushing, #29, on each side of Lifting Arm, #26. 2. Attach the Backboard and Goal with the (2) 7/16 x 1 ¾” Bolt, #38, and hardware as indicated. It is easiest to mount the board with the supporting arms in the full down position.
- Page 17 Collegiate Jam Adjustable Basketball System Level Goal 1. Check the level of the bottom of the board. If adjustments need to be made, loosen 3/8-16 Whiz Lock Nut, #34, and the 3/8” goal hardware. Level board and retighten Whiz Lock Nuts. 2.
- Page 18 Collegiate Jam Adjustable Basketball System Install Height Adjusting Decal 1. Crank Goal to the 10’-0” position. Crank counter-clockwise to raise goal. Measure from the playing surface to the top of the goal ring. Using a piece of tape, mark the location of the lower edge of the rain shield.
-
Page 19: Optional Post And Backboard Padding
Collegiate Jam Adjustable Basketball System Installing Optional Padding Note: The padding options shown below are purchased separately. - Page 20 Collegiate Jam Adjustable Basketball System The following illustration shows how to attach the optional LSCE60 Pro Mold Recreational Backboard Padding (if purchased). The padding may be attached before or after the backboard has been mounted in.
- Page 21 Collegiate Jam Adjustable Basketball System...
- Page 22 Gared Holdings, LLC Performance Sports Systems Gared Sports 9200 E. 146 Street 707 North 2 Street Noblesville, IN 46060 St. Louis, MO 63102 800-848-8034 800-325-2682 www.perfsports.com www.garedsports.com...
