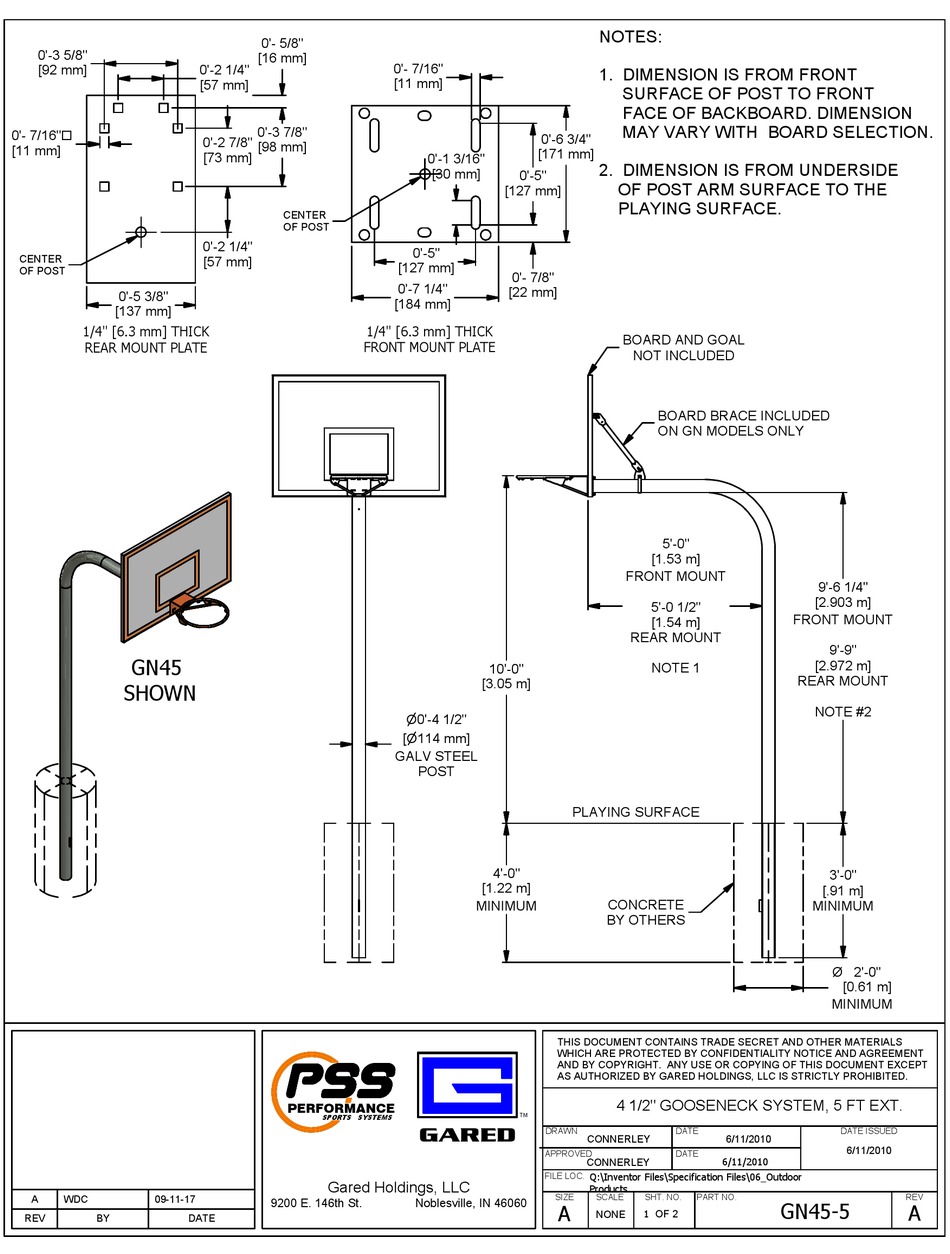

PSS GARED GN45-5 Quick Start Manual

0'-3 5/8"
[92 mm]
o
0'- 7/16"
[11 mm]
CENTER
OF POST
0'-5 3/8"
[137 mm]
1/4" [6.3 mm] THICK
REAR MOUNT PLATE
GN45
SHOWN
A WDC 09-11-17
REV BY DATE
0'- 5/8"
[16 mm]
0'-2 1/4"
[57 mm]
0'-3 7/8"
0'-2 7/8"
[98 mm]
[73 mm]
CENTER
OF POST
0'-2 1/4"
[57 mm]
1/4" [6.3 mm] THICK
FRONT MOUNT PLATE
PERFORMANCE
SPORTS SYSTEMS
Gared Holdings, LLC
9200 E. 146th St.
0'- 7/16"
[11 mm]
0'-6 3/4"
[171 mm]
0'-1 3/16"
[30 mm]
0'-5"
[127 mm]
0'-5"
[127 mm]
0'- 7/8"
0'-7 1/4"
[22 mm]
[184 mm]
10'-0"
[3.05 m]
n
0'-4 1/2"
n
[ 114 mm]
GALV STEEL
POST
PLAYING SURFACE
4'-0"
[1.22 m]
MINIMUM
THIS DOCUMENT CONTAINS TRADE SECRET AND OTHER MATERIALS
WHICH ARE PROTECTED BY CONFIDENTIALITY NOTICE AND AGREEMENT
AND BY COPYRIGHT. ANY USE OR COPYING OF THIS DOCUMENT EXCEPT
AS AUTHORIZED BY GARED HOLDINGS, LLC IS STRICTLY PROHIBITED.
TM
GARED DRAWN
APPROVED
FILE LOC.
SIZE
Noblesville, IN 46060
A
NOTES:
1. DIMENSION IS FROM FRONT
SURFACE OF POST TO FRONT
FACE OF BACKBOARD. DIMENSION
MAY VARY WITH BOARD SELECTION.
2. DIMENSION IS FROM UNDERSIDE
OF POST ARM SURFACE TO THE
PLAYING SURFACE.
BOARD AND GOAL
NOT INCLUDED
BOARD BRACE INCLUDED
ON GN MODELS ONLY
5'-0"
[1.53 m]
FRONT MOUNT
5'-0 1/2"
[1.54 m]
REAR MOUNT
NOTE 1
CONCRETE
BY OTHERS
4 1/2" GOOSENECK SYSTEM, 5 FT EXT.
DATE
CONNERLEY 6/11/2010
DATE
CONNERLEY 6/11/2010
Q:\Inventor Files\Specification Files\06_Outdoor
Products
SCALE SHT. NO. PART NO.
NONE 1 OF 2
9'-6 1/4"
[2.903 m]
FRONT MOUNT
9'-9"
[2.972 m]
REAR MOUNT
NOTE #2
3'-0"
[.91 m]
MINIMUM
Ø 2'-0"
[0.61 m]
MINIMUM
DATE ISSUED
6/11/2010
REV
GN45-5
A
