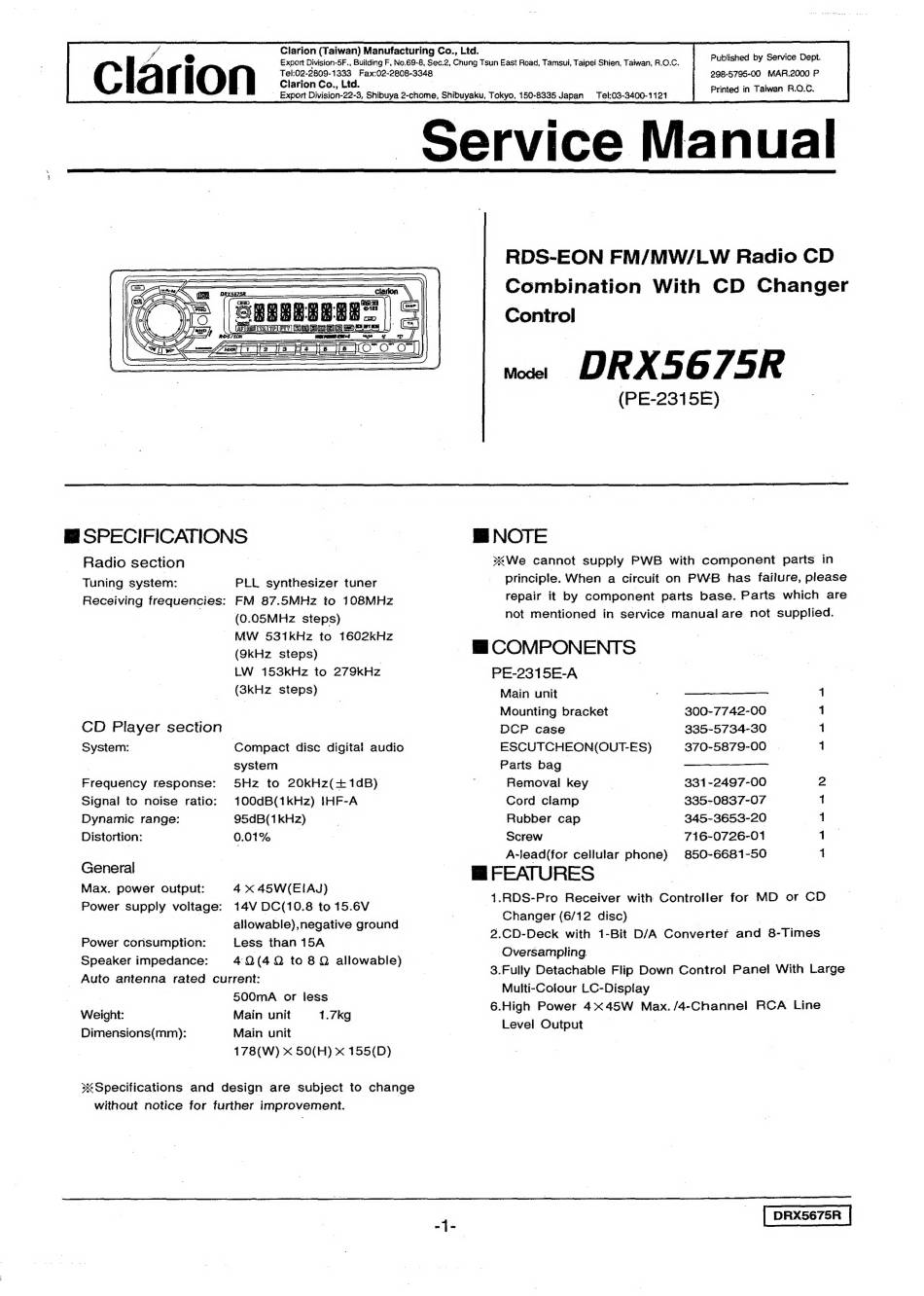

Clarion
Clarion Co., Ltd.
Clarion (Taiwan) Manufacturing Co., Ltd.
Export Division-5F., Building F, No.69-8, Sec.2, Chung Tsun East Road, Tamsui, Taipei Shien, Taiwan, R.O.C.
Tel:02-2809-1333
Fax:02-2808-3348
Export Division-22-3, Shibuya 2-chome, Shibuyaku, Tokyo, 150-8335 Japan
Published by Service Dept.
298-5795-00
MAR.2000 P
Telk03-3400-1121
Printed in Taiwan
R.O.C
RDS-EON FM/MW/LW Radio CD
Combination
With
CD
Changer
one
DRX5675R
©
(PE-2315E).
ia SPECIFICATIONS
Radio section
Tuning system:
Receiving frequencies:
CD Player section
System:
Frequency response:
Signal to noise ratio:
Dynamic
range:
Distortion:
General
Max. power output:
Power supply voltage:
Power consumption:
Speaker impedance:
PLL synthesizer tuner
FM 87.5MHz
to 108MHz
(0.O5MHz
steps)
MW
531kHz
to 1602kHz
(9kKHz steps)
|
LW
153kHz to 279KHz
(3kHz
steps)
Compact disc digital audio
system
5Hz
to 20kHz(+1dB)
100dB(1kHz)
!HF-A
95dB(1kHz)
0.01%
4 x 45W(EIAJ)
14V DC(10.8 to 15.6V
allowable), negative ground
Less
than 15A
4.0(4Q to 8 Q allowable)
Auto antenna
rated
current:
Weight:
Dimensions(mm):
xSpecifications
and design are subject to change
500mA
or less
Main unit
1.7kg
Main unit
178(W) X 50(H) < 155(D)
without notice for further improvement.
M@ NOTE
We
cannot
supply PWB
with component
parts in
principle. When a circuit on PWB
has failure, please
repair it by component parts base. Parts which are
not mentioned
in service manual are not supplied.
@ COMPONENTS
PE-2315E-A
Main unit
———__——_———
1
Mounting bracket
300-7742-00
1
DCP
case
335-5734-30
1
ESCUTCHEON(OUT-ES)
370-5879-00
1
Parts bag
_-_—_—_—
Removal
key
331-2497-00
2
Cord
clamp
335-0837-07
1
Rubber cap
345-3653-20
1
Screw
716-0726-01
1
A-lead(for cellular phone)
850-6681-50
1
i FEATURES
-1.RDS-Pro
Receiver with Controller for MD
or CD
Changer (6/12 disc)
|
_
|
2.CD-Deck with 1-Bit D/A Converter
and
8-Times
Oversampling.
3.Fully Detachable Flip Down Control Panel With Large
Multi-Colour LC-Display
6.High Power
4X45W
Max./4-Channel
RCA
Line
Level Output
|
DRX5675R
