Summary of Contents for Monark nono mini LC4

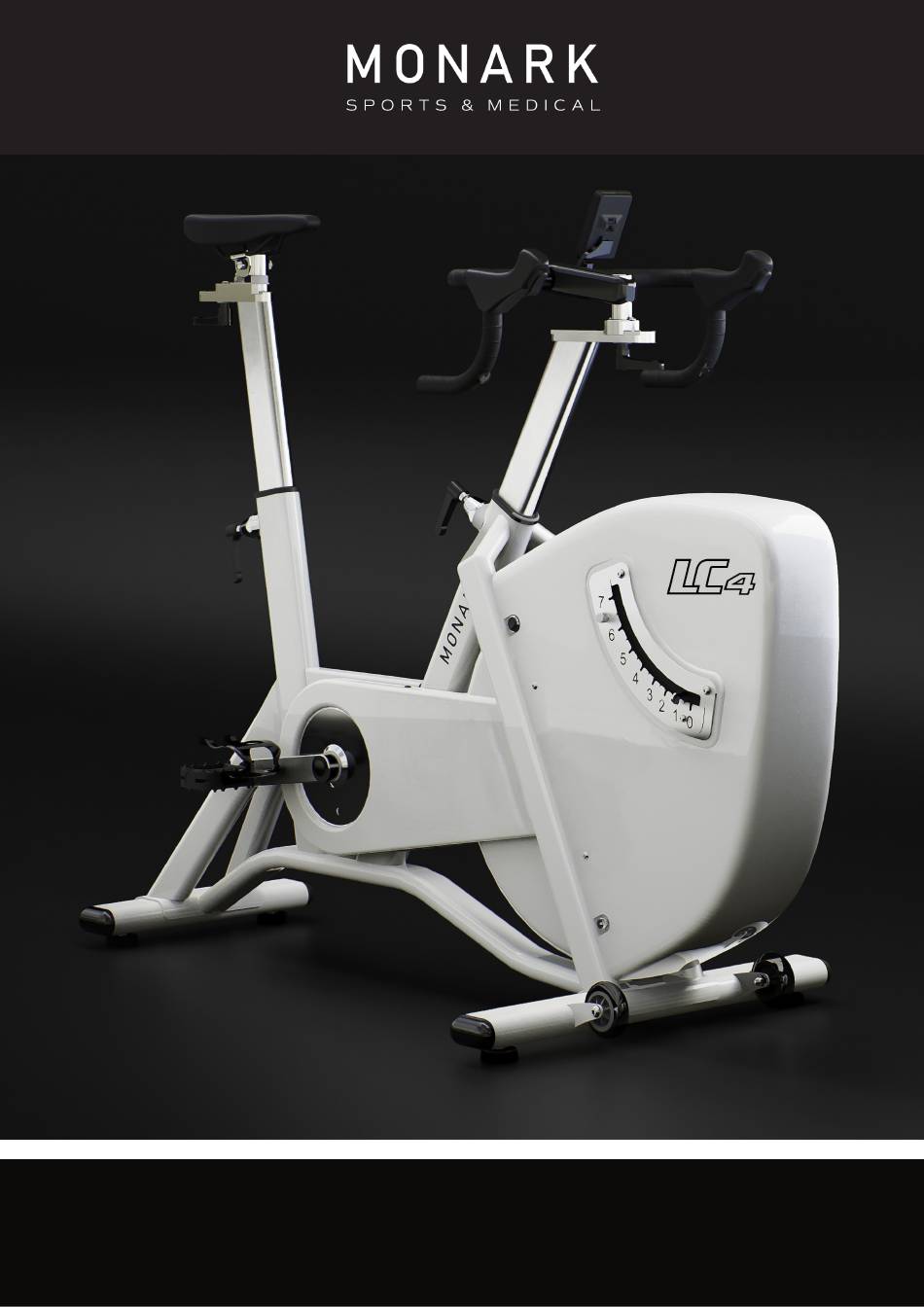

- Page 1 MONARK MONARK...
- Page 2 Monark LC4 novo mini...
- Page 3 Choose to communicate with your ergometer trough BLE, ANT+ or USB. Re- gardless your LC4 will give you the accuracy and the reel bike feel, that the Monark ergometers are known for. The robust frame together with the heavy flywheel creates an unbelievable bike feel.
- Page 4 ASSEMBLY NOTE! It is recommended that you are two people when the bike is assembled. Monark LC4 novo mini...
- Page 5 This is marked with “MAX” on the stem. 1x R 1x L NOTE! When the bike is new, or if you replace the pedals, they must be tightened after 5 hours of use. Monark LC4 novo mini...
- Page 6 In towards the electric unit. Cables are mounted accordingly to the picture below. Towards the flywheel Electric unit 1. Cable from display 2. Right shifter (accessory) 3. Left shifter (accessory) 4. Other functions (sensor etc. ) Monark LC4 novo mini...
-
Page 7: Power Supply
Connection. Technical data power adaptor Input 100-240V AC 1.4-0.7A, 50-60Hz Output 12V DC 5.0A Polarity + in the middle 1. On Fig: Connection 0. Off Fig: On / off Fig: Polarity Monark LC4 novo mini... - Page 8 Turn ANT+ on / off resistance will be in Kp (speed dependent) (external connection) Sleep mode After ten minutes of inactivity, the display goes into sleep mode. To restart the display, press on the screen or start pedalling. Monark LC4 novo mini...
- Page 9 CHANGE THE WORKLOAD IN THE DISPLAY To change the workload on the bike, press + or - on the display. Decrease Increase Decrease Increase workload workload workload workload Fig: Workload in kilopond Fig: Load in watt Monark LC4 novo mini...
- Page 10 Zwift. 3. Function where sprint buttons are used as shifters. Both with single clicks OR press and hold. Fig: Shifters left side Fig: Shifters right side 1) shifters 1) shifters 2) Sprint button 2) Sprint button Monark LC4 novo mini...
- Page 11 Monark to measure the effect ergometer. The resistance (a certain kilopond) at e.g. Zwift either at the flywheel (Monark Standard for science) or means the slope of the road in combination with “virtual at the crank section. This to be able to race against other gears”.
-
Page 12: Scale - Zero Adjustment
0-index, the scale musst be adjusted. Loosen the pole screw and adjust the scale. Tighten the pole screw (1) after adjustment. See Fig: Scale adjustment. Fig: Scale adjustment 1) Screw 2) Kp-scale 3) 0-index Monark LC4 novo mini... -
Page 13: Calibration Pendulum
Unscrew the scale and reattach the cover and the scale. After calibrating the pendulum, you must do an electronic calibration, see section. Monark LC4 novo mini... -
Page 14: Calibration Electronics
The value varies depending on the value of the potentiometer at 0 kp. Fig: 2 kp Settings Fig: 4 kp Calibrate Fig: 6 kp Then move the pendulum down to 0 again and the calibration is complete. Monark LC4 novo mini... - Page 15 Connect external device via Cable To be able to do tests on LC4 you must connect it Command type (MEC) is default set up on all Monark bikes. to a computer and use specific software. A suitable As default the baud is 4800, but can be changed by one is available to download from our website: www.
- Page 16 Version 2211 Art. Nr: 7950-372EN KROONS VÄG 1, SE-786 33 VANSBRO, SWEDEN | MONARKEXERCISE.SE | TEL: +46(0)281 59 49 40 | FAX: +46(0)281 719 81...
