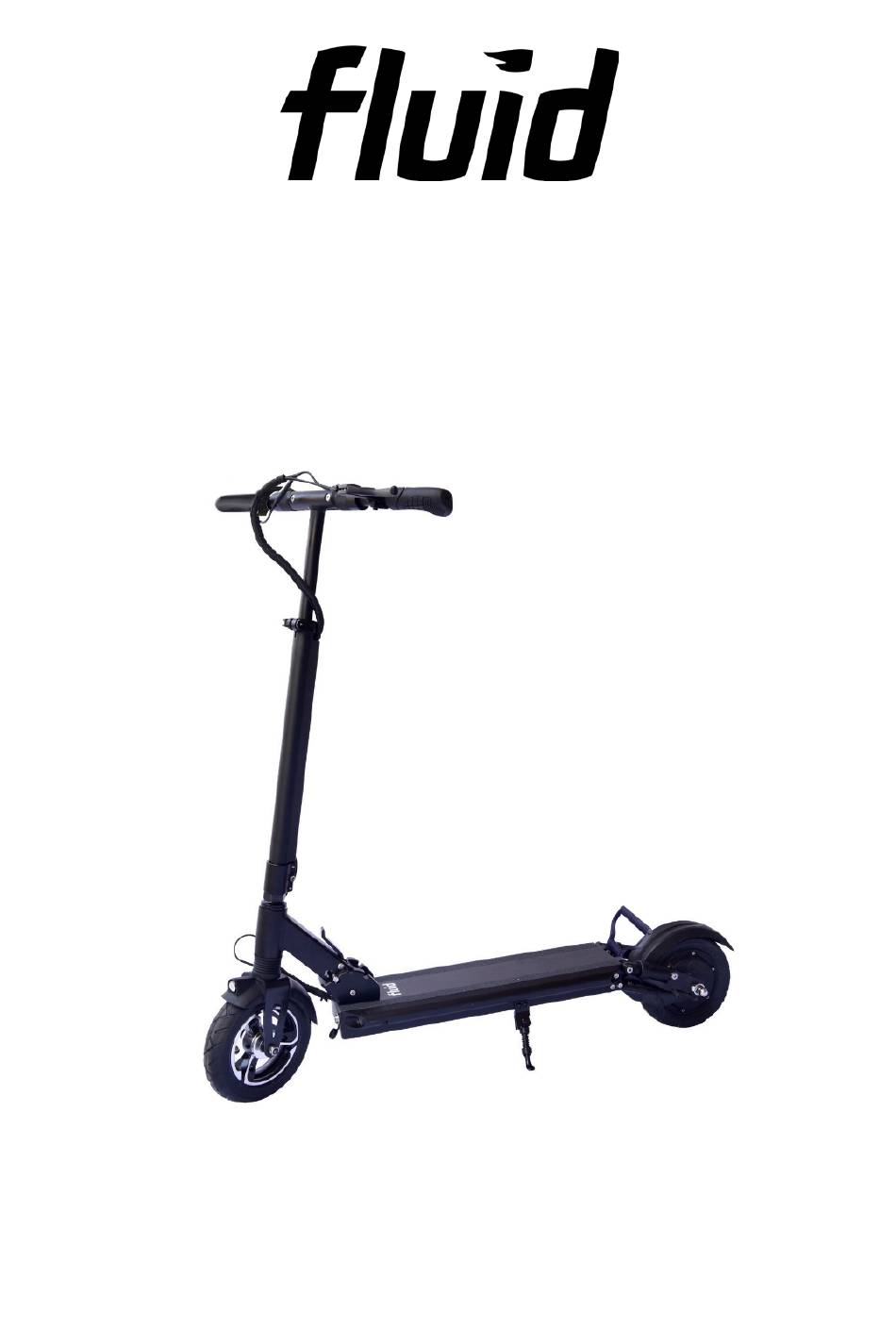

- Page 1 Horizon V2 Electric Scooter USER MANUAL Read this manual carefully BEFORE operating your scooter!
- Page 2 Congratulations on your new fluid Horizon V2 electric scooter! And thank you for purchasing it at fluidfreeride.com or at one of our retail partners. Follow us on Instagram and tag us to be featured on our page! @fluidfreeride...
-
Page 4: Before You Start
BEFORE YOU START It is important to read through, understand, and adhere to all instructions and safety warnings before charging and operating this scooter. Upon receiving and opening your box, please inspect the contents for signs of damage or loose screws from transport. If something doesn’t look or feel right, please take a few pictures and contact your place of purchase immediately. -
Page 5: Table Of Contents
TABLE OF CONTENTS BEFORE YOU START TABLE OF CONTENTS GENERAL SAFETY WARNINGS SAFETY CHECKLIST HORIZON OVERVIEW What’s in the Box Technical Specifications UNFOLDING AND FOLDING WARNING: Secure Unfolding Folding Mechanism Sensitivity Adjustment INITIAL SET UP CHARGING AND BATTERY SAFETY Charging your Horizon Battery Maintenance Battery Disposal Charging and Battery Safety Warnings... -
Page 6: General Safety Warnings
GENERAL SAFETY WARNINGS • Always wear a helmet and protective safety equipment when riding your electric scooter. • Wear closed shoes without heels and ensure your laces are tied. • Only use your scooter in line with its intended purpose. •... -
Page 7: Safety Checklist
SAFETY CHECKLIST General • Your scooter should feel stable without much play or wobble. • If something does not feel or look right, please contact fluidfreeride. Riding Environment • There must be sufficient light so you can see the road ahead of you. If not, use an additional headlight! •... -
Page 8: Horizon Overview
HORIZON OVERVIEW What’s in the Box UL certified Charger fluid Horizon Electric Scooter Manual Set of Tools Technical Specifications Motor Dimensions 48V 500W BLDC hub 42.5 x 23.2 x 46.8 inch motor (20A controller) 108 x 59 x 119 cm... - Page 9 Key Components Display and Rear brake lever control panel Cuffs for folding handlebar (turn to open) Quick release lever for height adjustment of handlebar Front Safety lever to lock folding mechanism lights Rear wheel with solid tire, motor and drum brake Front wheel with air tire Rear LED lights...
-
Page 10: Unfolding And Folding
UNFOLDING AND FOLDING 1. Open the folding lever 2. Lift the front stem upright until it audibly snaps into place with a clicking sound. 3. If you do not hear the click, push the stem forward to ensure that the folding mechanism has locked into place. -
Page 11: Warning: Secure Unfolding
WARNING: Secure Unfolding Always ensure the folding mechanism has snapped in place before you ride. The main bolt needs to sit firmly inside its slot: There is an audible click sound when you fold the scooter up and the bolt snaps into place. -
Page 12: Initial Set Up
INITIAL SET UP Your Horizon will be delivered with brake lever and display loose on the handlebar for more secure shipping. Use the included Allen keys to fasten the brake and display in the position that best suits your riding style. CHARGING AND BATTERY SAFETY Charging your Horizon •... -
Page 13: Battery Disposal
• Batteries perform poorly at low temperatures. For instance, if the temperature is around 0°F (-18°C), battery capacity reduces by 50%. Capacity will restore to normal when temperatures rise. • Battery life and riding ranges will vary depending on usage, climate, conditions, rider weight, and/or riding style, proper care and maintenance. - Page 14 • Do not pierce the battery with sharp objects. Do not subject it to impact or force. • Stop charging if the battery fails to recharge within the approximate charging time. This will prevent the battery from overheating, rupturing, or igniting. •...
-
Page 15: Operation And Controls
OPERATION AND CONTROLS The Horizon scooter is equipped with a display throttle combination that controls operation POWER – press and hold the POWER button to turn the scooter on or off. HEADLIGHT / REAR LIGHT – press and hold the INFO button for 1 second to turn the lights on or off. -
Page 16: Advanced Display Settings (P-Settings)
Advanced Display Settings (P-Settings) To access P-settings to make various advanced changes, press POWER and INFO simultaneously. To cycle through the P-settings press the POWER button. To make changes press the INFO button. To exit P-settings wait for 10 seconds or press POWER and INFO together. Description Default Display brightness: 1(low) –... -
Page 17: Battery Voltage And Charging Status
P11/P12 – Changing these settings has a barely noticeable effect. Note that electric braking can only be felt at faster speeds. P17 – Cruise control will automatically maintain scooter speed after you have held the accelerator in place for a few seconds. Deactivated through accelerator touch or brake. -
Page 18: Scooter Maintenance & Transport
This curve shifts downwards the more power you are using. E.g. an aggressive driving style will reduce your voltage reading at the same battery charge status. Note that an aggressive driving style will also reduce range (the distance you can travel at a given charging status). If you prefer it plain and simple, disregard this section and go with the battery bars to check your charge. -
Page 19: Error Code List
Error Code List Brake Low battery voltage Motor fault Throttle fault Controller fault Communication receiving fault Communication sending fault... -
Page 20: Declaration Of Conformity
DECLARATION OF CONFORMITY This product complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This product may not cause harmful interference, and (2) this product must accept any interference received, including interference that may cause undesired operation. - Page 21 Horizon V2 User Manual – fluidfreeride.com Keep it fluid!
