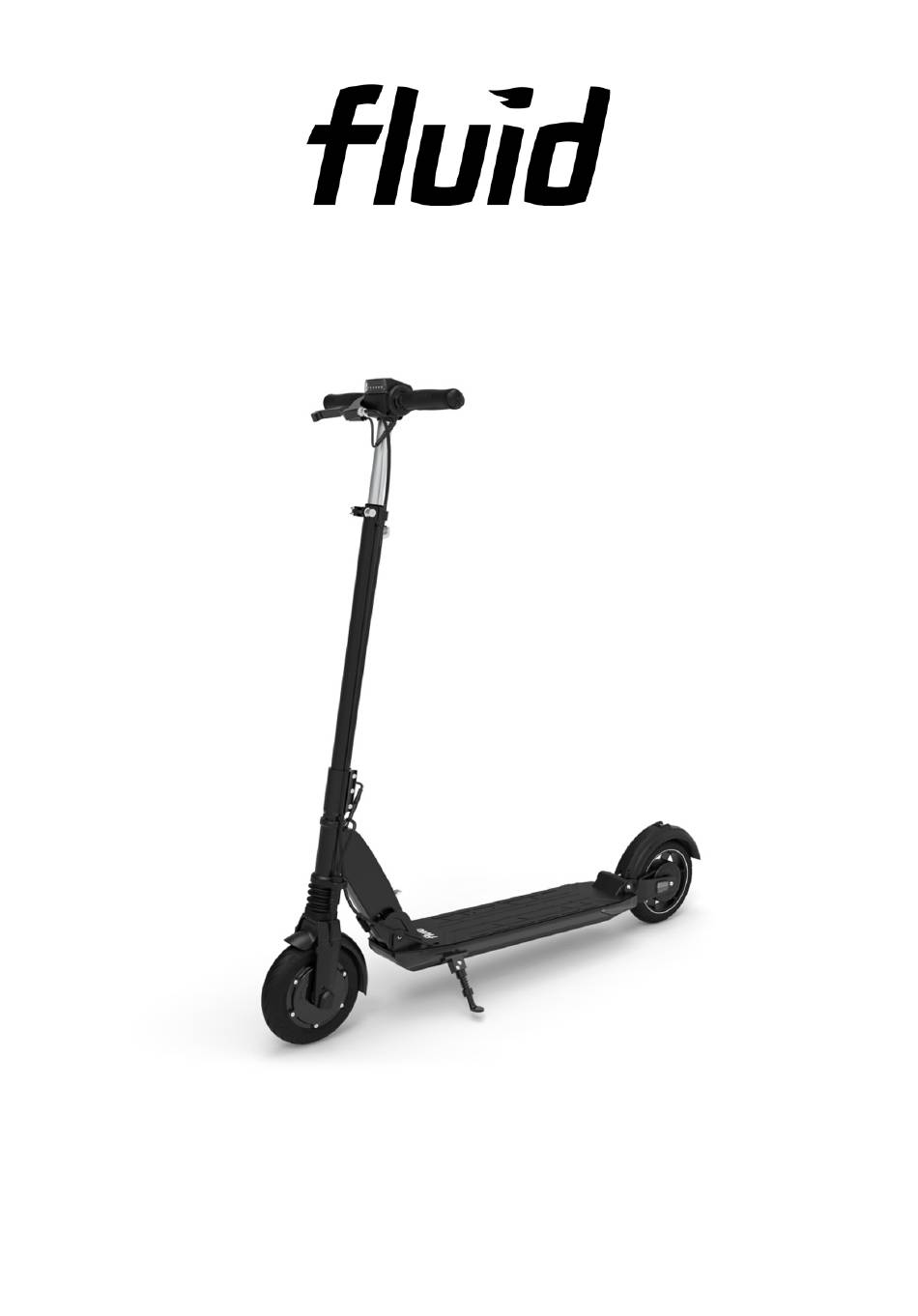

- Page 1 Mosquito User Manual Read this manual carefully BEFORE operating your scooter!
- Page 2 Congratulations on your new fluid Mosquito Electric Scooter! And thank you for purchasing it at fluidfreeride.com or at one of our retail partners. Follow us on Instagram and tag us to be featured on our page! @fluidfreeride...
- Page 3 DO NOT RETURN TO PLACE OF PURCHASE Please contact us at fluidfreeride.com/contact for any assistance. Check out our support library at support.fluidfreeride.com for common concerns. PLEASE REGISTER YOUR SCOOTER Get 12 months Warranty and Lifetime Service from fluidfreeride after registering your scooter. Scan the QR code or head over to fluidfreeride.com/register.
-
Page 4: Before You Start
BEFORE YOU START It is important to read through, understand, and adhere to all instructions and safety warnings before charging and operating this scooter. Upon receiving and opening your box, please inspect the contents for signs of damage or loose screws from transport. If something doesn’t look or feel right, please take a few pictures and contact your place of purchase immediately. -
Page 5: Table Of Contents
OPERATION AND RIDING Basic Controls Riding Braking Speed Limit Setting Advanced Settings Battery Charge Indicator CHARGING AND BATTERY SAFETY Charging the fluid Mosquito Battery Maintenance and Storage Battery Disposal Charging and Battery Safety Warnings SCOOTER MAINTENANCE & TRANSPORT DECLARATION OF CONFORMITY... -
Page 6: Important Safety Warnings
IMPORTANT SAFETY WARNINGS Always wear a helmet and protective safety equipment. Wear closed • shoes without heels and ensure your laces are tied. Do not ride with more than one rider or exceed the weight limit of • 120kg/265lbs in any other way. Keep the scooter away from children. -
Page 7: Safety Checklist
SAFETY CHECKLIST General Your scooter should feel stable without much play or wobble. • If something does not feel or look right, please contact • fluidfreeride. Wheels Check the main lateral wheel nuts for firmness regularly and after • your first 50 miles of riding. Re-tighten if necessary. Throttle Before riding, check if the throttle sits firmly on the handlebar and •... -

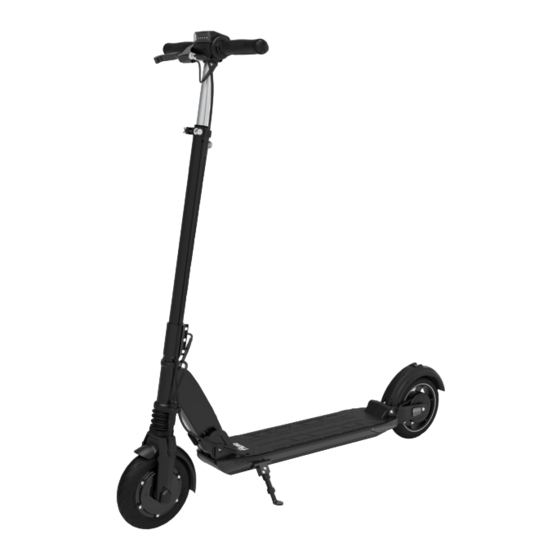

Page 8: Mosquito Overview
MOSQUITO OVERVIEW What’s in the Box Tools UL charger fluid Mosquito Manual Technical Specifications Motor Brushless DC - 500W nominal / 700W peak Battery 48V 9.6Ah Li-Ion Top speed 25+ mph Range 22 miles (165 lb rider, 15mph constant speed) -
Page 9: Key Components
Key Components Neck (controller Mud Guard + inside) Rear Step On Front Charging Port Brake Suspension Taillight Folding Mechanism Kick Stand Front Motor + Rear Suspension Solid Tire Rear Drum (under board) Brake Headlight Rear Drum Display (front facing) Brake Lever Control Buttons Handle Grip Handle Grip... -
Page 10: Unfolding & Folding
UNFOLDING & FOLDING Safety Lever (shown in open position Folding Lever Bolt (behind cover) Unfolding 1. Press the rear mud guard to release the hook and move the stem upward into riding position. 2. You should hear a click when the bolt snaps into place. 3. -
Page 11: Folding
Folding 1. Start with lowering the handlebar height to a minimum. Open the quick release lever, then press the height button while pushing the handlebar downward. 2. Press the buttons on the handle grips, move the grips outward and fold grips downwards. (Steps 1 &... -
Page 12: Operation And Riding
OPERATION AND RIDING Controller Odometer or Speed Indicator Temperature* Trip Mileage Battery Charge Indicator Throttle Lever Electric Brake Lever Horn Button Light Button Settings Button Power Button *Controller temperature may show lower than rom temperature when turning your scooter, it will show accurate temperature once riding your scooter. Basic Controls Press the power button for 3 seconds, the scooter will turn on and the display lights up. -
Page 13: Riding
Riding Before using your scooter, make sure to visually inspect it for any signs of damage or loose parts or screws. Every scooter is individually tested before shipping from the factory, but we recognize that it has travelled far and in rare cases, it can get damaged during transport. -
Page 14: Speed Limit Setting
electric front motor to brake which at the same time recovers energy to charge your battery and extend your range. Speed Limit Setting Your scooter is equipped with 5 speed modes that can be set depending on your desired speed limit. L4 is set by default. 1. -
Page 15: Battery Charge Indicator
This setting sets the intensity of the electric brake. You can choose from 0 (lowest electric braking strength) to 5 (highest electric braking strength). P2 – Motor Lock (off by default – P2=0): Turn this on if you would like to lock the front motor so that you cannot move or operate the scooter without picking it up. -
Page 16: Charging And Battery Safety
CHARGING AND BATTERY SAFETY Charging the fluid Mosquito Charge your scooter before its first use. 1. Turn your scooter off 2. Connect the charger to the wall power outlet 3. Locate the charging port 4. Open the charging port cover 5. -
Page 17: Battery Disposal
Battery life and riding ranges will vary depending on usage, climate, • conditions, rider weight, and/or riding style, proper care, and maintenance. Battery Disposal Do not dispose of your battery by way of landfilling, incineration, or • household trash. We recommend disposing through a local recycling program suitable •... - Page 18 Stop charging if the battery fails to recharge within the approximate • charging time. This will prevent the battery from overheating, rupturing, or igniting. Do not charge the battery in temperatures below 32°F (0°C) or above • 104°F (40°C) as this can hamper performance, result in breaking, overheating, rupturing, or igniting and could cause personal injury or property damage.
-
Page 19: Scooter Maintenance & Transport
SCOOTER MAINTENANCE & TRANSPORT The Mosquito is essentially maintenance free. Apart from monitoring. • tire and brake wear, and occasional re-greasing of moving parts, you should be good to go. Once the tire is significantly worn or the brakes loose tension, contact •... -
Page 20: Declaration Of Conformity
DECLARATION OF CONFORMITY This product complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This product may not cause harmful interference, and (2) this product must accept any interference received, including interference that may cause undesired operation. - Page 22 Keep it fluid!
