2. MAIN PARTS AND FUNCTIONS
The image above is a representative model's part, and the shape of the parts may vary by model.

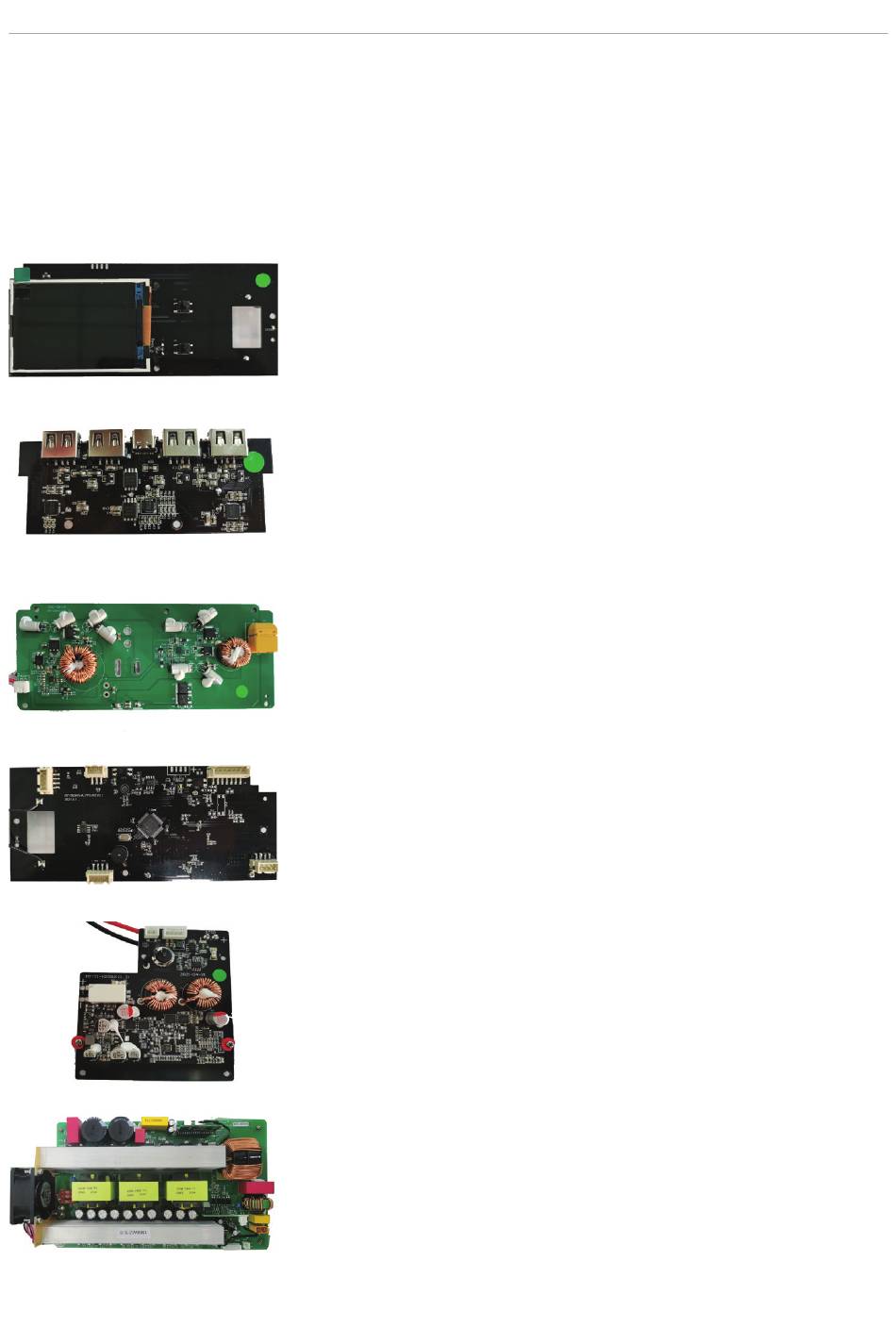

PCB board-A : main control board used to display the current power
AC & DC status and control the
PCB board-B : control of USB- A & TYPE-C output
PCB board-C : control of DC 12V output
PCB board-D BMS : for detecting battery status and control battery
output when abnormal
PCB board-H : control DC charging and MPPT charging
Inverter : converting DC power from a battery to AC current
AC & DC output when abnormal
