EIB-UAV-01 (DCK-15) UART's
App Note
DOC-USR-0220-01
Version: 1.00
Copyright © 2020 Z3 Technology, LLC. All rights reserved.
property of their respective owners.
Z3 C onfidential
1
EIB-UAV-01 (DCK-15) UART's
EIB-UAV-01 (DCK-15) UART's
DOC-USR-0220-01
DOC-USR-0220-01
Advertisement
Table of Contents
Related Manuals for Z3 Technology EIB-UAV-01
Summary of Contents for Z3 Technology EIB-UAV-01
- Page 1 Copyright © 2020 Z3 Technology, LLC. All rights reserved. This document contains proprietary information of Z3 Technology, LLC ("Z3"). This document may not be used, reproduced, disclosed, or disseminated to anyone without the prior written approval of an authorized representative of Z3. Z3 reserves the right to change this product at any time and without notice.
- Page 2 EIB-UAV-01 (DCK-15) UART’s EIB-UAV-01 (DCK-15) UART’s CONFIDENTIAL DOC-USR-0220-01 CONFIDENTIAL DOC-USR-0220-01 Revision History Version Date Change Note Author 1.00 02/25/2020 Original Document Z3 C onfidential ____________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N. 8th St. STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
-
Page 3: Table Of Contents
3.2 Connecting the DRS Tamarisk Camera Digital Interface ............10 3.3 Connecting the FLIR Tau2 Camera Digital Interface ............13 Z3 C onfidential ____________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N. 8th St. STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... - Page 4 Figure 9: Tau2 connection to FV2K ..................14 Figure 10: Tau2 connection to FV4K ..................14 Figure 11: Tau2 connection to FSDI ..................15 Z3 C onfidential ____________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N. 8th St. STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
-
Page 5: Purpose

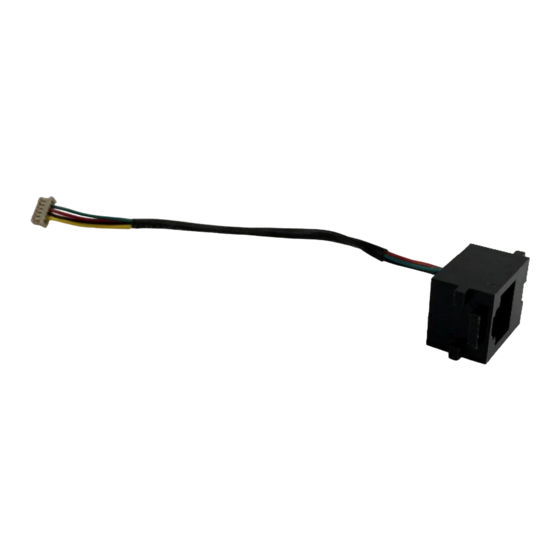

CBL-0048-01 can be connected to J1, J2, and J3 and allow access to the UART2 pins defined. (Available for purchase from Z3 Technology) Figure 1 Cable CBL-0048-01 ____________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N. 8th St. STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 6: Web Ui Term Tab And Relation To Uart's On The Hardware
2.3.2 EIB-UAV-01 UART assignments in relation to the Serial Ports within the Term Tab Serial 0 (2.5mm jack) is J4 (UART0) Serial 1 is J2 (UART1) Serial 4 is J3 (UART4) ____________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N. 8th St. STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 7: Connectors Further Defined
These pins connect directly to the FPGA on the board, so their functions and I/O standard are determined by the FPGA programming applied. ____________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N. 8th St. STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... - Page 8 RX minus (corresponds to RJ45 pin 6) RX plus (corresponds to RJ45 pin 3) TX minus (corresponds to RJ45 pin 2) TX plus (corresponds to RJ45 pin 1) ____________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N. 8th St. STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
-
Page 9: Figure 3: Eib-Uav-01 Pin Out Connectors
Note: The power cable used with pin connector J5 is part number CBL-0047-01. This cable can be purchased separately from Z3 Technology. Quantity Reference Footprint Z3 Part Part Manufacturer MFR Part Description Item ____________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N. 8th St. STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 10: Connecting The Drs Tamarisk Camera Digital Interface
The only connection needed between the camera and encoder is a FlexIO cable, wired straight pin to pin between the camera side and encoder side. Both sides use a JST shell part number SHDR-30V-S-B. The following pins are required: ____________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N. 8th St. STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 11: Figure 5: Resistor Divider For Tamarisk Serial Control
The resistor divider circuit shown above must be inserted between pin 4 of the encoder and pin 4 of the Tamarisk camera. ____________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N. 8th St. STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 12: Figure 6: Tamarisk Connection To Fv2K
EIB-UAV-01 (DCK-15) UART’s CONFIDENTIAL DOC-USR-0220-01 CONFIDENTIAL DOC-USR-0220-01 Figure 6: Tamarisk connection to FV2K Z3 C onfidential Figure 7: Tamarisk connection to FV4K ____________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N. 8th St. STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 13: Connecting The Flir Tau2 Camera Digital Interface
Table 4: Connections between FLIR Tau2 and Z3 Interface 30-0074 FlexIO Pin # Pin # FlexIO 30-0074 EXTPWR +12V LVTTL TX LVTTL RX EXTPWR +12V LVTTL RX LVTTL TX ____________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N. 8th St. STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 14: Figure 9: Tau2 Connection To Fv2K
AUX_CLKn LVDS_CLKn AUX_CLKp LVDS_CLKp A_VID_GND Composite A_VID_OUT Z3 C onfidential Figure 9: Tau2 connection to FV2K Figure 10: Tau2 connection to FV4K ____________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N. 8th St. STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 15: Figure 11: Tau2 Connection To Fsdi
EIB-UAV-01 (DCK-15) UART’s EIB-UAV-01 (DCK-15) UART’s CONFIDENTIAL DOC-USR-0220-01 CONFIDENTIAL DOC-USR-0220-01 Figure 11: Tau2 connection to FSDI Z3 C onfidential ____________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N. 8th St. STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
