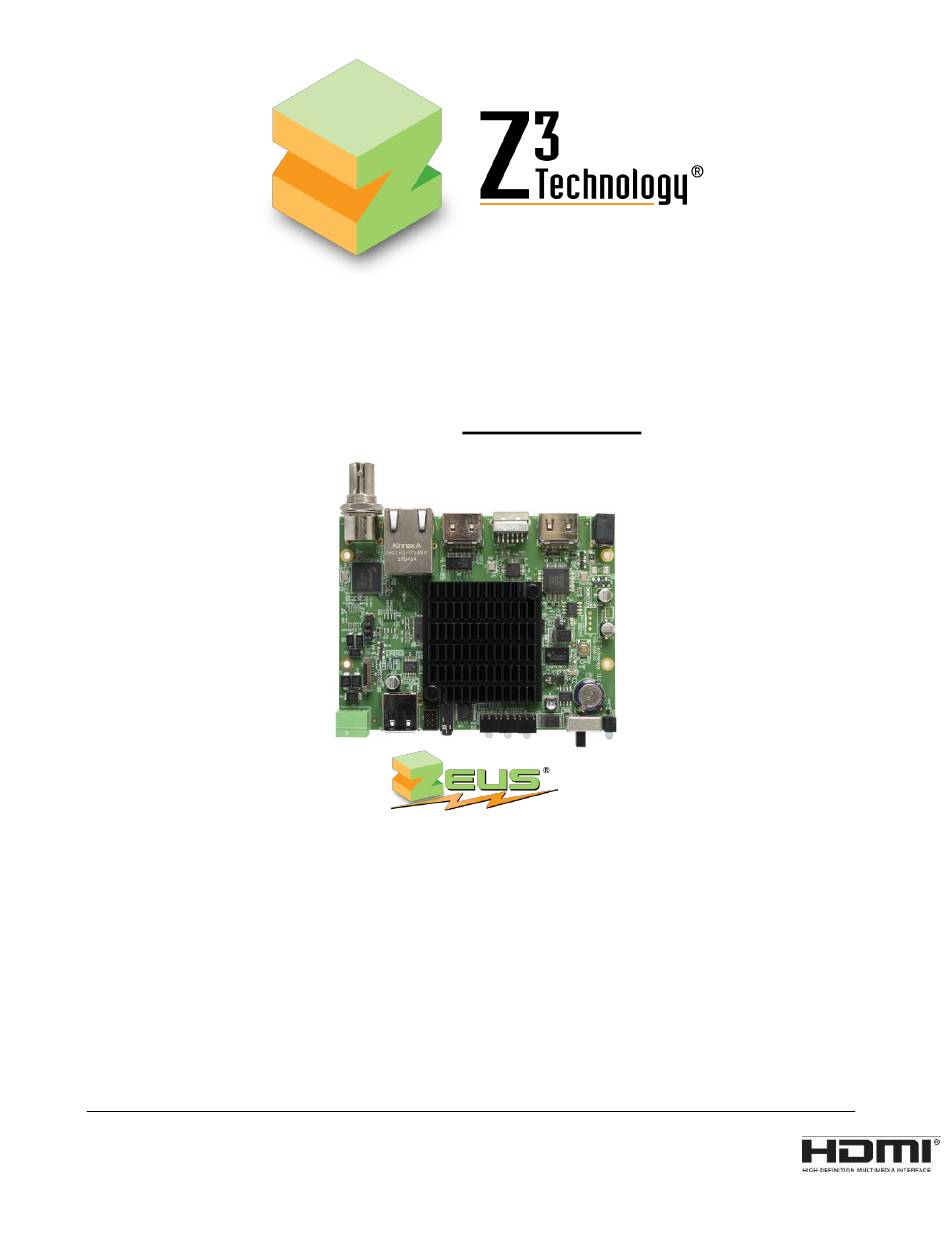

User Instructions
H.264 HD Multimedia System
Digital Media Encoder and Streamer
Z3-SBE264-10
Model Name:
The Power of ZEUS™
DOC-USR-0135-01
November 13, 2017
Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use.
Copyright © 2017 Z3 Technology, LLC. All rights reserved.
Z3 Technology and ZEUS are registered trademarks of Z3 Technology, LLC.
This document contains proprietary information of Z3 Technology, LLC ("Z3"). This document may not be used, reproduced, disclosed, or
disseminated to anyone without the prior written approval of an authorized representative of Z3. Z3 reserves the right to change this product at
any time and without notice. All product names, trademarks, trade names, service marks, or service names mentioned in this document are the
property of their respective owners.
Z3 Technology, LLC incorporates HDMI® technology. The terms of HDMI and HDMI High-Definition Multimedia Interface, and
the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Z3 Technology Z3-SBE264-10
Summary of Contents for Z3 Technology Z3-SBE264-10
- Page 1 Z3 Technology and ZEUS are registered trademarks of Z3 Technology, LLC. This document contains proprietary information of Z3 Technology, LLC ("Z3"). This document may not be used, reproduced, disclosed, or disseminated to anyone without the prior written approval of an authorized representative of Z3. Z3 reserves the right to change this product at any time and without notice.
- Page 2 DOC-USR-0135-01 REVISION HISTORY Version Date Change Note Author 11/13/2017 Original Document ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
-
Page 3: Table Of Contents
6.0 RUNNING THE ENCODER ..................... 12 6.1 Set up the HD Source ....................12 6.2 Connect and Power Up the Z3-SBE264-10 ..............12 6.3 Find the Z3-SBE264-10 Using ZFinder ................13 6.4 Configure Channel 1 Encode and UDP Streaming ............. 14 6.5 Run VLC to View UDP Stream .................. - Page 4 DOC-USR-0135-01 8.0 PERFORMING OTHER OPERATIONS WITH THE Z3-SBE264-10 ............ 48 8.1 Saving Current Settings ................... 48 8.2 Using a Static IP Address ..................50 8.3 Making a Firmware Update ..................52 8.4 Using the Password Feature ..................53 9.0 SUMMARY OF OPTIONS ....................54 9.1 The System Setup Tab .....................
- Page 5 Figure 2 Package Contents ....................9 Figure 3 Operating Controls Labelled ................. 11 Figure 4 Connecting SDI In and Power on the Z3-SBE264-10 ............12 Figure 5 Connecting the Ethernet and Turn on the Z3-SBE264-10 ..........13 Figure 6 ZFinder with Z3-SBE264-10 Selected ................ 13 Figure 7 Z3-SBE264-10 User Interface - System Setup Tab ............
- Page 6 Figure 56 Setting a Static IP Address within a User Preset ............50 Figure 57 Reboot Reminder for Changing IP Settings ..............51 Figure 58 ZFinder with Z3-SBE264-10 DHCP Address ..............51 Figure 59 Updating the Device Firmware from the Web Interface ..........52 Figure 60 Updater Screen ....................
-
Page 7: General Description

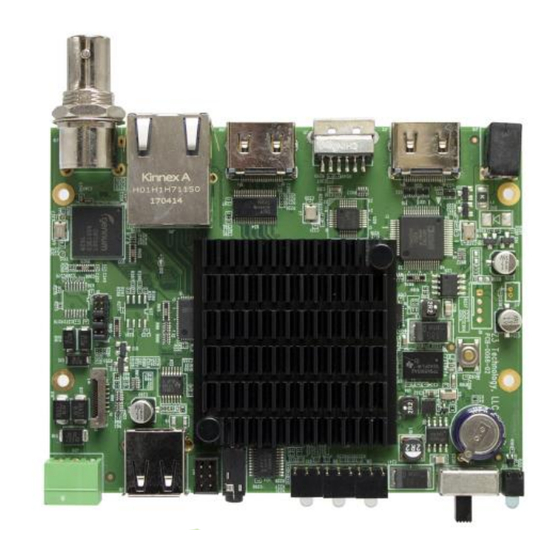

The ZEUS Z3-SBE264-10 is a cost-optimized, compact 105 x 81 mm system that allows encode of HD video (up to 1080p60) through SDI or HDMI input, and encode of SD video through a composite input. It allows users to quickly stream video from any of those three sources to the web or internal clients/PCs via UDP, RTP, RTSP or RTMP . -
Page 8: Quick Start Guide
Section 8.3 “Making a Firmware Update” on page 52. Please Note: Actual version numbers for your Z3 product may differ from those pictured in this document. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 9: Package Contents
*Note: The serial cable and gender changer are included for advanced troubleshooting purposes only and are not needed by the typical user. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 10: Features
Composite: 576i25, 480i29.97 The Z3-SBE264-10 supports simultaneous output of up to three streams encoded at different resolutions, frame rates and bitrates. Total performance cannot exceed the capability of the Z3- SBE264-10 processor. For example, three 1080p30 encodes at 30fps would not be allowed. The maximum performance for two channels is one 1080i plus one 720p stream. -
Page 11: Operating Controls
A/V In HDMI In 5V Power Ground A/B Power Switch RS-232 SDI, A/V, HDMI Serial Port Indicator Lights Figure 3 Operating Controls Labelled ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 12: Running The Encoder
This section gives step-by-step instructions on using the Z3-SBE264-10 to stream 1080p or 1080i video to VLC media player running on your PC. In addition to the Z3-SBE264-10, an HD source with SDI output and a PC with the VLC media player are required. Encoding with an HDMI or a composite source is described later in Section 6.13. -
Page 13: Find The Z3-Sbe264-10 Using Zfinder
6.3 Find the Z3-SBE264-10 Using ZFinder ZFinder is a PC Utility that allows you to find any Z3 Technology product on your network. If you have not yet downloaded this to your computer, you can find it on the USB drive provided with your system. -
Page 14: Configure Channel 1 Encode And Udp Streaming
(7) Select the Z3-SBE264-10, enabling the action buttons at the bottom of the window. Click “Open Device” to open the web interface for the selected device in your default web browser. Z3 Strongly recommends the latest versions of Mozilla Firefox or Google Chrome for best compatibility with our products. -
Page 15: Figure 8 Ch1 Tab Configuration - Udp
“Encode Interlaced/Progressive” to “Encoder Single Ch HD”. Note that, in “Encoder Single Ch HD” mode, only CH1 can be used. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 16: Run Vlc To View Udp Stream
(16) Press <Enter> on your keyboard or click “Play” at the bottom of the dialog box. (17) You should now see video streaming to VLC. Figure 10 Example of Z3 Video Streaming to VLC (UDP) ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 17: Streaming Rtp Or Rtsp
(b) {ch#} corresponds to the number of the channel tab of the user interface. For example if the CH1 tab is used, “1” is entered. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 18: Figure 12 Vlc Open Network Stream Screen For Rtp
VLC version 2.1.5 or later is needed for RTSP support. (24) Click “Play” or hit <Enter> to begin streaming. . Figure 13 Example of Z3 Video Streaming to VLC (RTP) ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 19: Streaming Rtmp
DOC-USR-0135-01 6.8 Streaming RTMP The Z3-SBE264-10 supports RTMP streaming accepted by a variety of CDN’s (Content Delivery Networks) and social media platforms for wide content distribution and live streaming. For an example of using the encoder to stream RTMP in three different resolutions simultaneously, see Section 7.0. -
Page 20: Figure 15 Getting To The Wowza Test Player
(“1080” in our example” and click “Start”. You will then see the content streamed from your Z3 product. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 21: Figure 16 Viewing Content On Wowza
DOC-USR-0135-01 (1) Select “Adobe RTMP” tab (2) Type stream name (3) Click “Start” Figure 16 Viewing Content on Wowza ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 22: Figure 17 Youtube Live Dashboard - Encoder Setup
(b) 60 Frames – 120 Frames for 30 fps content. (8) Consult the YouTube live stream setup documentation available in YouTube’s online Live Streaming Guide for recommended bitrates for your resolution. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 23: Figure 18 Ch1 Tab Configuration - Rtmp Streaming To Youtube Live
Select the “Live Video” link at the top of the “Create Post” dialog box near the top of the page. Figure 19 Facebook “Create Post” dialog box ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 24: Figure 20 Facebook Live Streaming Dialog
Stream Key for your session displayed on the left. Figure 20 Facebook Live Streaming Dialog (4) Return to the Z3-SBE264-10 web interface and select the “Ch1” tab. Click “Stop.” Ensure the “Output Format” is set to “RTMP .” (5) Enter the Server URL minus the protocol header and stream Key as a continuous string in the “Dest Address”... -
Page 25: Changing The Bitrate Dynamically
Figure 22 Facebook Live Stream Preview 6.9 Changing the Bitrate Dynamically The Z3-SBE264-10 includes an “Update” button which allows you to change the bitrate and/or frame rate without stopping and restarting the encoder. To use this feature, complete the following steps: ___________________________________________________________________________________________ Z3 Technology, LLC ♦... -
Page 26: Figure 23 Viewing Bitrate In Vlc
(9) In the CH1 screen, change the bit rate from “8000K” to “2000K” and click “update”: (1) Change bitrate to 2000K (2) Click “update” Figure 24 Changing the Bitrate Dynamically ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 27: Figure 25 Drop In Bitrate After Dynamic Bitrate Change
The parameter “Frame Rate Divider” can also be updated dynamically using the “update” button. All other parameters require a stop and then start to change. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 28: Adjusting The Udp Ts Rate
DOC-USR-0135-01 6.10 Adjusting the UDP TS Rate The Z3-SBE264-10 includes a parameter to adjust the TS rate independent of the video bitrate. This can be found just below “PMT PID” when “UDP” is selected as the output format. Normally, this value is set to 25% to 33% above the sum of the video and audio bitrate. For example, the default value out of the factory is a value of 10Mbps, corresponding to 8Mbps for the video. -
Page 29: Figure 28 Ts Rate And Lower Bitrate Reflected In Vlc
The value of TS Rate must be higher than (video bitrate + audio bitrate) * 1.25. If an attempt is made to input a value less than this, the error message “TS rate too small to carry elementary streams” will appear. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 30: Encoding Audio Channels
DOC-USR-0135-01 6.11 Encoding Audio Channels The Z3-SBE264-10 can support up to four mono channels of audio simultaneously. It can also support up to two stereo pairs. (1) In the “CH1” tab, click “stop”. (2) In the “Audio Info” section, set “Enable” to “yes” using the dropdown menu for each audio channel you desire. -
Page 31: Tuning For Latency
By default, this is set to 1000ms. You can lower this to as low as 200ms. To do this, go to the following: ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 32: Figure 31 Vlc Media Player Tools Menu
Select “interface” from the menu on the left, and scroll to the bottom on the right side of the window to find the “Network Caching (ms)” value. Figure 32 VLC Media Player Advanced Preferences ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 33: Encoding From Hdmi Or Composite In
6.13 Encoding from HDMI or Composite In The Z3-SBE264-10 also supports encode via HDMI or Composite In. The HDMI or Composite In can be used in parallel with the SDI In. A Composite Adapter Cable, provided with the Z3-SBE264-10, is needed for the Composite In. -
Page 34: Figure 35 Ch2 Tab Configuration - Hdmi Or Composite Input
(4) Verify is not the same number as the CH1 tab Figure 35 CH2 Tab Configuration – HDMI or Composite Input (12) Click on “start.” ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 35: Encoding Closed Caption Data
DOC-USR-0135-01 6.14 Encoding Closed Caption Data The Z3-SBE264-10 supports extraction of closed caption data from Composite or SDI input. This automatically occurs any time Composite or SDI input with closed caption data included is used. (1) Connect a Composite input with closed caption data to the Composite connector. -
Page 36: Figure 37 Sample Encoder Settings For Composite Closed Caption Extraction
(3) Run VLC on your PC. (4) Select “Open Network Stream.” If the settings are those as shown in Figure 37, use the address “udp://@192.168.0.6:5006”. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 37: Figure 38 Setting Vlc To Use The Extracted Closed Caption Data
Full frame rate is needed for closed caption. If frame rate divider is set to a value other than one, then closed caption data will not be complete. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 38: Record To Usb
DOC-USR-0135-01 6.15 Record to USB The Z3-SBE264-10 supports writing encoded video to a storage device connected to the USB port in .ts file format. (1) Connect a USB flash drive or other USB storage device to “USB” on the back of the encoder. -
Page 39: Simultaneous Stream And Record
“aux1.ts”. (1) Set to “True” (2) Set File Path Figure 40 Using the Aux TS File Enable Option ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 40: Using Mpts To Combine Multiple Streams
MPTS plus a 20% margin. (6) Set “Destination 1” to “UDP”. ASI is not supported by the Z3-SBE264-10 hardware. (7) Set the “IP Address” and “IP Port” for the destination of the stream. In the pictured example, “221.1.2.3”... -
Page 41: Figure 43 Opening Vlc For Mpts Multicast Stream
(11) You will then see channel 1. To view channel 2, go to “Playback -> Program -> 2” in VLC. Select Playback -> Program -> 2 Figure 44 Viewing Channel 2 in VLC ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 42: Streaming Rtmp In Three Different Resolutions
7.0 STREAMING RTMP IN THREE DIFFERENT RESOLUTIONS This section shows how to use the Z3-SBE264-10 to take one video input and stream it over RTMP into three different resolutions (720p, D1, and CIF). Z3 Technology is a member of the Wowza Media Systems™... -
Page 43: Figure 46 3-Channel Rtmp Encode - Channel 1 Settings
(9) If necessary, set “Authentication” to “Enable” and enter the User name and Password. After you’re finished, your settings should look something like the following: Figure 46 3-Channel RTMP Encode – Channel 1 Settings ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 44: Configure Ch2 For Rtmp Streaming
(13) For “Dest Address”, type “192.168.0.4:1935/live/d1”, where “192.168.0.4” is the IP address of the PC with the Wowza server. Figure 48 3-Channel RTMP Encode – Channel 2 Settings ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 45: Configure Ch3 For Rtmp Streaming
(17) For “Dest Address”, type “192.168.0.4:1935/live/cif”, where “192.168.0.4” is the IP address of the PC with the Wowza server. Figure 50 3-Channel RTMP Encode – Channel 3 Settings ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 46: Set Up The Wowza Server
(1) Use IP address of Wowza server + “:8088” (2) Select “Applications” (3) Select “live” (4) Select “Test Players” Figure 51 Getting to the Wowza Test Player ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 47: Figure 52 Viewing Dme-04 Content On Wowza
(22) You should see the “Test Players” popup screen. Select the “Adobe RTMP” tab, change the Stream name to “720” (this value needs to exactly match one of the directories you are streaming to in the Z3-SBE264-10), and click “Start”. You will then see the content streamed from the Z3-SBE264- (1) Select “Adobe RTMP” tab (2) Type “720”... -
Page 48: Performing Other Operations With The Z3-Sbe264-10
DOC-USR-0135-01 8.0 PERFORMING OTHER OPERATIONS WITH THE Z3-SBE264-10 8.1 Saving Current Settings If you have a specific configuration you’d like to preserve, you can save it so that when the encoder is powered off and back on, it automatically uses those settings. -
Page 49: Figure 55 Saving A User Preset
(10) In order for these changes to take effect, the unit must be re-started. Power the unit off then back on and wait 45-60 seconds for the unit to boot up. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 50: Using A Static Ip Address
“Save” button. Un-check “Use DHCP” again Click “Save” Figure 56 Setting a Static IP Address within a User Preset ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 51: Figure 57 Reboot Reminder For Changing Ip Settings
New IP address Figure 58 ZFinder with Z3-SBE264-10 DHCP Address (10) A web browser will then open at the IP address of the Z3-SBE264-10, and you will see the HTTP- based user interface. (11) You can return to the use of DHCP by checking “Use DHCP” in the System Setup tab and saving that to the preset. -
Page 52: Making A Firmware Update
(6) You will see screens stating that the image is being uploaded and that the flash is being updated. After about one minute, you should see the main menu again. (7) Your encoder is now updated. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 53: Using The Password Feature
Use “admin” for the user name. This value cannot be edited. (5) Enter the new password. Figure 62 Password Entry Screen (6) You will now be able to access the user interface. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 54: Summary Of Options
9.1 The System Setup Tab Parameter Options (default in bold) Notes Local IP Setup Sets the IP address of the Z3-SBE264-10. Note that Local IP Address 192.168.x.y a “save” of these settings and a reboot is needed (192.168.1.117) for changes to this value to take effect. - Page 55 DOC-USR-0135-01 Clicking this causes the Z3-SBE264-10 to extract a download device logs set of diagnostic logs that can be sent to Z3 in the event of an issue to be reported. This file is saved on the PC which the GUI is being run.
-
Page 56: The User Presets Tab
The channel number (1, 2, or 3) Subchannel Always 1 in this release Codec The codec being used to encode audio for that channel ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 57: The Mpts Tab
Rate is at least 22Mbps. Destination 1 Used to define where the multiple channels will be routed to after being combined into one stream. “ASI” is not supported by Z3-SBE264-10 hardware. “UDP” NONE must be selected. Destination 2 An optional second destination for the MPTS streams. -
Page 58: The Ch1/Ch2/Ch3 Tab
High Video Profile The H.264 profile of the bitstream. Generally High Main is used for 1080p/i, Main for D1 and Baseline for ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... - Page 59 0 – 3000 (2000) # of ms to buffer. The higher the value, the smoother the encode, but also the higher the ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
- Page 60 Format ADTS Allows user to select between ADTS headers for AAC and LATM headers. (UDP/TS Only) LATM ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
- Page 61 (for example, for “example.h264” a companion file “example_0.aac” is created). MPTS can be used to combine multiple inputs into a single IP stream. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
- Page 62 User name and Password. User (RTMP Only) User name to enter when “Authentication” enabled. Password to enter when “Authentication” is Password (RTMP Only) enabled. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
- Page 63 1080i at 60 fields per second (30 frames per second), Frame Rate Divider has the following effect: Frame Rate Divider Output # fields used frame rate ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
-
Page 64: Values Appearing At The Bottom Of All Tabs
Click on this to save preset value to what was selected. Operating Mode Encoder Interlaced/Progressive This selects how the Z3-SBE264-10 is being used. Encoder Single Ch HD “Encoder Interlaced/Progressive” is the default Encode 1 to 3 Ch mode of operation – it can be used to encode up to two channels. -
Page 65: Appendix A: Configuring The Wowza Server For Rtmp
In this section, configuring Wowza Streaming Engine version 4.2.0 is described. To configure Wowza to work with the Z3-SBE264-10 RTMP streaming, the following steps are needed: (1) Log in to the Wowza Streaming Engine Manager Home page by typing http://localhost:8088, where “localhost”... -
Page 66: Figure 64 Wowza Security Settings
“Open” and “Client Restrictions” is set to “No client restrictions.” Then click “Save”: Figure 64 Wowza Security Settings The Wowza server is now configured to work with the Z3-SBE264-10. *Note: You can also specify “Require password authentication” for “RTMP Publishing.” In this case, “Authentication”... -
Page 67: Appendix B: Troubleshooting
-Is the Ethernet cable plugged in to the Z3-SBE264-10 solidly (do you see the link light)? -Do the Z3-SBE264-10 IP address and the PC IP address have the same first two values (or, if netmask is set to 255.255.255.0, the same first three values)? -Do the Z3-SBE264-10 and the PC have the same netmask? (Default value is 255.255.0.0)
