CONFIDENTIAL
DOC-USR-0239-04
User Guide

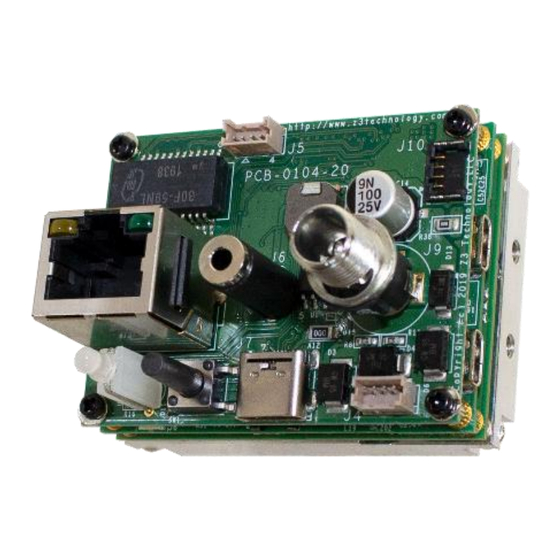

HD HEVC/H.265 Encoding System
Rapid Production Starter Kit
Z3-Q603-RPS
Model Name:
DOC-USR-0239-04
Manual Version 4.0
Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use.
This document contains proprietary information of Z3 Technology, LLC ("Z3"). This document may not be used, reproduced, disclosed, or
disseminated to anyone without the prior written approval of an authorized representative of Z3. Z3 reserves the right to change this product at
any time and without notice. All product names, trademarks, trade names, service marks, or service names mentioned in this document are the
property of their respective owners.
Z3 Technology, LLC incorporates HDMI® technology. The terms of HDMI and HDMI High-Definition Multimedia Interface, and
the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
1
____________________________________________________________________________________
Z3 Technology, LLC ♦ 100 N. 8th St. STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702
