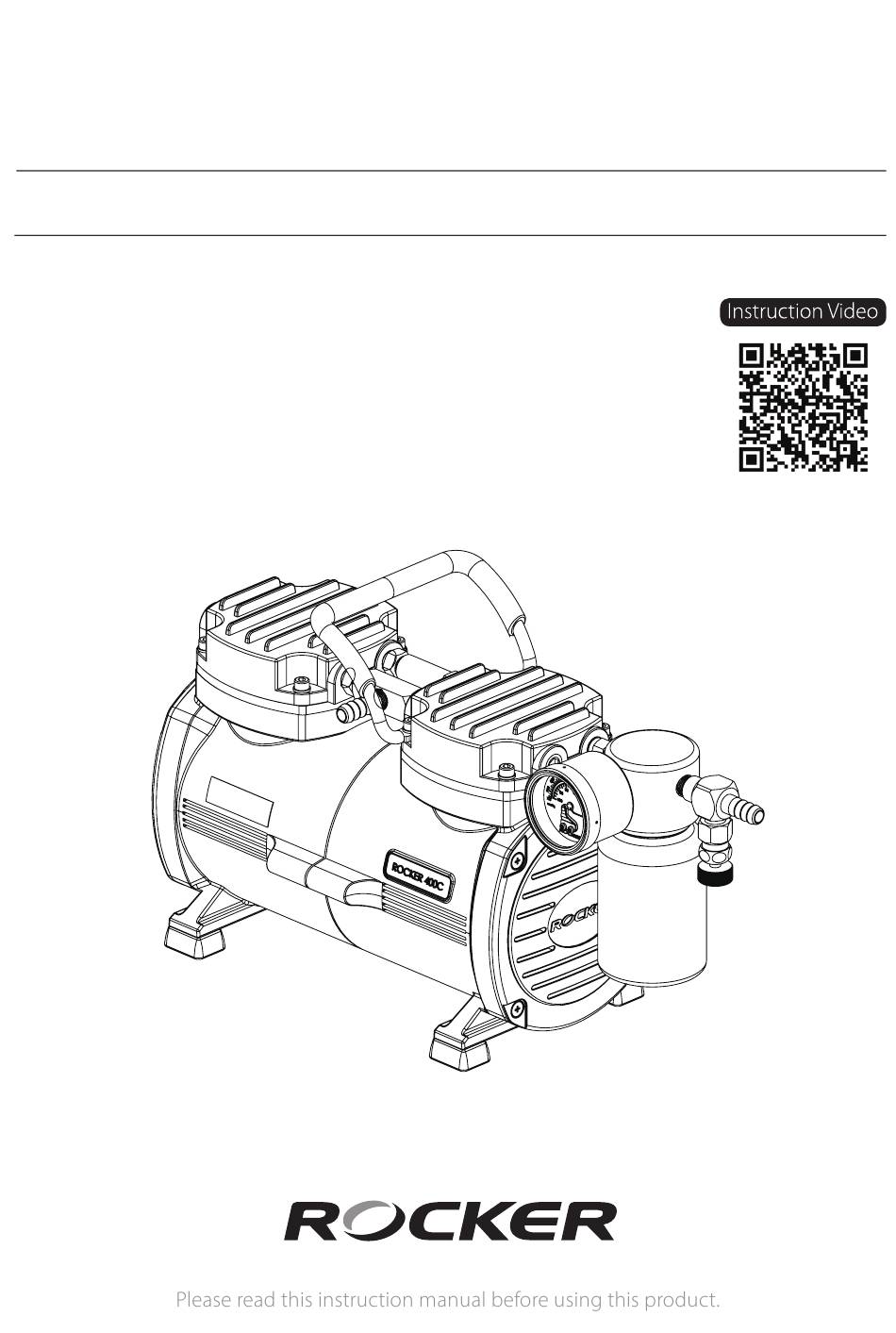

- Page 1 INSTRUCTION MANUAL PTFE Coated Chemical Resistant Vacuum Pump Model No. Rocker 300C Rocker 400C / 410C Rocker 900C / 910C...
- Page 2 Important Notice This instrument is designed for laboratory usage only. Please read this manual carefully before installing and operating. The instrument shall not be modified in any way. Any modification will void the warranty and may result in potential hazard. We are not responsible for any injury or damage caused by any non-intended purposes and modifying the instrument without authorization.
- Page 3 If there is any problem, please keep the serial number along with packing case and contact your local distributor immediately for assistance. Main Part Diagram Rocker 300C Position Designation Position...

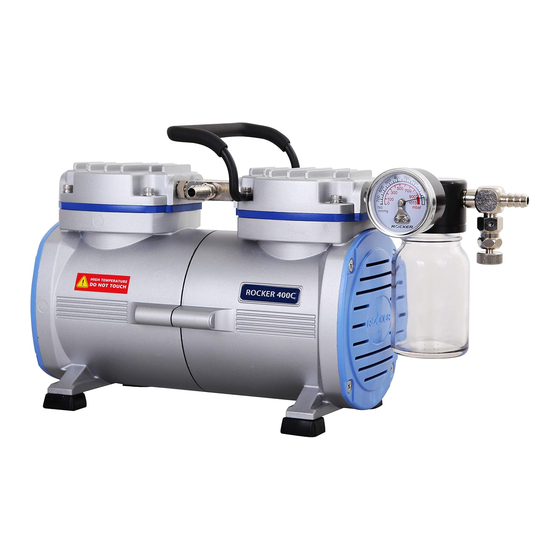

- Page 4 Rocker 400C Rocker 410C Position Designation Position Designation Power Switch Vacuum Gauge Air Outlet Vacuum Regulator Air Inlet Moisture Trap Handle Rocker 900C Rocker 910C...
- Page 5 Operation Operation A. Press power switch (1) to activate the pump after making sure all tubing are well connected. A cold trap or trap bottle is recommended to connect before pump while amount of moisture ● exists. Hoop holder is available for fixing filtration apparatus and saving space. ●...
- Page 6 Maintenance 1. Please remove the liquid in the moisture trap after every use. If the liquid in moisture trap is more than 70%, please stop the experiment immediately to empty the liquid. 2. After finishing the experiment, please remove the liquid in the moisture trap and keep pumping the air for at least 2 minutes to withdraw the residual steam.
- Page 7 189900-06 Glass moisture trap / vacuum regulator for Rocker 900C / 910C 167300-37 Hoop Holder for Rocker 300 / 400 / 410 / 300C / 400C / 410C, applicable apparatus dia. Max.118 mm 189300-37 Hoop Holder for Rocker 300 / 400 / 410 / 300C / 400C / 410C, applicable apparatus dia.
- Page 8 Rocker Scienti c Co., Ltd. Tel: +886-2-26033311 Fax: +886-2-26036622 E-mail:export@rocker.com.tw https://www.rocker.com.tw...
