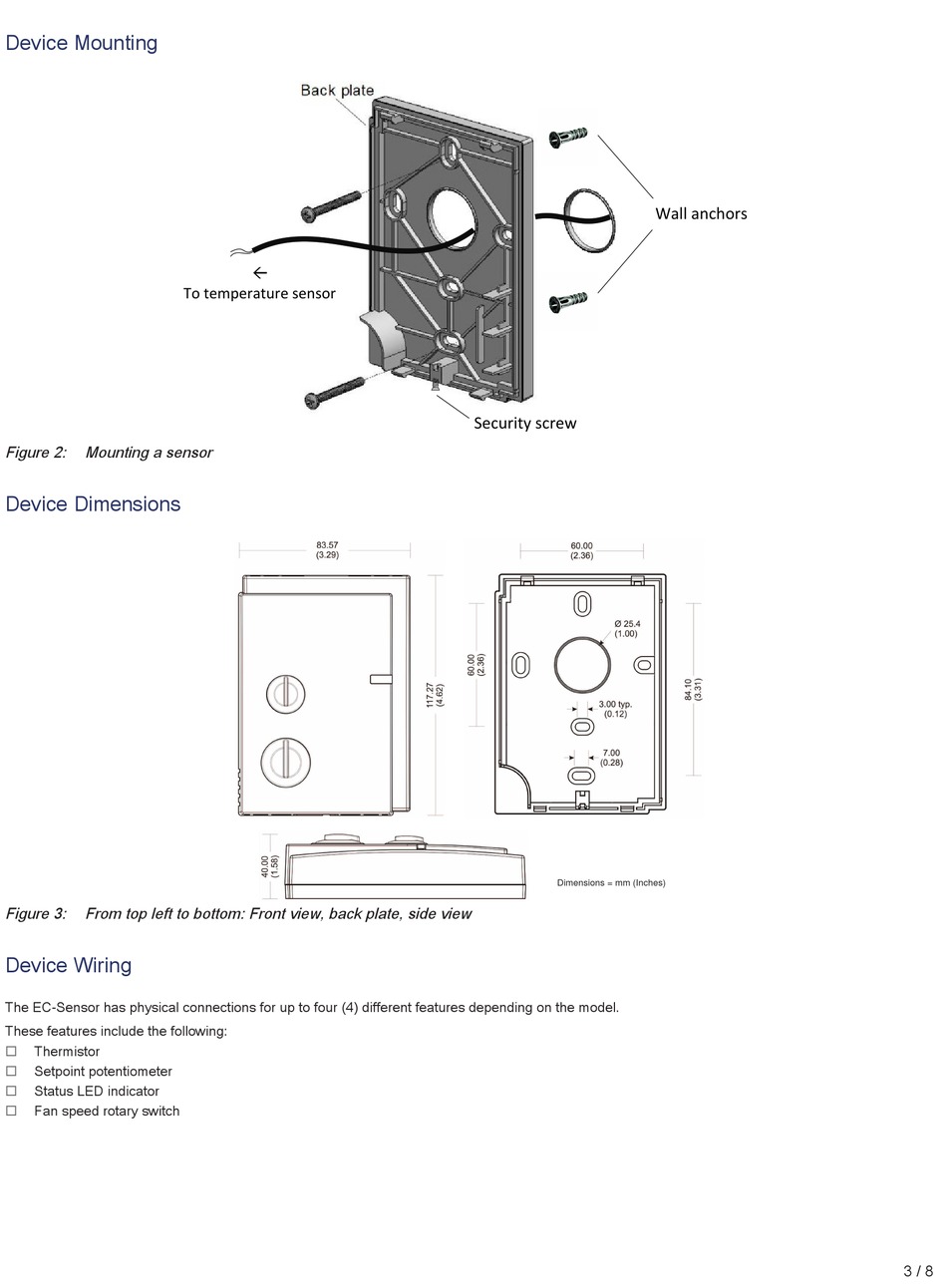

Device Mounting
Figure 2:
Mounting a sensor
Device Dimensions
Figure 3:
From top left to bottom: Front view, back plate, side view
Device Wiring
The EC-Sensor has physical connections for up to four (4) different features depending on the model.
These features include the following:
£
Thermistor
£
Setpoint potentiometer
£
Status LED indicator
£
Fan speed rotary switch
ß
To temperature sensor
Security screw
Dimensions = mm (Inches)
Wall anchors
3 / 8
