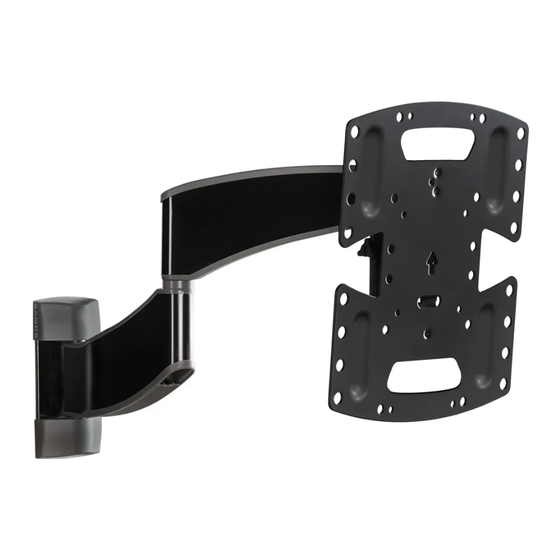

BSF 316
INSTRUCTION MANUAL
Texto en español, página 10
WE'RE HERE TO HELP
Want to watch a video that
shows how easy this DIY
project will be?
Watch it now at:
SANUS.com/2781
GET IT
RIGHT
THE FIRST TIME
Follow this step-by-step
instruction manual to
speed up your installation.
Get it right the first time.
HeightFinder™ shows you
where to drill.
Check it out at:
SANUS.com/1172
Our US-based install experts
are standing by to help.
Call us at:
800-359-5520
Or, chat at:
SANUS.com/chatSP
Advertisement
Table of Contents
Related Manuals for LEGRAND SANUS BSF316
Summary of Contents for LEGRAND SANUS BSF316
- Page 1 GET IT RIGHT THE FIRST TIME Follow this step-by-step BSF 316 instruction manual to speed up your installation. INSTRUCTION MANUAL Texto en español, página 10 WE’RE HERE TO HELP Want to watch a video that Get it right the first time. Our US-based install experts shows how easy this DIY HeightFinder™...
-
Page 2: Wall Construction
IMPORTANT SAFETY INSTRUCTIONS – PLEASE READ MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS Please read through these instructions completely to be sure you’re comfortable with this easy install process. Check your TV owner’s manual to see if there are any special requirements for mounting your TV. If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service 1-800-359-5520. -
Page 3: Before You Begin
Dimensions in [mm] 7.87 200.0 2.95 75.0 7.87 2.95 3.94 9.76 200.0 75.0 100.0 248.0 3.94 100.0 8.66 220.0 0.39 5° 0.34 8.6 THRU 10.0 4.51 5.30 114.5 134.5 60 TO 90 15° 0.39 16.05 2.30 407.6 58.5 3.36 85.2 11.64 295.6 12.02... - Page 4 Supplied Parts and Hardware WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts! NOTE: Not all hardware included will be used.
- Page 5 STEP 1 Attach TV Bracket to TV 1.1 Select TV Screw Diameter 1.2 Select TV Screw Length and Spacers Only one screw size fits your TV. NO SPACER SPACER NEEDED • Flat Back TV • Flat Back TV • Rounded or Irregular Back TV with extra space needed [for deep inset holes or cable interference] [TV brackets NOT resting flat on your TV]...
- Page 6 Wood Stud Installation STEP 2A Attach Wall Plate CAUTION: Avoid potential personal injury or property damage! Min. 3 ½ in. (8.9 cm) Min. 1 ½ in. (3.8 cm) ● Drywall covering the wall must not exceed 5/8 in. (1.5 cm) ●...
- Page 7 Solid Concrete or Concrete Block Installation STEP 2B Attach Wall Plate POSITION TEMPLATE CAUTION: Avoid potential personal Visit injury or property damage! HeightFinder™ sanus.com ● Mount the arm assembly directly /1172 onto the concrete surface (no surface covering) ● Minimum solid concrete thickness: 8 in.
- Page 8 STEP 3 Hang TV onto Wall Plate SECURELY TIGHTEN HANG YOUR TV HEAVY! You may need assistance with this step. CAUTION: Avoid potential personal injury or property damage! Always make sure your securement screw is tightened, so the TV is securely fastened to the arm assembly To lock the TV onto arm assembly , install the securement Hang the TV onto the arm assembly...
-
Page 9: Level Adjustment
TV Adjustments LEVEL ADJUSTMENT 2. Level your TV with 1. Loosen screw 3. Tighten screw screw CAUTION: Screw MUST be loosened before STEP 2. TILT ADJUSTMENT Your TV should adjust easily when moved, then stay in place. Adjust the tilt tension knobs if your TV naturally tilts up or down. - Page 10 INSTRUCCIONES IMPORTANTES DE SEGURIDAD ESPAÑOL – – LEA TODO ESTE MANUAL ANTES DE UTILIZAR ESTE PRODUCTO GUARDE ESTAS INSTRUCCIONES Lea atentamente estas instrucciones en su totalidad para asegurarse de que está familiarizado con el sencillo proceso de instalación. Consulte igualmente el manual de su televisor para conocer si existen requisitos especiales para el montaje de su aparato. Si no entiende las instrucciones o si tiene dudas acerca de la seguridad de la instalación, el montaje o el uso del producto, póngase en contacto con el Servicio de Atención al Cliente o llame a nuestro servicio técnico al número 1-800-359-5520 .
- Page 11 PASO 2 Fijar la placa mural a la pared PÁGINA 6 ESPAÑOL ADVERTENCIA: Este producto contiene piezas pequeñas que, en caso de ser tragadas, podrían producir asfixia. Antes de iniciar el ensamblaje, compruebe que todas las piezas estén incluidas y en buenas condiciones. Si faltan piezas o alguna está dañada, no devuelva el artículo al distribuidor. Póngase en contacto con el servicio de atención al cliente. Nunca utilice piezas deterioradas. NOTA: No todos los elementos de sujeción incluidos deberán utilizarse.
- Page 12 All other brand names or marks are used for identification purposes and are trademarks of their respective owners. Legrand AV Inc. y sus empresas asociadas y filiales (colectivamente “Legrand AV”) tienen la intención de que este manual sea preciso y completo. Sin embargo, Legrand AV no garantiza que la información que contiene incluya todos los detalles condiciones y variaciones, ni que contemple toda posible contingencia en conexión con la instalación y uso de este producto.
