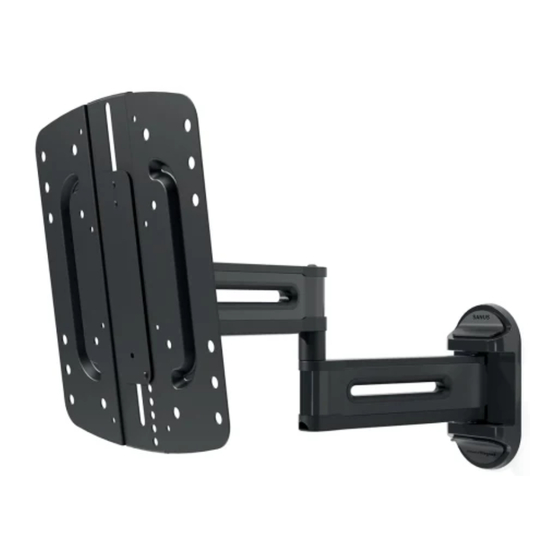

BSF517 -B1
INSTRUCTION MANUAL
Texto en Español, página 12
WE'RE HERE TO HELP
Want to watch a video that
shows how easy this is?
Watch it now at:
SANUS.com/3166
Get it right the first time.
HeightFinder™ shows you
where to drill.
Use it now:
SANUS.com/1172
Our live US-based install
experts are standing by to help.
Call us at:
+1 (800) 359-5520
Or, chat at:
SANUS.com/chatSP
Advertisement
Table of Contents
Related Manuals for LEGRAND sanus BSF517-B1
Summary of Contents for LEGRAND sanus BSF517-B1
- Page 1 BSF517 -B1 INSTRUCTION MANUAL Texto en Español, página 12 WE’RE HERE TO HELP Want to watch a video that Get it right the first time. Our live US-based install shows how easy this is? HeightFinder™ shows you experts are standing by to help. where to drill.
-
Page 2: Wall Construction
IMPORTANT SAFETY INSTRUCTIONS – PLEASE READ MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS Please read through these instructions completely to be sure you’re comfortable with this easy install process. Check your TV owner’s manual to see if there are any special requirements for mounting your TV. If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service: +1 (800) 359-5520. -
Page 3: Before You Begin
Dimensions TV INTERFACE TOP VIEW - EXTENDED SIDE VIEW - EXTENDED 2.95in 7deg 75mm 2.0in 51mm 7.9in HEIGHT ADJUST UP 200mm 90deg 90deg 10.6in 268mm 7.87in 3.94in 200mm 2.95in 75mm 100mm 5deg 17.0in 433mm 3.94in 2.00in TOP VIEW - RETRACTED 100mm 50.8mm 8.8in... -
Page 4: Supplied Parts And Hardware
Supplied Parts and Hardware WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts! NOTE: Not all hardware included will be used. - Page 5 STEP 1 Attach TV Bracket to TV 1.1 Select TV Screw Diameter 1.2 Select TV Screw Length and Spacers Only one screw size fits your TV. NO SPACER SPACER NEEDED • Flat Back TV • Flat Back TV • Rounded or Irregular Back TV with extra space needed [for deep inset holes or cable interference] [TV brackets NOT resting flat on your TV]...
-
Page 6: Wood Stud Installation
STEP 2A Attach Wall Plate Wood Stud Installation CAUTION: Avoid potential personal injury or property damage! ● Drywall covering the wall must not exceed 5/8 in. (16 mm) ● Minimum wood stud size: nominal 2 x 4 in. (51 x 102 mm) actual 1½ x 3½ in. (38 x 89 mm) ●... - Page 7 STEP 2B Attach Wall Plate Solid Concrete or Concrete Block Installation CAUTION: Avoid potential personal injury or property damage! ● Mount wall plate directly onto concrete surface (no wall covering) ● Minimum solid concrete thickness: 8 in. (203 mm) ● Minimum concrete block size: 8 x 8 x 16 in.
- Page 8 STEP 3 Hang TV onto Wall Plate HEAVY! You may need assistance with this step. CAUTION: Avoid potential personal injury or property damage! Locking screw must be installed to secure the TV to the arm assembly...
-
Page 9: Manage Cables
Manage Cables IMPORTANT: Fully extend arm assembly to ensure enough slack in cables. 1. Slide to remove the cable covers 2. Route your cables through the arm assembly 3. Reattach the cable covers over the cables. -
Page 10: Tilt Adjustment
TV Adjustments TILT ADJUSTMENT Your TV should adjust easily when moved, then stay in place. If your TV is too loose or too tight, adjust the side tension knob by hand. NOTE: Once your TV is in place, tighten the tension knob to prevent unwanted movement. -
Page 11: Height Adjustment
HEIGHT ADJUSTMENT . Remove the TV (see below). . Remove screw . Adjust the position of the hanging tab Slide tab UP to LOWER your TV. Slide tab DOWN to RAISE your TV. . Secure with screw . Rehang your TV (STEP 3 on PAGE 8). To LOWER Your TV To RAISE... - Page 12 INSTRUCCIONES IMPORTANTES DE SEGURIDAD – ESPAÑOL LEA TODO ESTE MANUAL ANTES DE UTILIZAR ESTE PRODUCTO – GUARDE ESTAS INSTRUCCIONES Lea atentamente estas instrucciones en su totalidad para asegurarse de que está familiarizado con el sencillo proceso de instalación. Consulte igualmente el manual de su televisor para conocer si existen requisitos especiales para el montaje de su aparato. Si no entiende las instrucciones o si tiene dudas acerca de la seguridad de la instalación, el montaje o el uso del producto, póngase en contacto +1 (800) 359-5520 con el Servicio de Atención al Cliente o llame a nuestro servicio técnico al número...
-
Page 13: Antes De Comenzar
Dimensiones VER PÁGINA 3 Antes de comenzar VER PÁGINA 3 Retire el soporte de su televisor... ¡si ya lo tenía instalado claro! Instale todos los accesorios que quiera añadir a su televisor. Compruebe en los manuales de los accesorios si es necesario instalarlos ANTES de montar el televisor. Proteja la pantalla del televisor cuando lo ponga boca abajo para la instalación. - Page 14 1,3 Arme las placas de sujeción del televisor VER PÁGINA 5 NOTA: La lengüeta colgante del soporte del televisor 04 debe estar orientada hacia la parte superior del televisor. CONSEJO: Antes de instalar el soporte para TV , consulte el ajuste de altura en la PÁGINA 11. PRECAUCIÓN: Evite posibles lesiones personales y daños materiales.
-
Page 15: Ajustes Del Televisor
PASO 3 Fije el televisor a la placa mural VER PÁGINA 8 ¡ELEMENTO PESADO! Es posible que necesite ayuda en este paso. PRECAUCIÓN: Evite el riesgo de lesiones y daños materiales. Este tornillo debe instalarse para fijar el televisor al ensamblaje del brazo Organizar los cables VER PÁGINA 9 IMPORTANTE: Extienda el brazo... - Page 16 Legrand AV Inc. and its a iliated corporations and subsidiaries (collectively, “Legrand”), intend to make this manual accurate and complete. However, Legrand makes no claim that the information contained herein covers all details, conditions, or variations. Nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Legrand makes no representation of warranty, expressed or implied, regarding the information contained herein.
