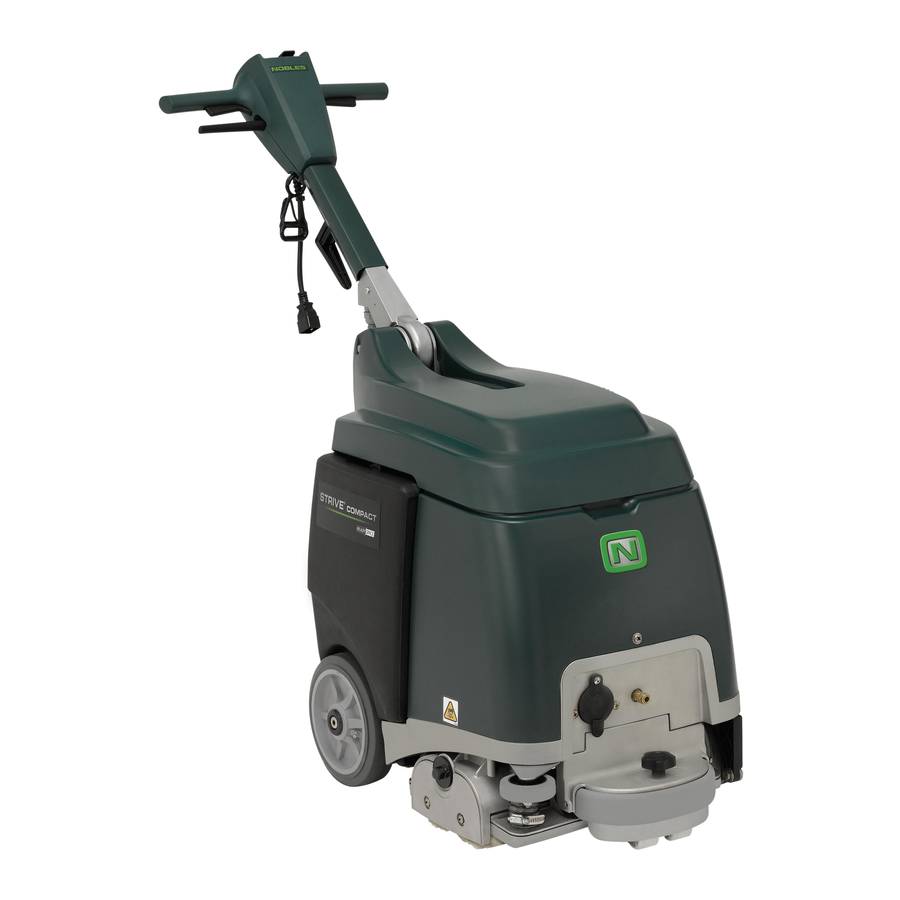

Nobles Compact Specifications

Brush Drive System
Roller diameter
Roller length
Roller motor power (2 motors)
Roller RPM
Motor RPM
Chassis / Body Construction
Chassis construction
Wheel descriptions
Vacuum System
Airflow at orifice
Vacuum motor amps
Vacuum motor power
Vacuum motor stages
Sealed waterlift
Dimensions
(Handle folded flat for storage)
Length
Machine Width
Height
Net weight
Solution & Recovery System
Solution tank capacity
Recovery tank wet capacity
Spray jet count
Power Consumption
Amps
Voltage
Watts
Cord
Electrical Safety Approvals
Pump System
Solution pump pressure
Solution pump amps
Solution pump flow rate
Sound Level *
Decibel ration @ operators ear
Warranty
* Sound levels per ISO 11201 as recommended by the American Association of Cleaning Equipment Manufacturers & OSHA
Strive
Cord-electric, ReadySpace
specifications
Cast aluminum frame, rotational molded tanks and injection molded plastic
3 years/2500 hrs on parts and labor.
10 years on rotationally-molded polyethylene tanks.
Please contact your Nobles representative for additional warranty details.
Nobles | 701 N. Lilac Drive | P.O. Box 1452 | Minneapolis MN 55440-1452 | 800.553.8033 | www.nobles.com | nobles@tennantco.com
Compact
®
4 in / 110 mm
15 in / 380 mm
.3 hp / .22 kW (each)
450 rpm
1600 rpm
cover
8 in / 200mm
99 cfm / 2.8 m
3
7.1 amps/ 3.6 amps
1.2 hp / .89 kW
2 stage
86 in / 2,180mm
30 in / 750 mm
19 in / 490 mm
28 in / 710 mm
117 lb / 53 kg
5 gal / 19 L
5 gal / 19 L
1-quick connect
11 amps / 5.5 amps
120 V / 230 V
1320 watts
50 ft / 15 m
ETL Tested for UL & CSA Standards
65 psi / 4.48 bar
.5 amp / .25 amp
.2 gpm / .76 L/min
69 dBA
Specifications subject to change without notice. REV 03.23.2008
®
/min
