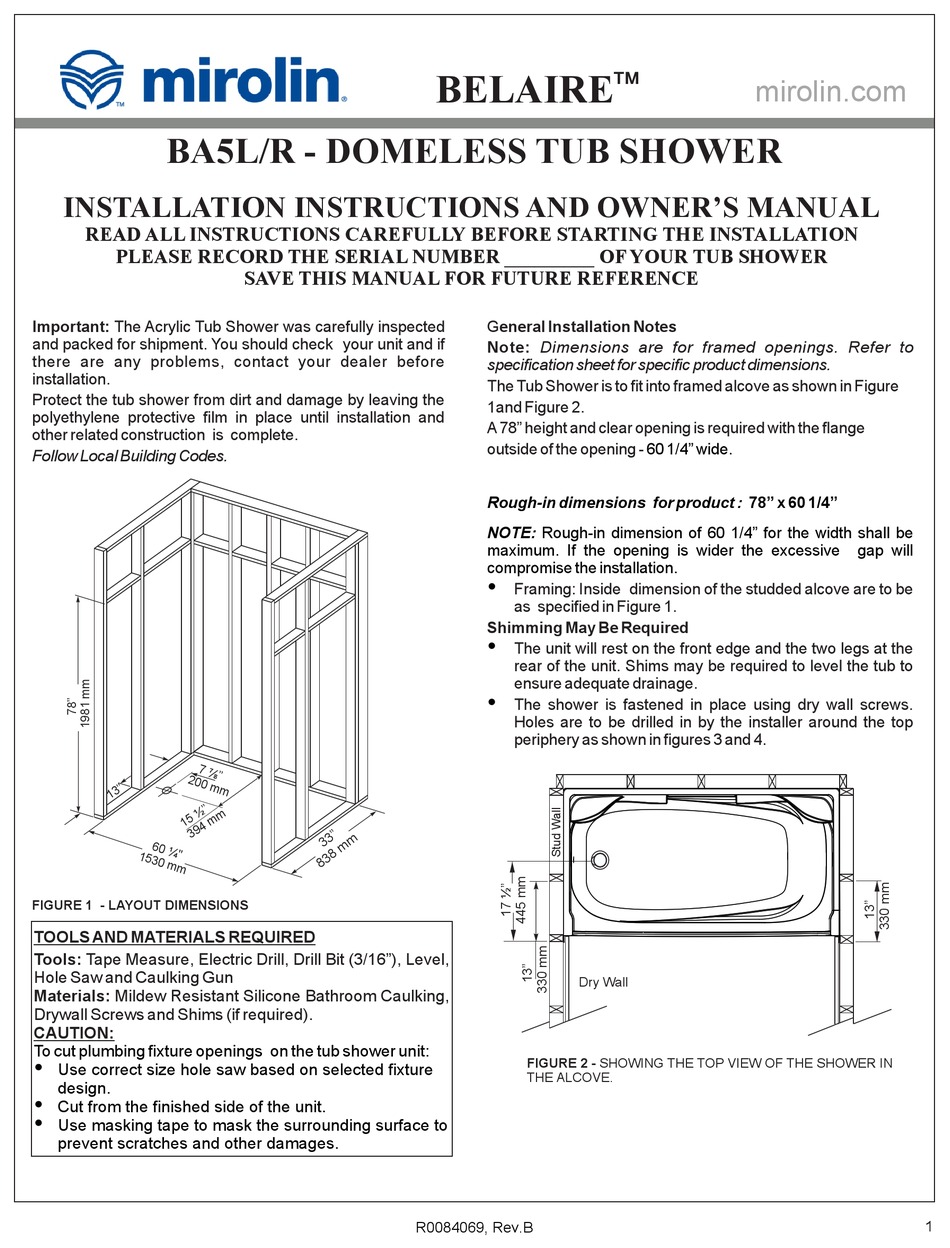

Mirolin BELAIRE BA5L/R Installation Instructions And Owner's Manual

BA5L/R - DOMELESS TUB SHOWER
INSTALLATION INSTRUCTIONS AND OWNER'S MANUAL
READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING THE INSTALLATION
PLEASE RECORD THE SERIAL NUMBER _________ OF YOUR TUB SHOWER
Important: The Acrylic Tub Shower was carefully inspected
and packed for shipment. You should check your unit and if
there are any problems, contact your dealer before
installation.
Protect the tub shower from dirt and damage by leaving the
polyethylene protective film in place until installation and
other related construction is complete.
Follow Local Building Codes.
FIGURE 1 - LAYOUT DIMENSIONS
TOOLS AND MATERIALS REQUIRED
Tools: Tape Measure, Electric Drill, Drill Bit (3/16"), Level,
Hole Saw and Caulking Gun
Materials: Mildew Resistant Silicone Bathroom Caulking,
Drywall Screws and Shims (if required).
CAUTION:
To cut plumbing fixture openings on the tub shower unit:

Use correct size hole saw based on selected fixture
design.

Cut from the finished side of the unit.

Use masking tape to mask the surrounding surface to
prevent scratches and other damages.
SAVE THIS MANUAL FOR FUTURE REFERENCE
R0084069, Rev.B
BELAIRE™
General Installation Notes
Note: Dimensions are for framed openings. Refer to
specification sheet for specific product dimensions.
The Tub Shower is to fit into framed alcove as shown in Figure
1and Figure 2.
A 78" height and clear opening is required with the flange
outside of the opening -
Rough-in dimensions for product : 78" x 60 1/4"
NOTE: Rough-in dimension of 60 1/4" for the width shall be
maximum. If the opening is wider the excessive
compromise the installation.

Framing: Inside dimension of the studded alcove are to be
as specified in Figure 1.
Shimming May Be Required

The unit will rest on the front edge and the two legs at the
rear of the unit. Shims may be required to level the tub to
ensure adequate drainage.

The shower is fastened in place using dry wall screws.
Holes are to be drilled in by the installer around the top
periphery as shown in figures 3 and 4.
Dry Wall
FIGURE 2 - SHOWING THE TOP VIEW OF THE SHOWER IN
THE ALCOVE.
mirolin.com
60 1/4" wide.
gap will
1
