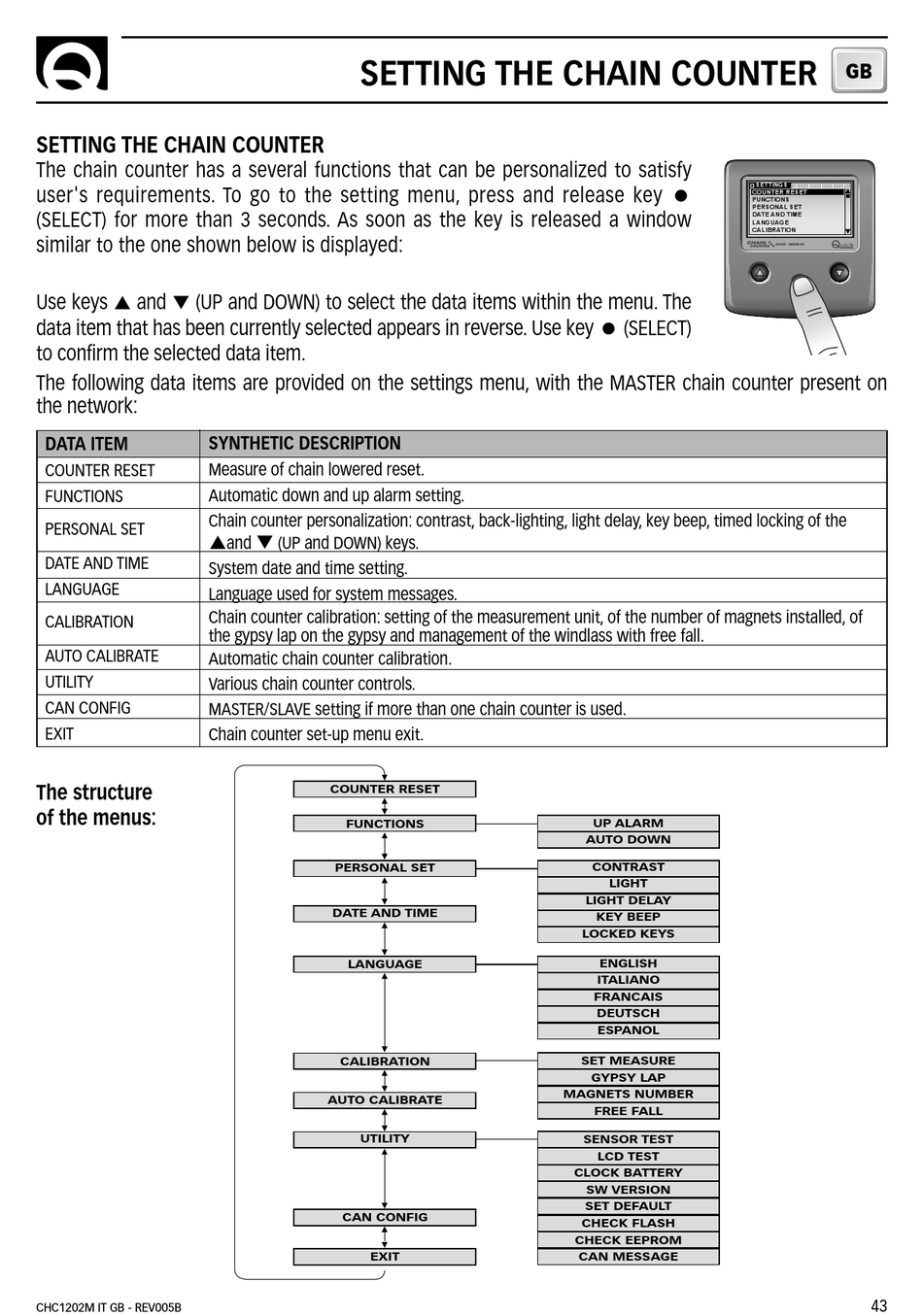

Quick CHC 1202 M User Manual page 43

SETTING THE CHAIN COUNTER
The chain counter has a several functions that can be personalized to satisfy
user's requirements. To go to the setting menu, press and release key =
(SELECT) for more than 3 seconds. As soon as the key is released a window
similar to the one shown below is displayed:
p q
Use keys and (UP and DOWN) to select the data items within the menu. The
data item that has been currently selected appears in reverse. Use key = (SELECT)
to confirm the selected data item.
The following data items are provided on the settings menu, with the MASTER chain counter present on
the network:
SYNTHETIC DESCRIPTION
DATA ITEM
Measure of chain lowered reset.
COUNTER RESET
Automatic down and up alarm setting.
FUNCTIONS
Chain counter personalization: contrast, back-lighting, light delay, key beep, timed locking of the
PERSONAL SET
p
DATE AND TIME
System date and time setting.
LANGUAGE
Language used for system messages.
Chain counter calibration: setting of the measurement unit, of the number of magnets installed, of
CALIBRATION
the gypsy lap on the gypsy and management of the windlass with free fall.
AUTO CALIBRATE
Automatic chain counter calibration.
UTILITY
Various chain counter controls.
CAN CONFIG
MASTER/SLAVE setting if more than one chain counter is used.
EXIT
Chain counter set-up menu exit.
The structure
of the menus:
CHC1202M IT GB - REV005B
SETTING THE CHAIN COUNTER
q
and (UP and DOWN) keys.
COUNTER RESET
FUNCTIONS
PERSONAL SET
DATE AND TIME
LANGUAGE
CALIBRATION
AUTO CALIBRATE
UTILITY
CAN CONFIG
EXIT
UP ALARM
AUTO DOWN
CONTRAST
LIGHT
LIGHT DELAY
KEY BEEP
LOCKED KEYS
ENGLISH
ITALIANO
FRANCAIS
DEUTSCH
ESPANOL
SET MEASURE
GYPSY LAP
MAGNETS NUMBER
FREE FALL
SENSOR TEST
LCD TEST
CLOCK BATTERY
SW VERSION
SET DEFAULT
CHECK FLASH
CHECK EEPROM
CAN MESSAGE
GB
SETTINGS
COUNTER RESET
FUNCTIONS
PERSONAL SET
DATE AND TIME
LANGUAGE
CALIBRATION
