INSTALLATION
GB
INSTALLING THE TERMINALS
In order for data to be correctly transmitted when several chain counters are employed, terminator (150
ohm) must be installed.

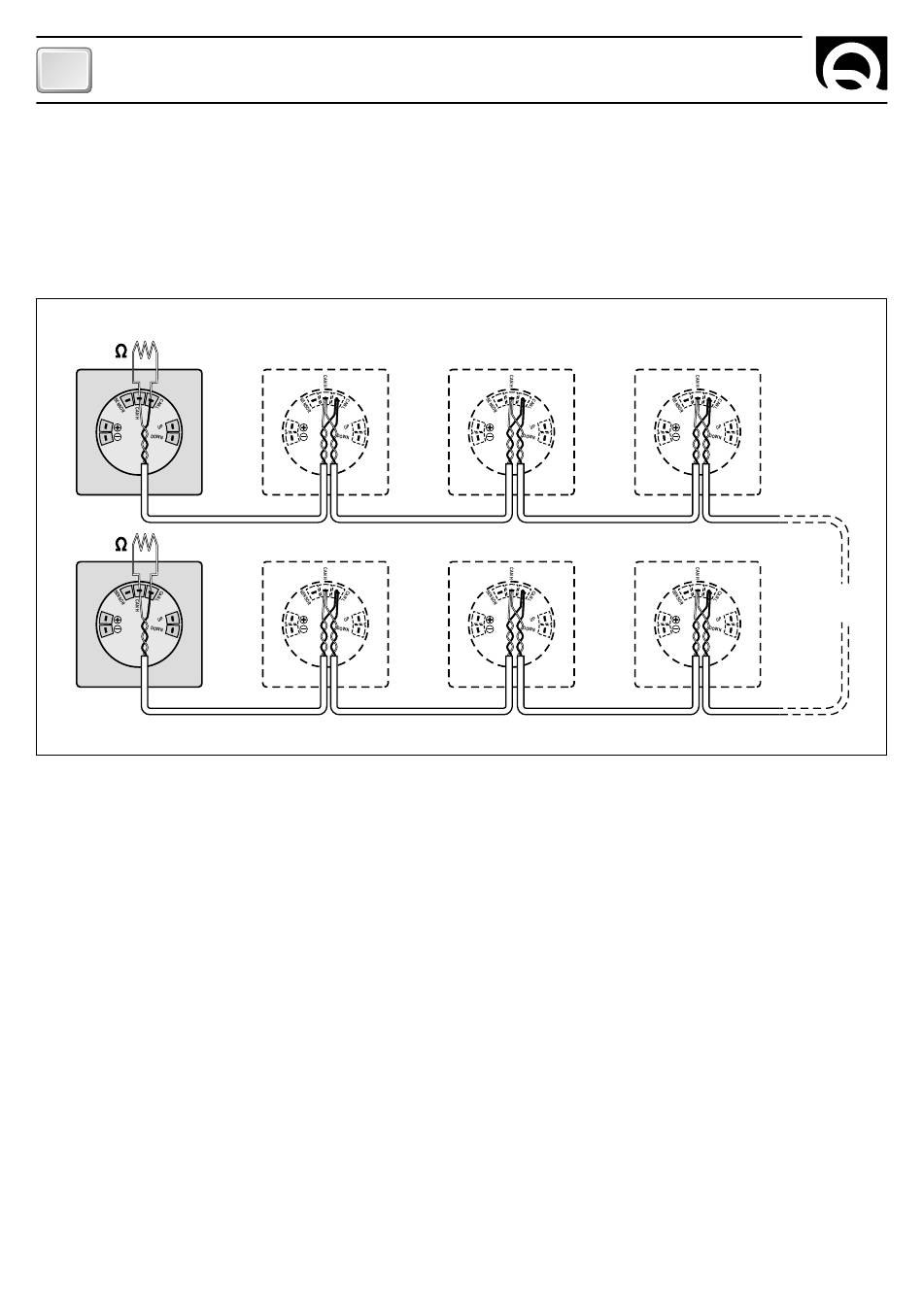

The terminator should be connected between signals CANH and CANL of the first and last chain counter
included in the network, as illustrated in the figure below:
150
1
150
20
Do not install the terminator if just one chain counter is used.
38
2
19
3
18
CHC1202M IT GB - REV005B
4
INSTRUMENTS
FROM 5 TO 16
17
