Member's Mark TPGAZ2029 Assembly Instructions & User Manual

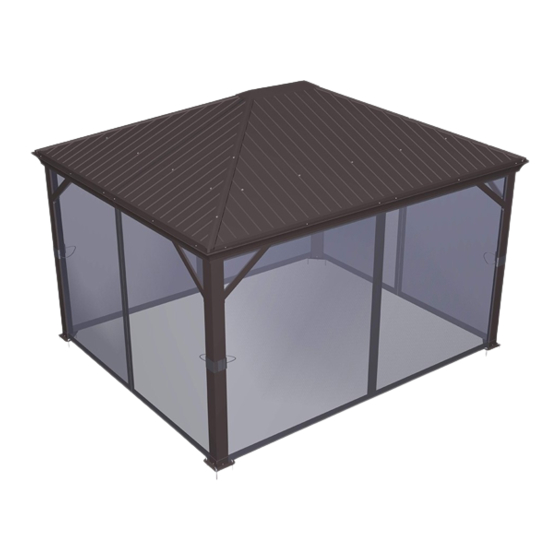

10'x12'alameda hardtop gazebo
Hide thumbs
Table of Contents

Advertisement

Quick Links

Assembly Instructions & User's Manual
Member's Mark
Item Number: 980298079
Model Number:TPGAZ2029
Customer Assistance (spare/replacement parts):1-800-847-7508
or Email: servicet@taipengchina.com
DISCLAIMER: Supplier is fully responsible for the entire content of the assembly
manual, including all Sam's Club suggested edits or revisions.
THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
for
[10'x12'ALAMEDA HARDTOP
TM
GAZEBO]
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TPGAZ2029 and is the answer not in the manual?

Questions and answers

Related Manuals for Member's Mark TPGAZ2029

Summary of Contents for Member's Mark TPGAZ2029

  • Page 1 Assembly Instructions & User’s Manual Member’s Mark [10'x12'ALAMEDA HARDTOP GAZEBO] Item Number: 980298079 Model Number:TPGAZ2029 Customer Assistance (spare/replacement parts):1-800-847-7508 or Email: servicet@taipengchina.com DISCLAIMER: Supplier is fully responsible for the entire content of the assembly manual, including all Sam’s Club suggested edits or revisions.

  • Page 2: Table Of Contents

    Table of Contents Quality Statement ..................3 Important Safety Information ................3 Before Assembly ....................3 Care & Use.....................3 Product Information..................3 Components....................4 Hardware......................6 Tools.......................6 Step 1 – Step 3....................7 Warning....................18 Danger....................18 Care & Use and Storage Instructions.............18 Warranty Information..................19...

  • Page 3: Quality Statement

    Quality Statement Important Safety Information Please read all instructions carefully before assembling this gazebo. For your safety, assembly by two or more adults is strongly recommended. Hardware may loosen overtime. Periodically check that all connections are tight. NOTICE: To prevent injury and property damage from unexpected tipping of furniture, we highly recommend installation of the anti-tip kit included with this product.

  • Page 4: Components

    Components Upper Central Connector Connector Lower Central Base Connector Long Top Bar Roof Support -Left Top 21.85" / 555mm Roof Support Short Top Bar 21.85" / 555mm -Right Top Roof Support Left Lintel -Left Middle 41.73" / 1060mm Roof Support Right Lintel 41.73"...
  • Page 5 Components Edge Cover Roof Panel -Short Left Roof Panel Edge Cover -Short Right Edge Cover Roof Panel -Long Left Edge Cover Roof Panel -Long Right Roof Panel Roof Panel Roof Panel Need Assistance? Visit us at: samsclub.com/membersmarkhelp...

  • Page 6: Hardware

    Hardware Bolt/Flat Washer M6*15 Bolt/Plastic Washer M6*25 Bolt/Plastic Washer M6*35 Bolt/Flat Washer/Nut M6*55 Bolt M6*15 Spacer Hanger Stake Tools Wrench (Included) Hammer(Not Included) Allen Wrench (Included) Qty: Part No:EE Qty: Part No:JJ Safety goggles Hardhat Gloves (Not Included) (Not Included) (Not Included) Stepladder Electric drill...

  • Page 7: Step 1 - Step 3

    Step 1 (AA) (FF) (HH) Bolt/Flat Washer (M6X15) Bolt (M6X15) Hanger Qty: 128 Qty: 16 Qty: 44 (EE) (KK) Wrench Allen Wrench Qty: 1 Qty: 1 Fig 1 1- a. Connect Base (L) and Post (J) with Bolt/Flat Washer M6*15(AA). Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
  • Page 8 ×10PCS ×12PCS Fig 2 1-b. Insert the Hanger (HH) into the track of Right Lintel (E2). Insert the Connector (F) into Left Lintel (E1)/Right Lintel (E2), at the same time connect it to Left Lintel (E1)/Right Lintel (E2) by the Connector (H) with Bolt/Flat Washer M6*15(AA).
  • Page 9 E3/E4 E3/E4 Fig 3 Fig 4 Fig 5 1-c. Attach the lintel (E3/E4) to Post (J) with Bolt/Flat Washer M6*15(AA)/Bolt M6*15(FF) .See Fig.3-4 A ttach the Righ t Suppor t B ar (G1/G2) to Lintel(E3/E4) and Post(J) with Bolt/Flat Washer M6*15(AA). See Fig.5 Fig 6 Fig 7...
  • Page 10 Fig 8 Fig 9 Attach the Left Support Bar(G1) to Left Lintel(E1) and Post(J) with Bolt/Flat Washer M6*15(AA), attach the Right Support Bar (G2) to Right Lintel(E2) and Post (J) with Bolt/Flat Washer M6*15(AA), Attach the Top Connector(K) to Post (J) with Bolt/Flat Washer M6*15(AA).See Fig.8-9 Equal diagonal distance E1/E3 E2/E4...
  • Page 11 Step 2 (AA) (BB) (DD) Bolt/Flat Washer Bolt/Plastic Washer Bolt/Flat Washer/Nut (M6X15) (M6x25) (M6X55) Qty: 8 Qty: 86 Qty: 2 (EE) Wrench Qty: 2 Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
  • Page 12 Fig.12 2-a. Attach the long Top Bar (C) to Top Connector (K) with Bolt/Flat Washer /Nut M6*55 (DD), Attach Long Top Bar (C) to Lower Central Connector (B) with Bolt/Flat Washer M6*15(AA), See Fig.12 Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
  • Page 13 Fig.13 2-b. Attach Short Top Bar (D) to Lower Central Connector (B) with Bolt/Flat Washer M6*15(AA), attach Short Top Bar (D) to Connector (H) with Bolt/Flat Washer M6*15(AA), using the same method to attach others. See Fig.13 Fig.14 2-c . Attach Upper Central Connector (A) to Lower Central Connector (B) with Bolt/Plastic Washer M6*25(BB), at the same time Screw the hook(T) to the Upper Central Connector (A) and twist to tighten.See Fig.14.
  • Page 14 Fig.15 Fig.16 2-d Attach the Roof Supports-Left Top (N1) /Roof Supports-Right Top (N2) / Roof Supports-Left Middle (O1) / Roof Supports-Right Middle (O2) to the Long Top Bar (C) with Bolt/Flat Washer M6*15(AA). Attach the Roof Supports-Left Top (N1) /Roof Supports-Right Top (N2) / Roof Supports-Left Middle (O1) / Roof Supports-Right Middle (O2) /Roof Supports-Upper Middle and MiddleTop (O3) to the Short Top Bar (D) with Bolt/Flat Washer M6*15(AA).See Fig.15-16.
  • Page 15 Step 3 (BB) (AA) (CC) Bolt /Plastic Washer (M6X25) Bolt /Plastic Washer (M6X35) Bolt /Flat Washer(M6X15) Qty: 18 Qty: 24 Qty: 8 (GG) (EE) Spacer Wrench Qty: 18 Qty: 1 10' side 12' side Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
  • Page 16 Plastic Washer O1//O2/O3 IMPORTANT: Fig.19 ● Make sure each screw installed on this step is attached to a spacer (GG). ● Wait at the end of the installation of the roof panels before tightening all screws. If you do not wait and tighten from the beginning, you will not be able to correctly install all the roof panels.
  • Page 17 Plastic Washer Fig.21 Fig.22 3-c. Place Top Panel Cover (Q) on the top of Top Bar (C) and then insert Top Panel Cover (Q) into the gap between Upper Central Connector (A) and Long Top Bar (C). Then attach Top Panel Cover (Q) to Long Top Bar (C) with Bolt/Plastic Washer M6*35 (CC).See Fig.21-22.

  • Page 18: Warning

    WARNING KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS TENT FABRIC. This tent meets the flammability requirements of CPAI-84. The fabric may burn if left in continuous contact with any flame source. The application of any foreign substance to the tent fabric may render the flame-resistant properties ineffective.

  • Page 19: Warranty Information

    Warranty Information This product component has a 1 year guarantee against defects in material and/or workmanship. If you have any questions regarding the warranty or spare / replacement parts, please call our toll-free number 1-800-847-7508 or email us at servicet@taipengchina.com NOTE: Please consider recycling all applicable packaging material.
  • Page 20 MADE IN CHINA Need Assistance? Visit us at: samsclub.com/membersmarkhelp Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
