Matrix IV EHT Metal
EM-Marine / HID ProxCard II / Atmel (T5557) 125kHz RFID Reader
with connection via iButton (1-Wire) / Wiegand-26/42 protocols
1. OVERVIEW
Matrix IV EHT Metal Reader is used in Access Control Systems (ACS). The reader transfers EM-
Marine, HID ProxCard II or Atmel (T5557) token codes into controller, via iButton (Dallas Touch
Memory) or Wiegand-26/Wiegand-42 protocols.
Special features:
- Reader can distinguish the original ID cards from their cloned copies. This allows to disable
transferring the numbers of cloned cards into controller, at the reader level. Such reading mode is
dubbed "anti-clone".
- Reader case is made of Silumin for increased anti-vandalism protection.
2. MOUNTING AND CONNECTION
The reader should be mounted on a flat surface at a place where proximity cards can directly
approach the reader (see Figure 1).
To mount the reader, perform the following steps:
- Unscrew the screw at the bottom of the case and remove the back lid.
- Apply the back lid to the wall, to mark mounting holes locations.
- Drill the holes.
- Screw the back lid to the wall.
- Mount the reader and attach it with the screw at the case bottom.
- Connect the wires as per Table 1.
- To select the protocol for data transfer to controller, connect DATA0 and DATA1 wires as per
Figure 2.
- Insulate all the wires junctions.
- Power on the reader and verify its proper operation by touching it with a card.
Notes:
1. Do not install the readers within 10 cm from one another.
2. To work at specified line distance to controller, please use a UTP cable (e.g. a CAT5e cable).
- When connecting via iButton, one wire of a twisted pair connects to GND and another to DATA0
terminals.
- When connecting via Wiegand, first twisted pair connects to GND and DATA0, and the second
to GND and DATA1 (See Figure 2).
58 mm

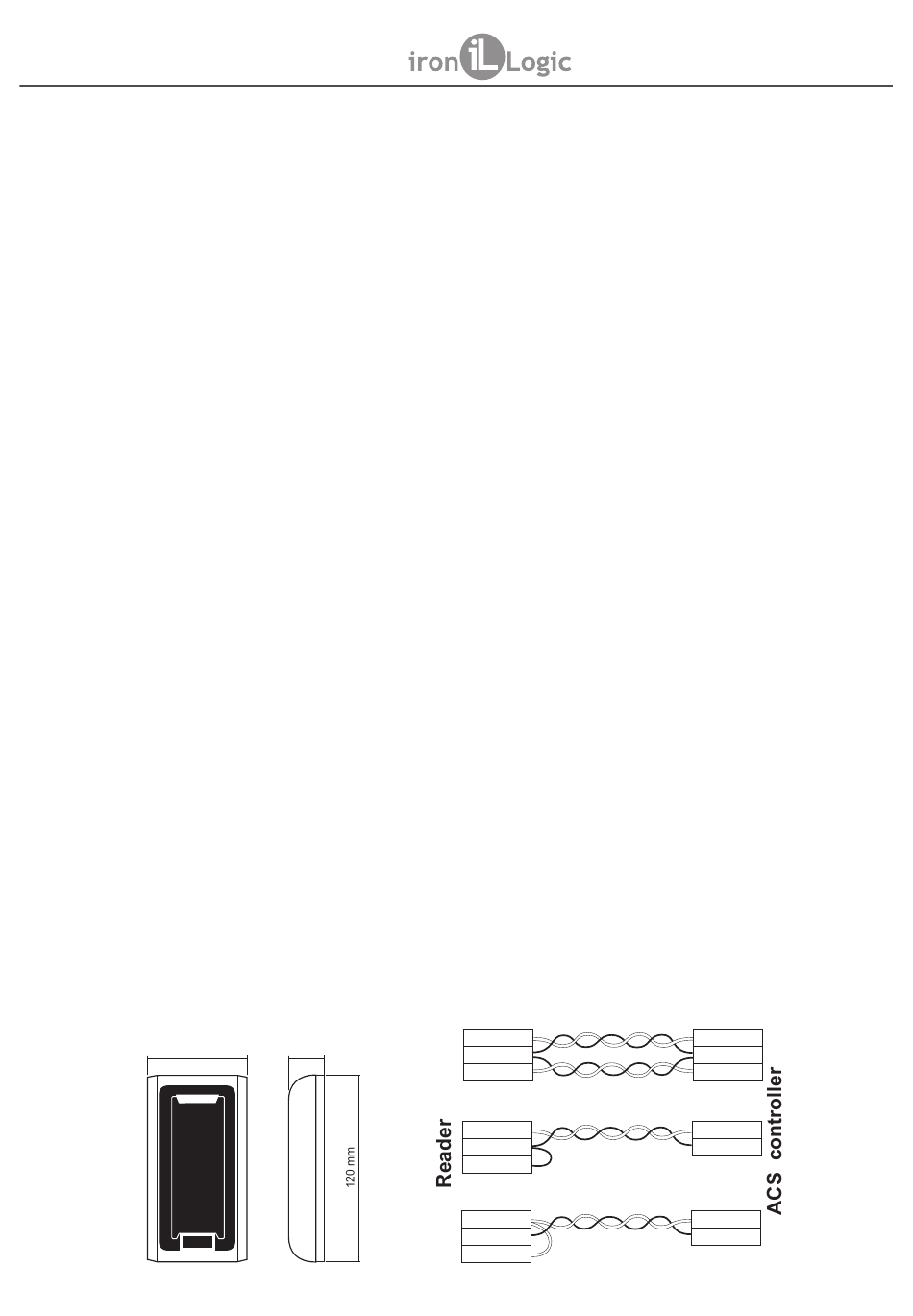

Figure 1. Device Dimensions
Matrix IV EHT Metal
User Manual
20 mm
.
Wiegand
D0
GND
D1
iButton (DS1990A emulation)
D0
GND
D1
iButton (One-time transmission)
D0
GND
D1
Figure 2. Choosing the transmission protocol
www.ironlogic.me
DATA0
GND
DATA1
iButton
GND
iButton
GND
.
page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ironLogic Matrix IV EHT Metal
Summary of Contents for ironLogic Matrix IV EHT Metal
- Page 1 (1-Wire) / Wiegand-26/42 protocols User Manual 1. OVERVIEW Matrix IV EHT Metal Reader is used in Access Control Systems (ACS). The reader transfers EM- Marine, HID ProxCard II or Atmel (T5557) token codes into controller, via iButton (Dallas Touch Memory) or Wiegand-26/Wiegand-42 protocols.
- Page 2 Matrix IV EHT Metal www.ironlogic.me Table 1. Connection to controller. Wire colour Wire Purpose +12 V Black GND - Common Green DАТА0 White DАТА1 Orange LED-G - Green LED external control Brown LED-R - Amber LED external control Yellow BEEP - Buzzer external control Blue SYNC –...
- Page 3 Matrix IV EHT Metal www.ironlogic.me 4. CONFIGURATION Before use, please review the factory defaults for parameters (see Table 2). If they need changing, or on the contrary, restore to factory defaults is needed, a reader setup must be performed. Please note that setup procedure will change all three configuration parameters, and not just one or two, even if they are already at desired values.
- Page 4 External indication control: .................Audial and Visual; Casing materials: ...................Silumin, Plastic; Dimensions, mm: ....................120 x 58 x 20; PACKAGE CONTENTS Matrix IV EHT Metal Reader: ....................1 7. OPERATING CONDITIONS Ambient temperature: -30…40°C. Humidity: ≤ 98% at 25°C. When operating under non-recommended conditions, device parameters can deviate from specified values.
- Page 5 Matrix IV EHT Metal www.ironlogic.me 9. CONTACTS Authorized representative in the European Union ICONTROL SIA Slokas iela 79A, LV-1007, Riga, Latvia E-mail: info@icontrol.lv Phone: +37124422922 www.ironlogic.me The symbol of crossed-throught waste bin on wheels means that the product must be disposed of at f separate collection point. This also applies to the product and all accessories marked with this symbol.
