MATRIX II K
ACS RFID Reader 125 kHz & standalone controller
1. OVERVIEW

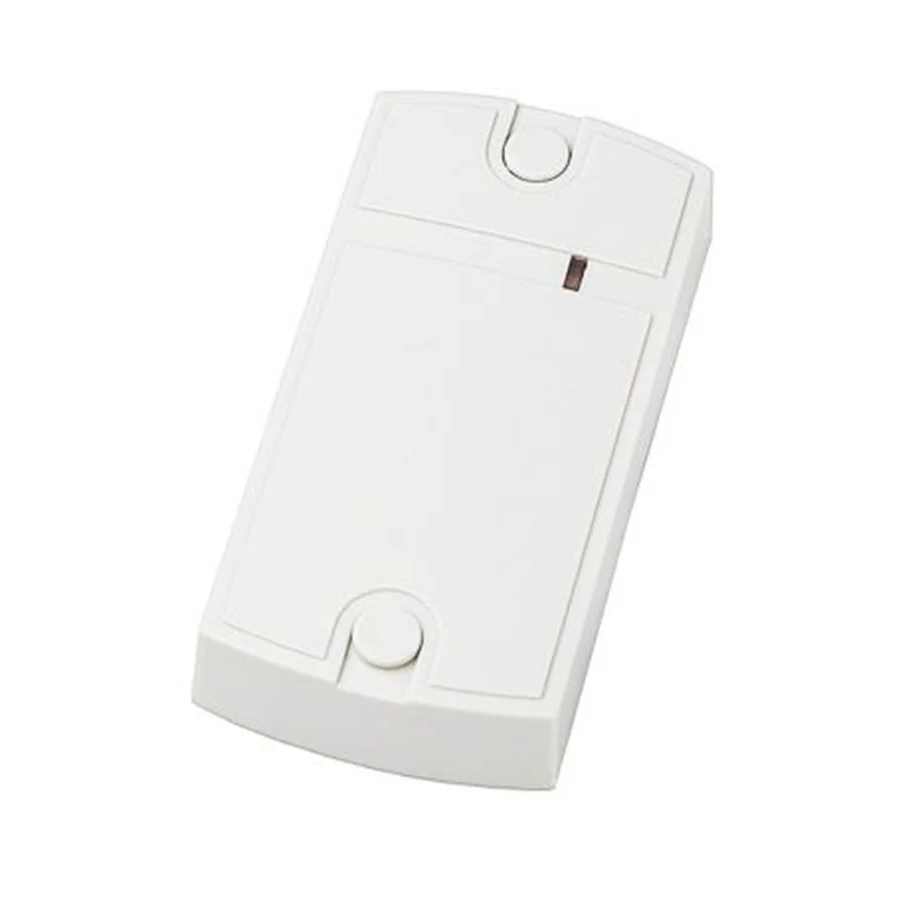

Matrix II K reader comprises the reader and controller in one case, and is used in Access Control
Systems (ACS) to operate electromagnetic and electromechanical locks by means of EM-Marine
contactless proximity cards.
The following equipment can be connected to a Matrix II K reader:
-
External EM-Marine proximity card reader;
-
Electromagnetic or electromechanical lock;
-
Lock release button;
-
External buzzer;
-
External LED;
-
Door sensor;
-
iButton (Dallas Touch Memory) key probe.
2. SPECIFICATIONS
-
Working frequency: 125 kHz
-
Keys/key fobs standard: EM-Marine
-
Maximum number of keys/cards: 1364
-
Built-in EEPROM: Present
-
Reading distance: 2...8 cm
-
Power supply operating voltage: 12 V DC
-
Maximum operating current: 45 mA
-
Power output for lock: Field-effect-transistor.
-
Maximum switching current for power output: 5 A
-
Jumper for lock type selection: Yes, Electromechanical or electromagnetic positions
-
Lock release duration timer: 0...220 s (factory default: 3 s)
-
Audio-visual indication: Buzzer, bi-coloured LED
-
Buzzer control: On/Off toggle
-
Dimensions, mm: 85 x 44 x 18
-
Case material: ABS Plastic
Matrix II K
User Manual

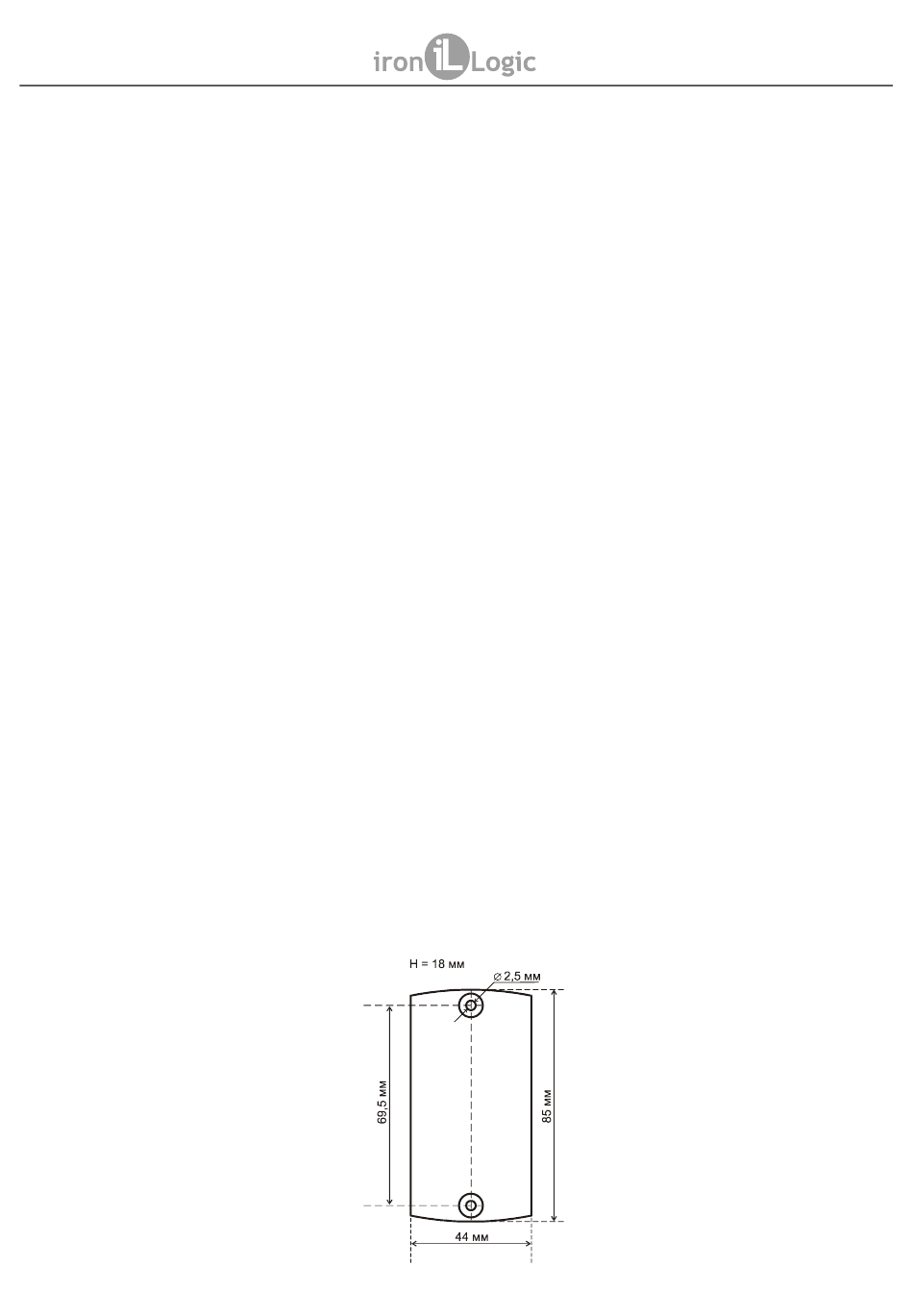

Figure 1: Reader Dimensions
www.ironlogic.me
page 1
Advertisement
Table of Contents
Related Manuals for ironLogic Matrix II
Summary of Contents for ironLogic Matrix II
- Page 1 ACS RFID Reader 125 kHz & standalone controller User Manual 1. OVERVIEW Matrix II K reader comprises the reader and controller in one case, and is used in Access Control Systems (ACS) to operate electromagnetic and electromechanical locks by means of EM-Marine contactless proximity cards.
- Page 2 Note: The Blocking cards open the lock when they are being taken away from the reader. - Initially, the memory of the controller part of a Matrix II K device is empty. To operate the controller, first record a Master card into controller memory; with this Master card the device will be programmed.
- Page 3 Simple one-door ACS solution variants: A. Entry and Exit by EM-Marine cards: - On entry: Matrix II reader (or CP-Z reader where wiring is hidden) see Fig. 4; - On exit: Matrix II K reader/controller + power supply + (electromagnetic lock OR electromechanical lock/latch).
- Page 4 MATRIX II K www.ironlogic.me Table 1. Programming Modes Modes Activation Legend Programming using Master keys 1…5 – # of touches 1. Add Normal and Blocking Cards * UPPERCASE letter – 2. Add Master Cards 1m, 1M Long touch (hold card for 3.
- Page 5 MATRIX II K www.ironlogic.me Mode 3. Erase Single Normal and Blocking Cards with a Master Card (2m, 1M) Touch the reader twice with a Master card (short touches). On first touch, the controller emits a short beep, acknowledging Master card recognition. On second touch, the controller emits two short beeps, acknowledging the second Master card touch in programming mode.
- Page 6 Memory) probe needs to be connected to the reader (see Fig. 6). Please erase the Matrix II K controller's memory first (either by a Master card or by a jumper). Next, reboot the device (turn it off and back on). Initial power-up scenario will run. Touch and hold the DS1996L at the probe.
-
Page 7: Mounting And Connecting
- Locked to Unlocked series of short beeps. The managed lock should be connected to LOCK and +12V terminals on the Matrix II K reader. Notice: Do NOT install the jumper into a position not described above. It can lead to device failure. - Page 8 MATRIX II K www.ironlogic.me ZUMM +12V GROUND EXIT DATA 0 DATA 1 LOCK LED-G LED-R +12V BEEP DOOR Matrix II К Matrix II Figure 4. Connecting an external reader. ZUMM External buzzer EXIT Lock button External LED LOCK +12V DOOR...
-
Page 9: Operating Conditions
Humidity: Up to 80% at 25°C. Device specifications may differ from described in this manual when operating under non-recommended conditions. 8. PACKAGE CONTENTS - Matrix II K Device: ..1 - Jumper: ....1 - Protective tabs: ..2 - Screws 3*30: ....2 - Wall plugs: ....2... - Page 10 MATRIX II K www.ironlogic.me 10. IRONLOGIC CONTACTS Headquarters: RF Enabled ID Limited 34 Ely Place, London, EC1N 6TD, UK E-mail: marketing@rfenabled.com Development and production: AVS LLC 7, Bobruiskaya street, Saint-Petersburg, 195009, Russian Federation E-mail: marketing@rfenabled.com Phone: +78122411853; +78125421185 www.ironlogic.ru Authorized representative in the European Union:...
